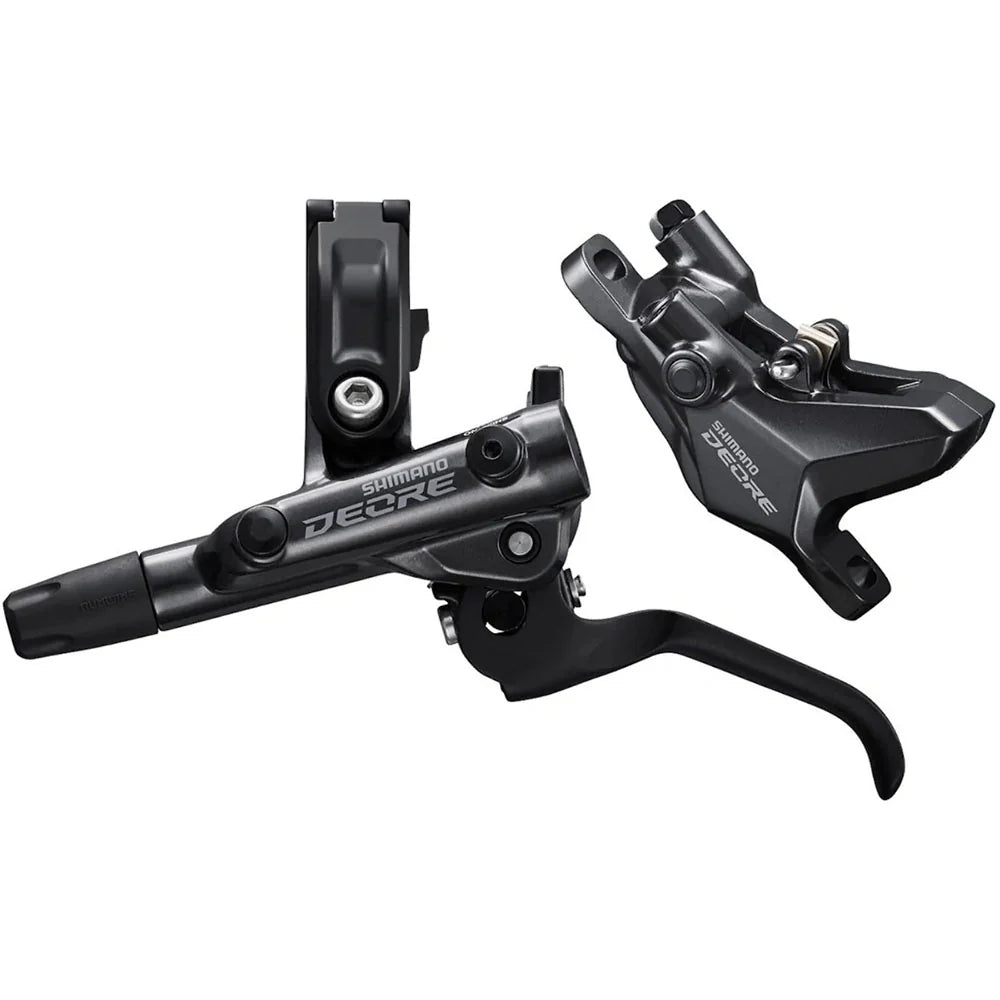

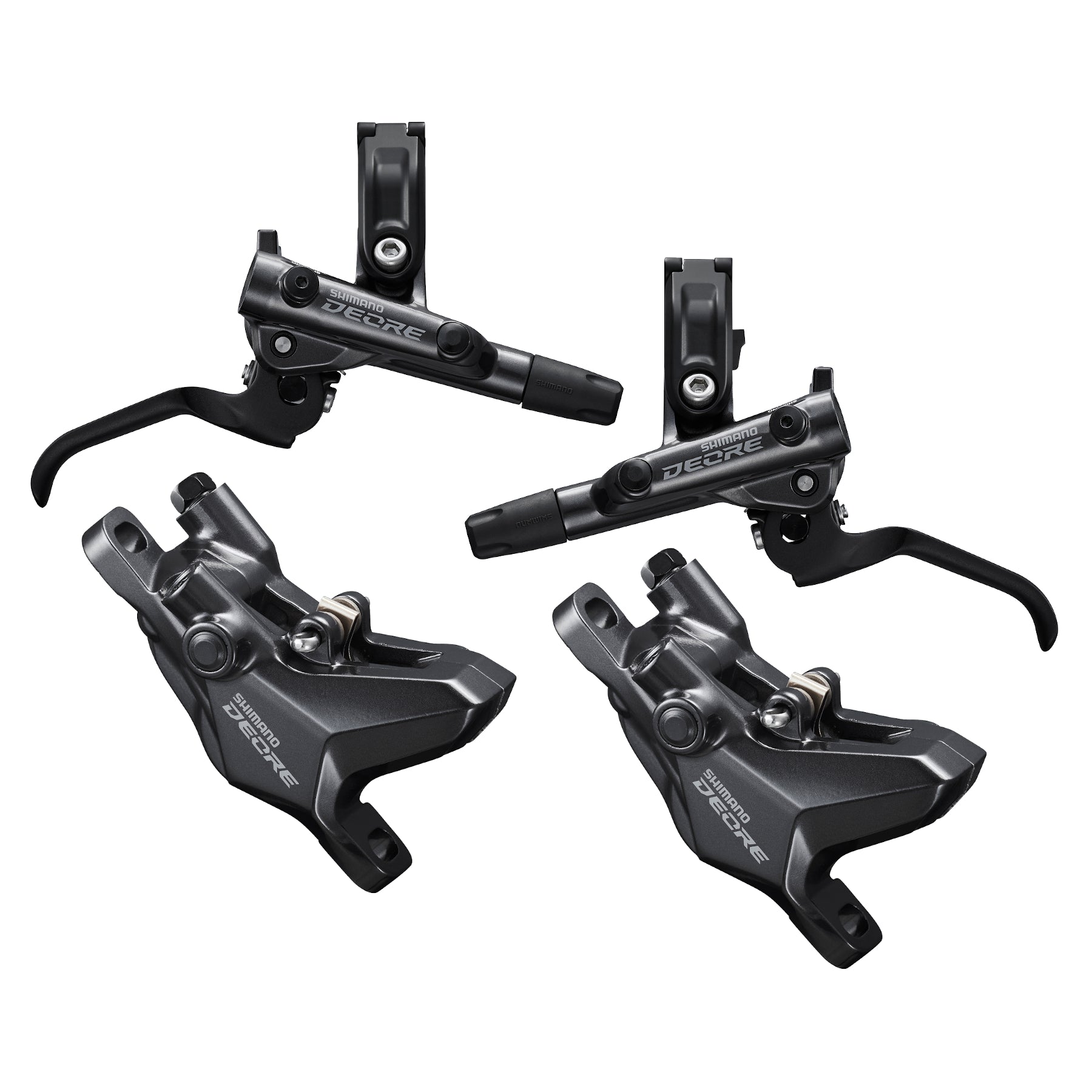

Shimano Deore M6100 XC 2 Piston Brakeset

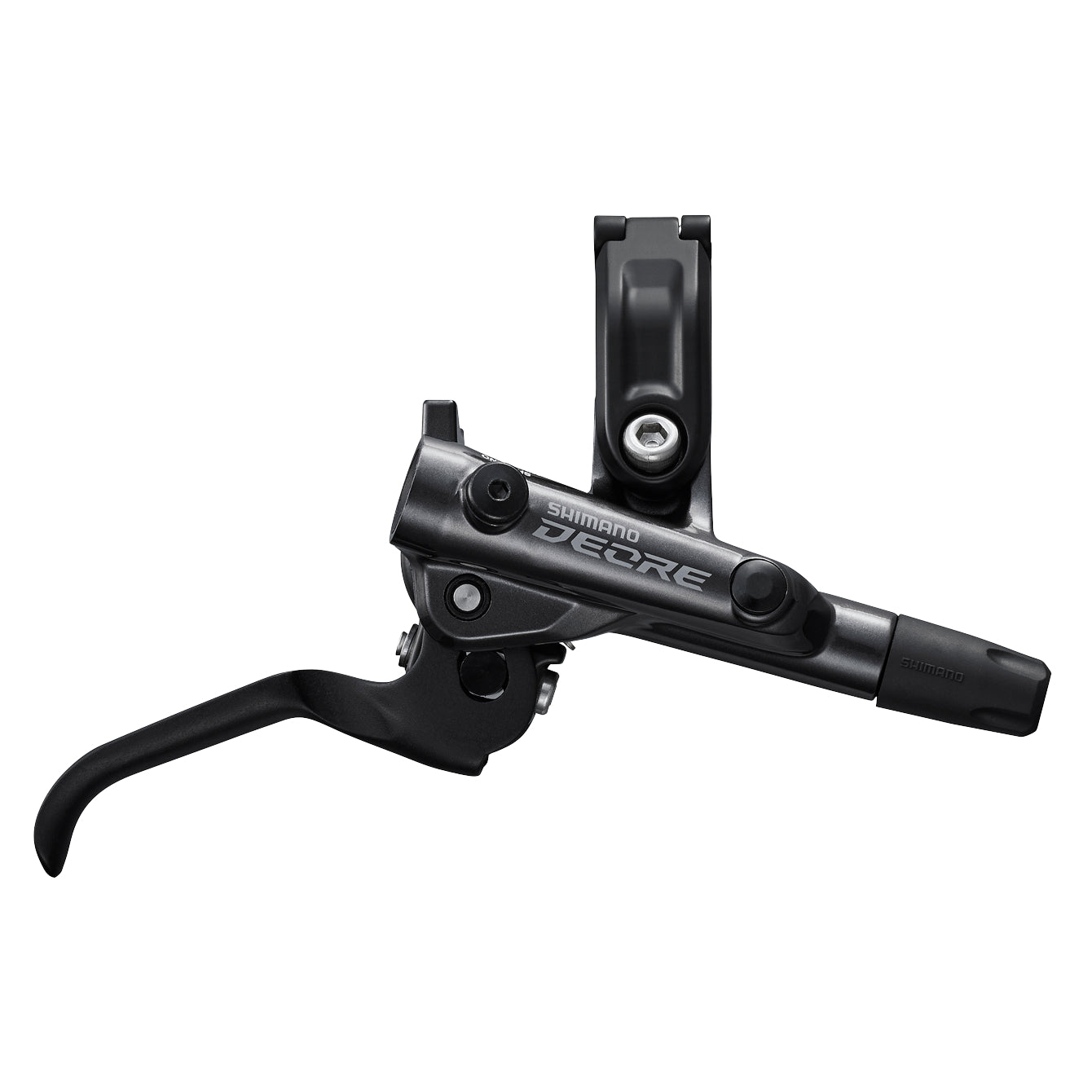

Shimano Deore BL-M6100 brake lever

The hydraulic Deore BL-M6100 brake lever is characterized by Shimano's SERVOWAVE technology which improves the lever's modulation ability. Because the brake lever absorbs a lot of braking distance right at the start of its movement, the brake pads have disc contact more quickly and it remains more lever travel to adjust braking force. That is why SERVO WAVE brake systems are characterized by faster response, higher performance and shorter idle travel.

The 2-finger brake lever's construction is inspired by XTR, Deore XT and SLX series, so the clamp is not mounted parallel, but with an angle to the handlebar creating a second contact point which provides significantly increased stiffness. For individual customizability, the lever is equipped with an integrated, tool-based reach adjustment option. Thanks to the I-Spec EV design the Deore SL-M6100-I shifting levers can be mounted directly to the brake lever.

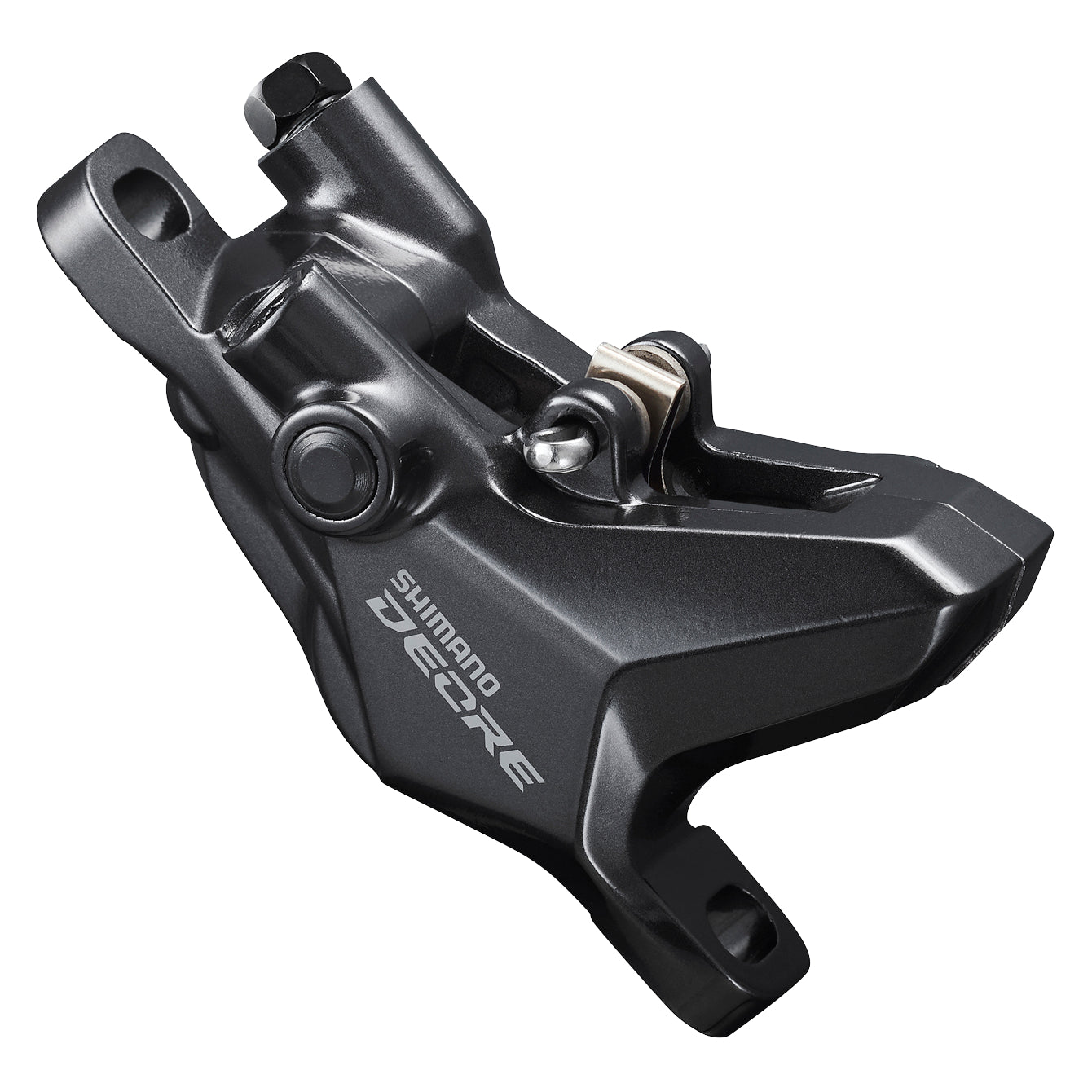

Shimano Deore BR-M6100 disc brake caliper

With its 2-piston construction, the Shimano Deore BR-M6100 Postmount brake caliper is perfect for Cross Country use. The G03S Resin brake pads in combination with the light caliper guarantee extremely good deceleration.

Content of delivery:

hydraulic disc brake set:

• BL-M6100 brake lever
• BR-M6100 caliper incl. brake pads
• SM-BH90-SS brake hose

Material:

lever: aluminium (anodized)
master cylinder, caliper: aluminium (painted)
pistons: resin
hardware: stainless steel, steel

Compatibility:

• brake pads: G03S Resin, G04S Metall, J03A Resin (Ice-Tech)
• discs: SM-RT54, SM-RT56, SM-RT64, SM-RT66 / 140-203 mm (not included)
