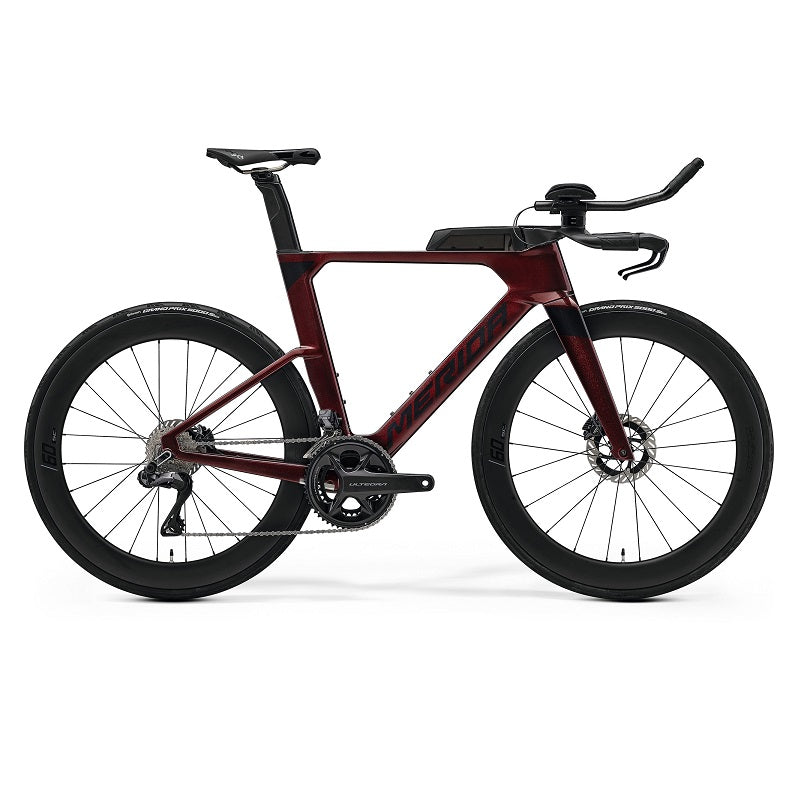

Merida TT Limited Triathlon Bike (2025)
Merida TT Limited Triathlon Bike (2025)
Couldn't load pickup availability
Featuring a high-end CF5 weight-optimised carbon frame heavily inspired by the World Tour proven TIME WARP TT, the TIME WARP TRI LIMITED offers top aerodynamic performance at a more wallet-friendly price point.
- Super-light CF5 carbon triathlon frame and fork
- Vision Metron TC 55 carbon wheelset
- Hydraulic Shimano Dura-Ace disc brakes with tri-specific levers
- Vision Metron S-BEND height and position adjustable tri-specific armrests
- Full cable integration and additional top tube storage bento box
- Shimano Ultegra 12-speed Di2 drivetrain with tri-specific shifting options
FRAME
TIME-WARP TRI CF5 IV
material: carbon
700x30C max. wheelsize
100x12/ 142x12mm axle standard
Pressfit 86,5
FORK
MERIDA TIME-WARP TRI CF5 IV disc
material: carbon
700x30C max. wheelsize
BRAKES
Shimano Dura Ace
Disc
ST-R9180
ROTORS
Shimano CL900
160mm
140mm
BRAKE LEVER
Shimano Dura Ace
HEADSET
MERIDA TIME WARP TT
HANDLEBAR
MERIDA Metron TT
material: carbon
HANDLEBAR STEM
MERIDA Metron TT
material: carbon
-17°° stem angle *
GRIPS
MERIDA ROAD EXPERT
DERAILLEUR (F)
Shimano Ultegra Di2
DERAILLEUR (R)
Shimano Ultegra Di2
SHIFTERS
Shimano ST-R9180
SEAT POST
MERIDA TEAM TT II
Aero shape
Carbon
SEAT CLAMP
TIME WARP TT insert
SADDLE
Prologo Zero TRI PAS Tirox
CHAIN
Shimano M6100-12
CRANK
Shimano Ultegra
52-36 teeth
165 mm-XS, 170 mm-S/M, 172,5 mm-L
FREEWHEEL
Shimano Ultegra R8101
11-30 teeth
12 speed
BOTTOM BRACKET
Shimano SM-BB71-41B
WHEELSET
Vision SC 60 i23 Disc brake
100x12mm width front hub
142x12mm width rear hub
23mm inner width
60mm height
Centerlock
material: carbon
TYRE FRONT
Continental Grand Prix 5000S TR
700x28C
fold
tubeless ready
TYRE REAR
Continental Grand Prix 5000S TR
700x28C
fold
tubeless ready
AXLES
MERIDA EXPERT SL
MAX. WEIGHT
120 kg
