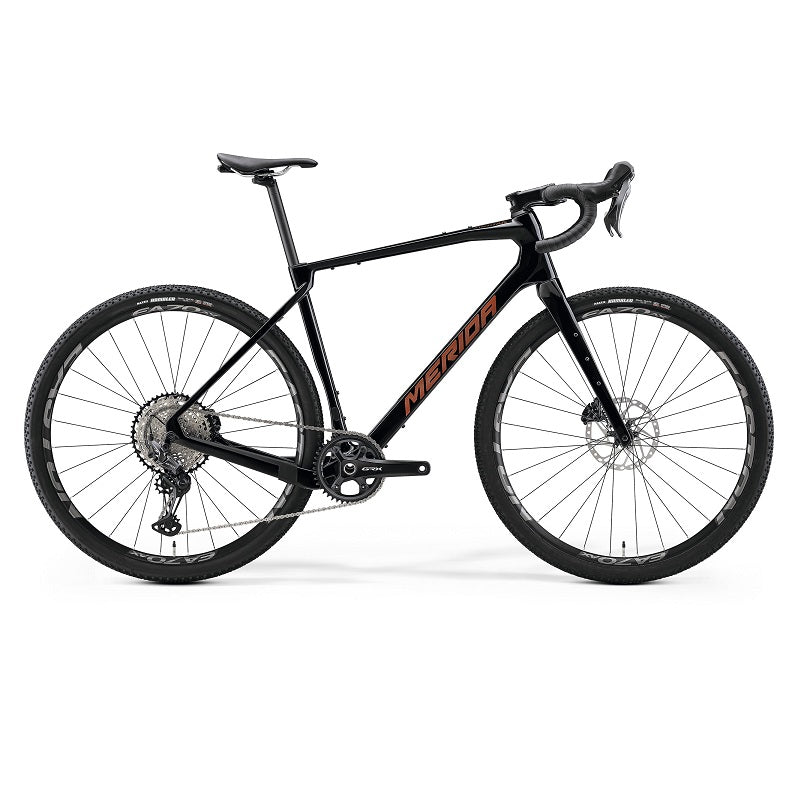

Merida Silex 7000 Gravel Bike
Merida Silex 7000 Gravel Bike
FRAME
SILEX CF2 II
material: carbon
700x45C max. wheelsize
100x12/142x12 mm axle standard
BSA bottom bracket standard
FORK
MERIDA SILEX II CF2
Tapered
material: carbon
700x47C max. wheelsize
BRAKES
Shimano GRX820
Hydraulic disc
ROTORS Shimano RT64
180 mm
BRAKE LEVER
Shimano GRX820
HEADSET
MERIDA 8158
HANDLEBAR
MERIDA EXPERT GRII
material: aluminium
400 mm (XS-S) , 420 mm (M) , 440 mm (L/XL)
HANDLEBAR STEM
MERIDA TEAM CC III
material: aluminium
31.8 mm diameter
-6° stem angle
incl. MERIDA SMART MOUNT
80 mm all sizes
GRIP
MERIDA ROAD Expert
DERAILLEUR (R)
Shimano GRX822
SHIFTERS
Shimano GRX820
SEAT POST
MERIDA EXPERT CC
27.2 mm diameter
15 mm setback
material: Carbon
SEAT CLAMP
MERIDA EXPERT
SADDLE
MERIDA EXPERT SL
V-mount
incl. MERIDA minitool
CHAIN
Shimano M7100
CRANK
Shimano GRX820
42 teeth
170 mm-XS/S, 172,5 mm-M, 175 mm-L/XL
FREEWHEEL
Shimano CS-M7100
10-51 teeth
12 speed
BOTTOM BRACKET
Shimano SM-BBR60
WHEELSET
Easton EA70 AX
100x12 mm width front hub
142x12 mm width rear hub *24 mm inner width
20 mm height
Centerlock
material: aluminium
TYRE FRONT
Maxxis Rambler
700x45C
fold
TR
EXO
TYRE REAR
Maxxis Rambler
700x45C
fold
TR
EXO
AXLES
MERIDA EXPERT TR
including removable lever
6/4 mm allen key
APPROX. WEIGHT
9.5 kg
MAX. WEIGHT
120 kg
