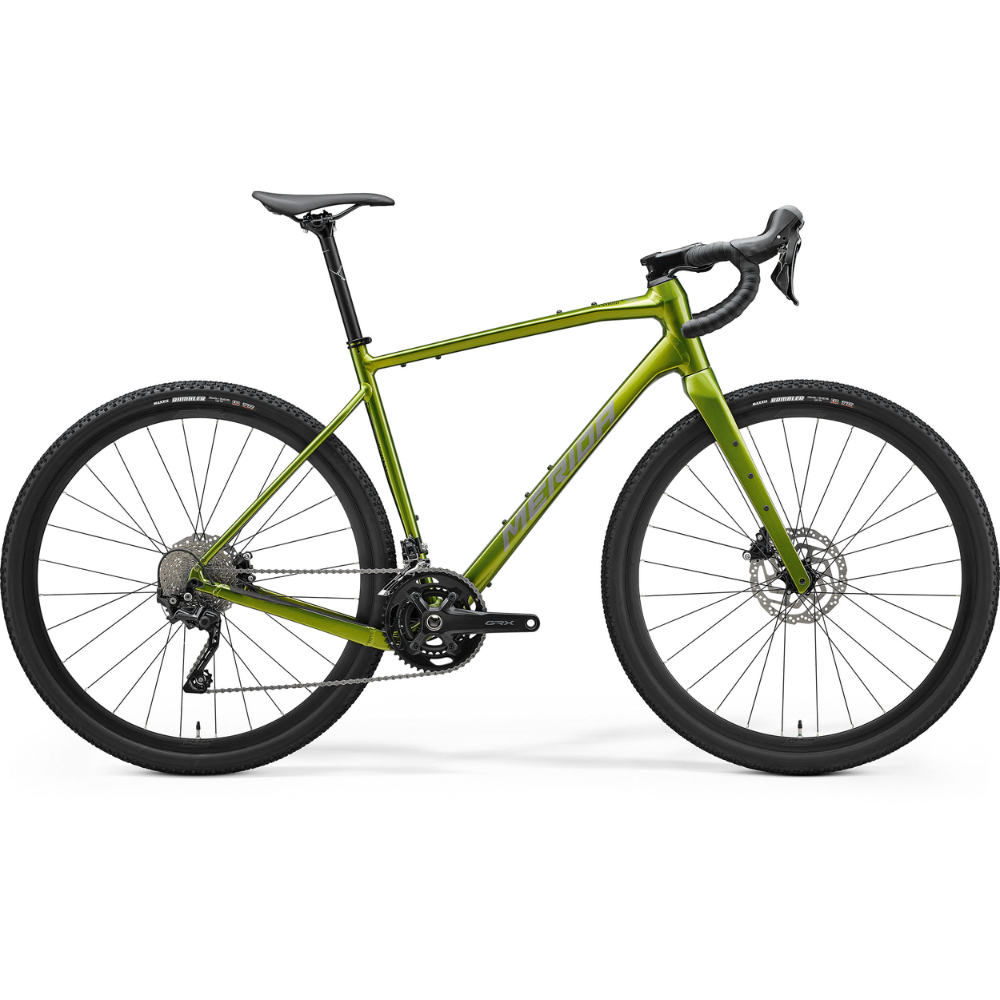

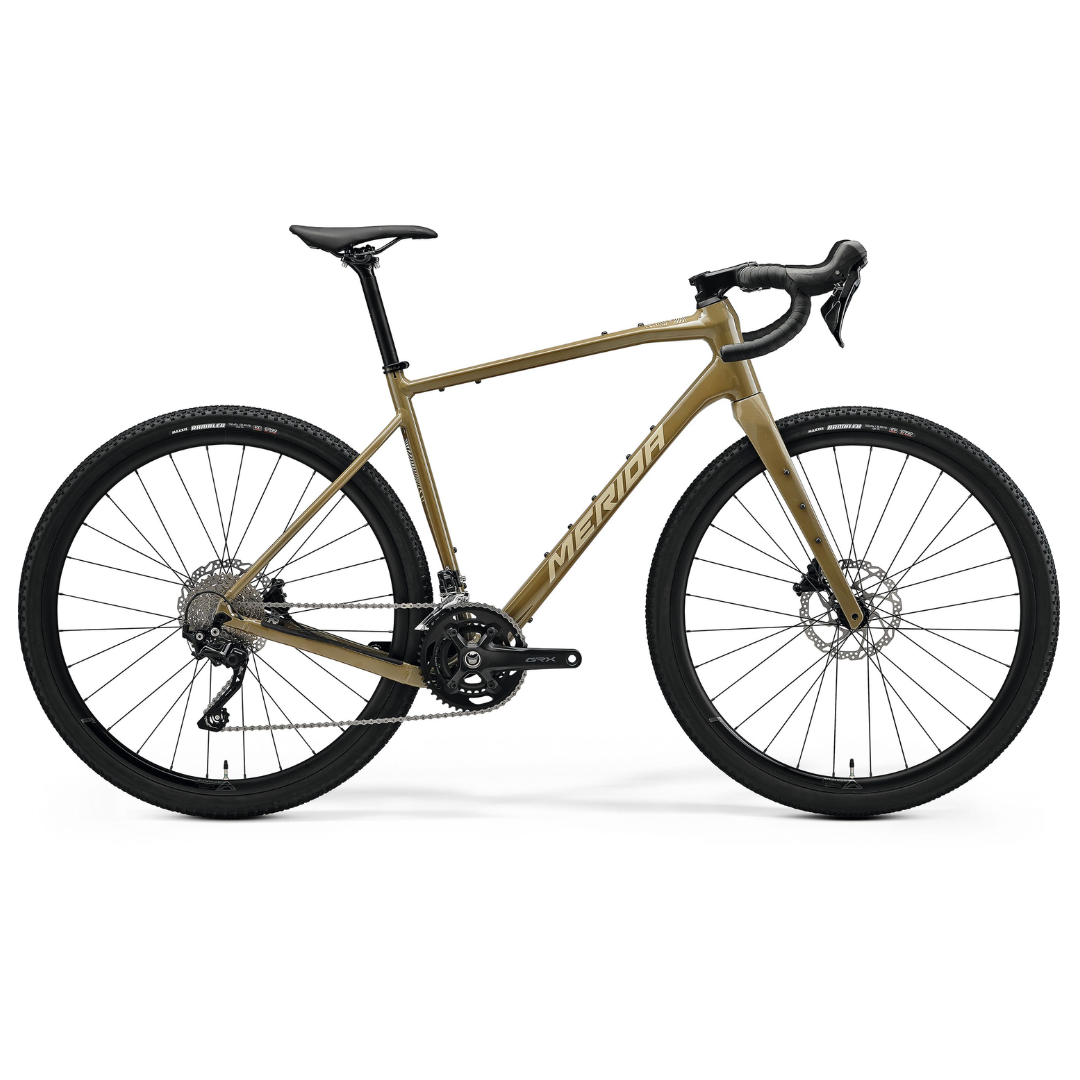

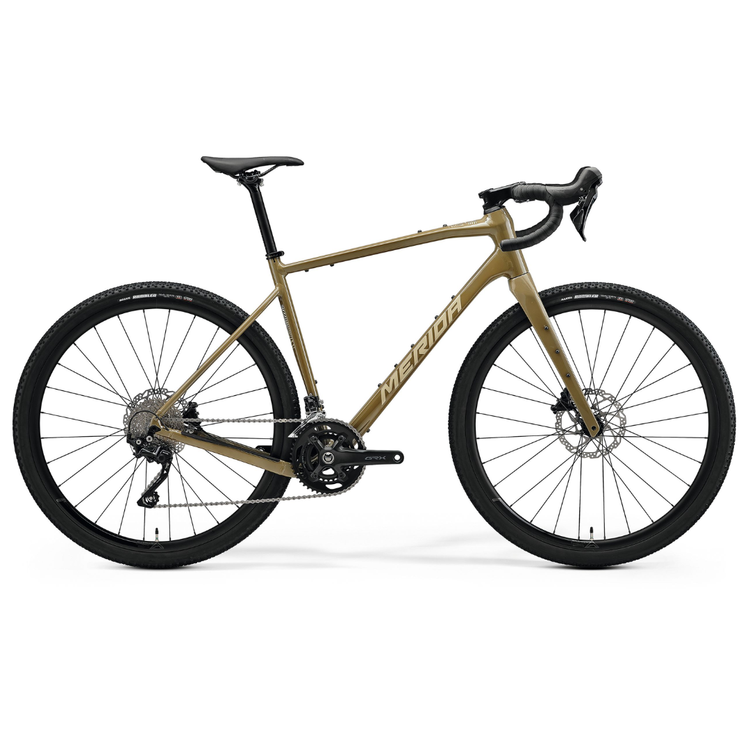

Merida Silex 400 Gravel Bike

FRAME
SILEX LITE II

FORK
MERIDA SILEX II CF2
Tapered
material: carbon
700x47C max. wheelsize

BRAKES
Shimano GRX400
Hydraulic disc

ROTORS
Shimano RT10
180 mm
160 mm

BRAKE LEVER
Shimano GRX400

HEADSET
MERIDA 8158

HANDLEBAR
MERIDA EXPERT GRII

HANDLEBAR STEM
MERIDA TEAM CC III

GRIP
MERIDA ROAD Expert

DERAILLEUR (F)
Shimano GRX400

DERAILLEUR (R)
Shimano GRX400

SHIFTERS
Shimano GRX400

SEAT POST
MERIDA COMP CC
material: aluminium
27.2 mm diameter
5 mm setback

SEAT CLAMP
MERIDA EXPERT

SADDLE
MERIDA COMP SL

CHAIN
KMC X10

CRANK
Shimano GRX600
46-30 teeth
170 mm-XS/S, 172,5 mm-M, 175 mm-L/XL

FREEWHEEL
Shimano CS-HG50
11-36 teeth
10 speed

HUBS
VP CLK170F / VP CLK270R
100x12 mm width front hub
32 spoke holes
centerlock
142x12 mm width rear hub
32 spoke holes
centerlock

RIM
MERIDA EXPERT SL II
23 mm inner width
25 mm height
material: aluminium
Tubeless ready (tubeless)

TYRE FRONT
Maxxis Rambler
700x45C
fold
TR
EXO

TYRE REAR
Maxxis Rambler
700x45C
fold
TR
EXO

AXLES
MERIDA EXPERT TR
including removable lever
6/4 mm allen key

SPOKES
Black stainless

APPROX. WEIGHT
10.7 kg

MAX. WEIGHT
120 kg
