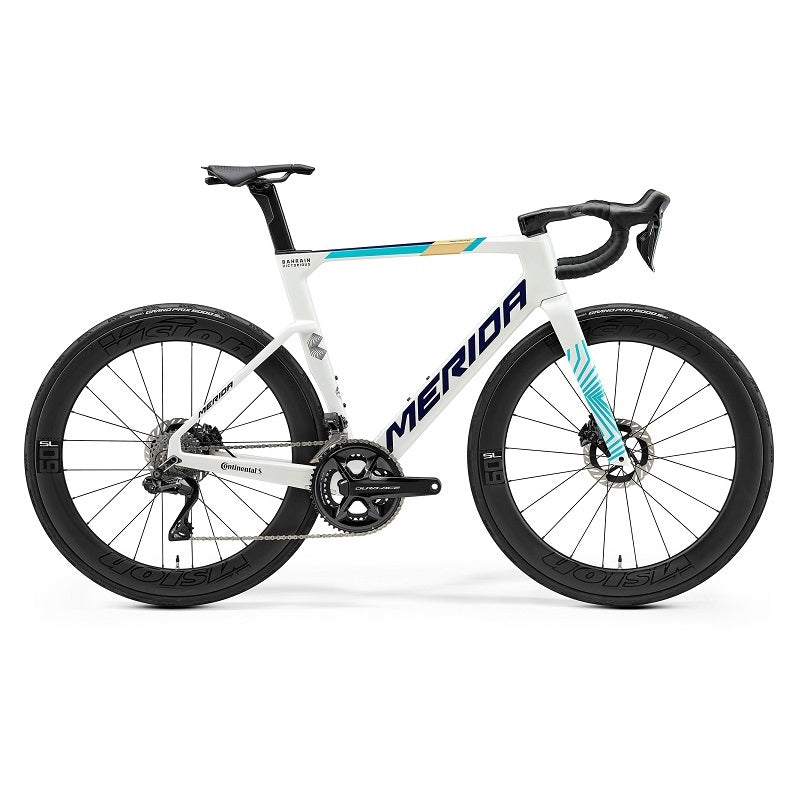

Merida Reacto Team (2025)

FRAME
REACTO CF5 IV
material: carbon
700x30C max. wheelsize
100x12/ 142x12mm axle standard
BB86,5 bottom bracket standard

FORK
REACTO CF5 IV DISC
material: carbon
700x30C max. wheelsize

BRAKES
Shimano Dura Ace
Hydraulic disc

ROTORS
Shimano CL900
160mm

BRAKE LEVER
Shimano Dura Ace disc

HEADSET
FSA ACR

HANDLEBAR
Vision Metron 5D ACR EVO
material: carbon
380mm (3XS-XXS-XS-S)
400mm (M-L-XL)

HANDLEBAR STEM
Vision Metron 5D ACR EVO
material: carbon
90 mm (3XS/XXS/XS), 100 mm (S), 110 mm (M/L), 120 mm (XL)

GRIP
Prologo One-Touch

DERAILLEUR (F)
Shimano Dura Ace Di2

DERAILLEUR (R)
Shimano Dura Ace Di2

SHIFTERS
Shimano Dura Ace disc Di2

SEAT POST
MERIDA TEAM CW
Aero shape
15mm setback
Carbon

SEAT CLAMP
MERIDA REACTO Aero
SADDLE Prologo Scratch M5
V-mount adapter
incl. MERIDA minitool

CHAIN
Shimano M9100-12

CRANK
Shimano Dura Ace
52-36 teeth
Power Meter
165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm (XL)

FREEWHEEL
Shimano Dura-Ace R9200
11-30 teeth
12 speed

BOTTOM BRACKET
Shimano SM-BB72-41B
Pressfit 86.5

WHEELSET
Vision Metron 60 SL Clincher TL Disc
100x12mm width front hub
142x12mm width rear hub
21mm inner width
60mm height
Centerlock
material: carbon
Tubeless ready (tubeless tape and valves not included)

TYRE FRONT
Continental Grand Prix 5000S TR
700x28C
fold
tubeless ready

TYRE REAR
Continental Grand Prix 5000S TR
700x28C
fold
tubeless ready

AXLES
MERIDA EXPERT SL

APPROX. WEIGHT
7.6 kg

MAX. WEIGHT
120 kg
