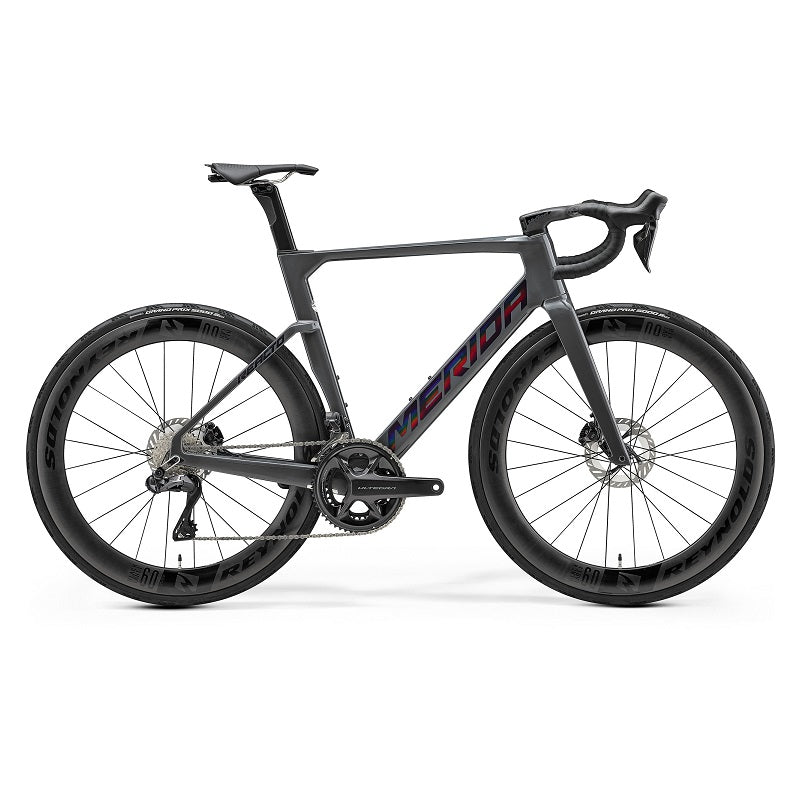

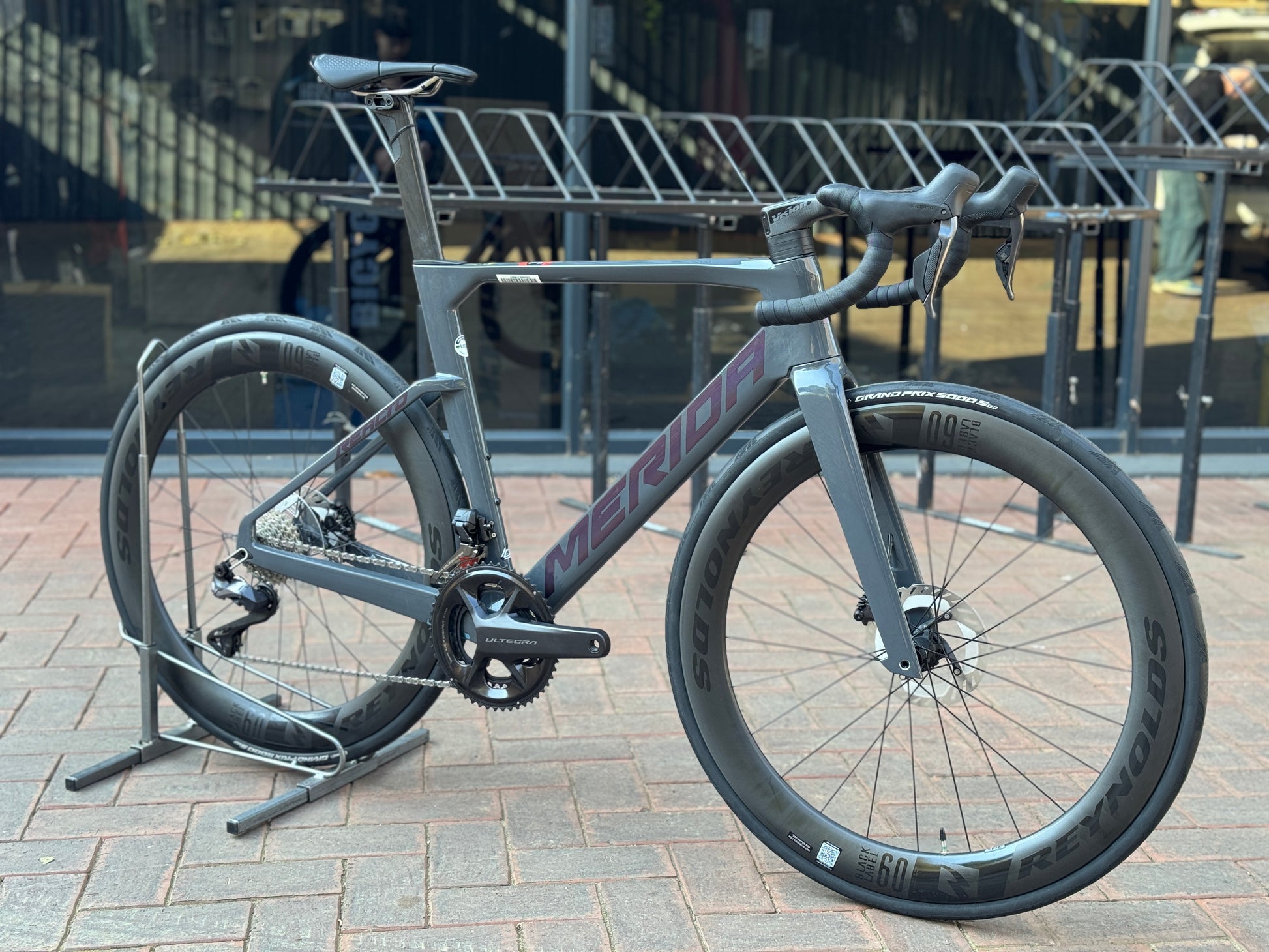

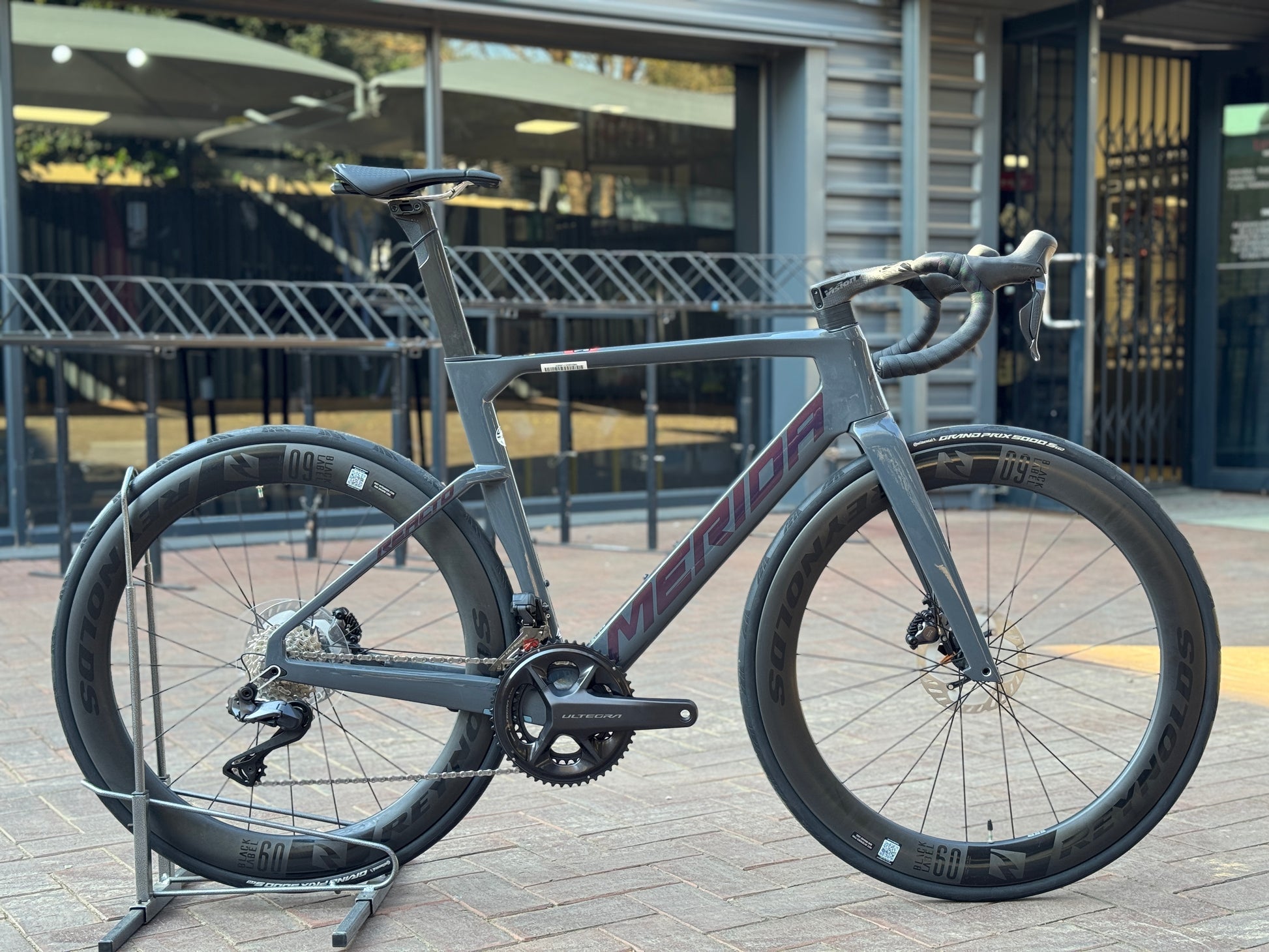

Merida Reacto 9000 (2025)

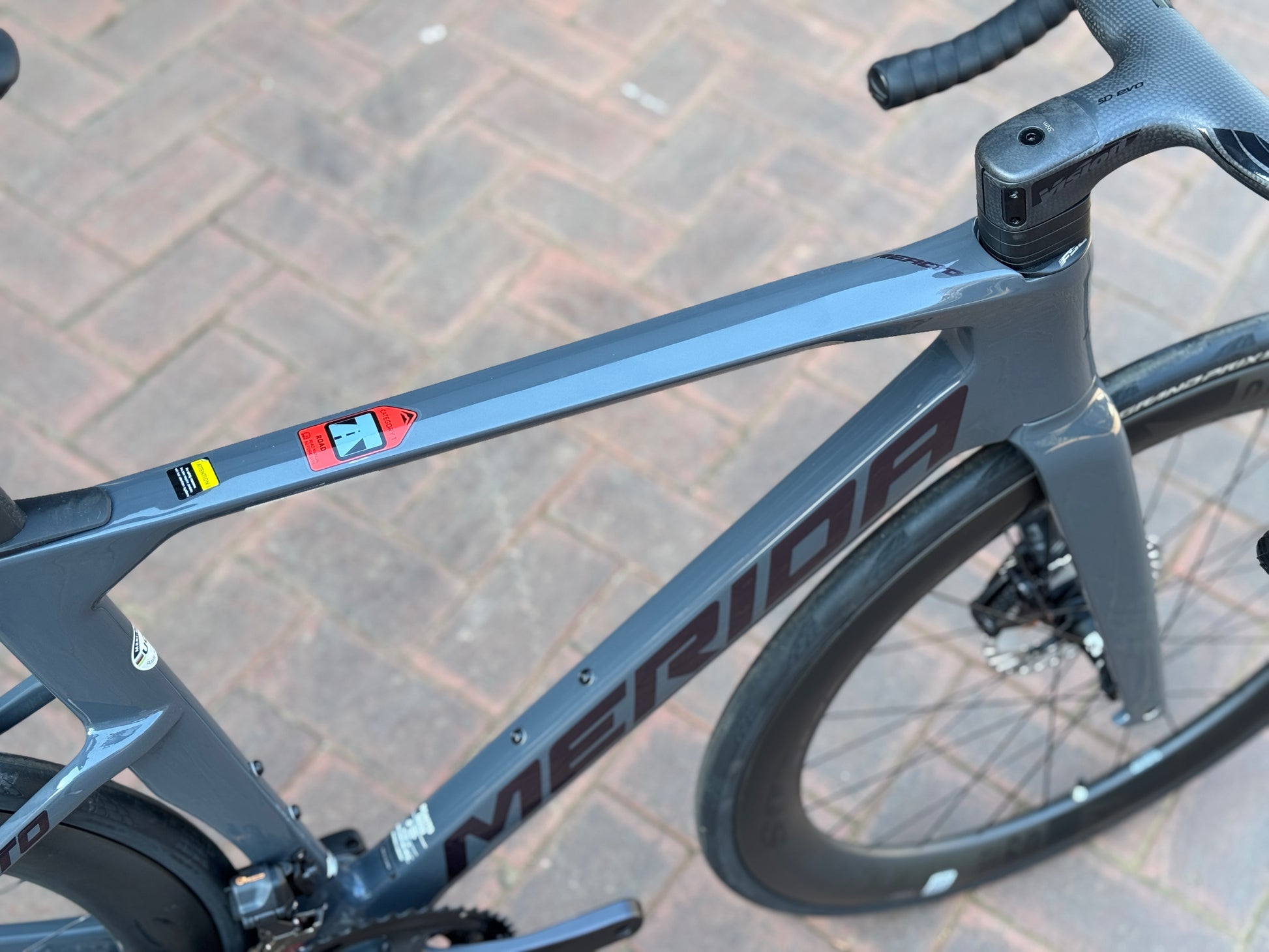

FRAME
REACTO CF5 IV
material: carbon
700x30C max. wheelsize
100x12/ 142x12mm axle standard
BB86,5 bottom bracket standard

FORK
REACTO CF5 IV DISC
material: carbon
700x30C max. wheelsize

BRAKES
Shimano Ultegra
Hydraulic disc

ROTORS
Shimano CL800
160mm

BRAKE LEVER
Shimano Ultegra

HEADSET
FSA ACR

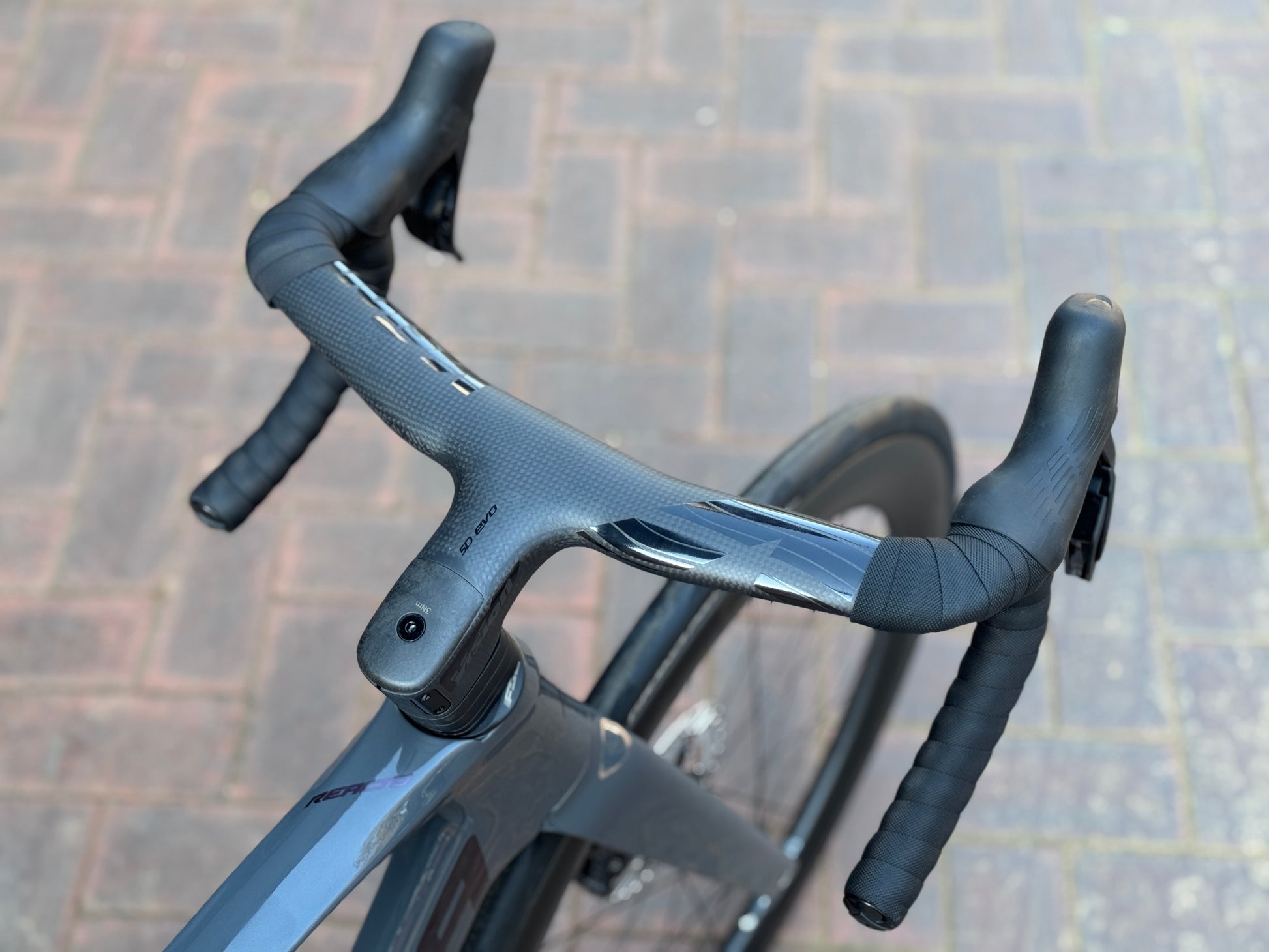

HANDLEBAR
Vision Metron 5D ACR EVO
material: carbon
380mm (3XS-XXS-XS-S)
400mm (M-L-XL)

HANDLEBAR STEM
Vision Metron 5D ACR EVO
material: carbon
90 mm (3XS/XXS/XS), 100 mm (S), 110 mm (M/L), 120 mm (XL)

GRIP
MERIDA ROAD Expert

DERAILLEUR (F)
Shimano Ultegra Di2

DERAILLEUR (R)
Shimano Ultegra Di2

SHIFTERS
Shimano Ultegra disc Di2

SEAT POST
MERIDA TEAM CW
Aero shape
15mm setback
Carbon

SEAT CLAMP
MERIDA REACTO Aero

SADDLE
Prologo Scratch M5
V-mount adapter
incl. MERIDA minitool

CHAIN
Shimano M8100

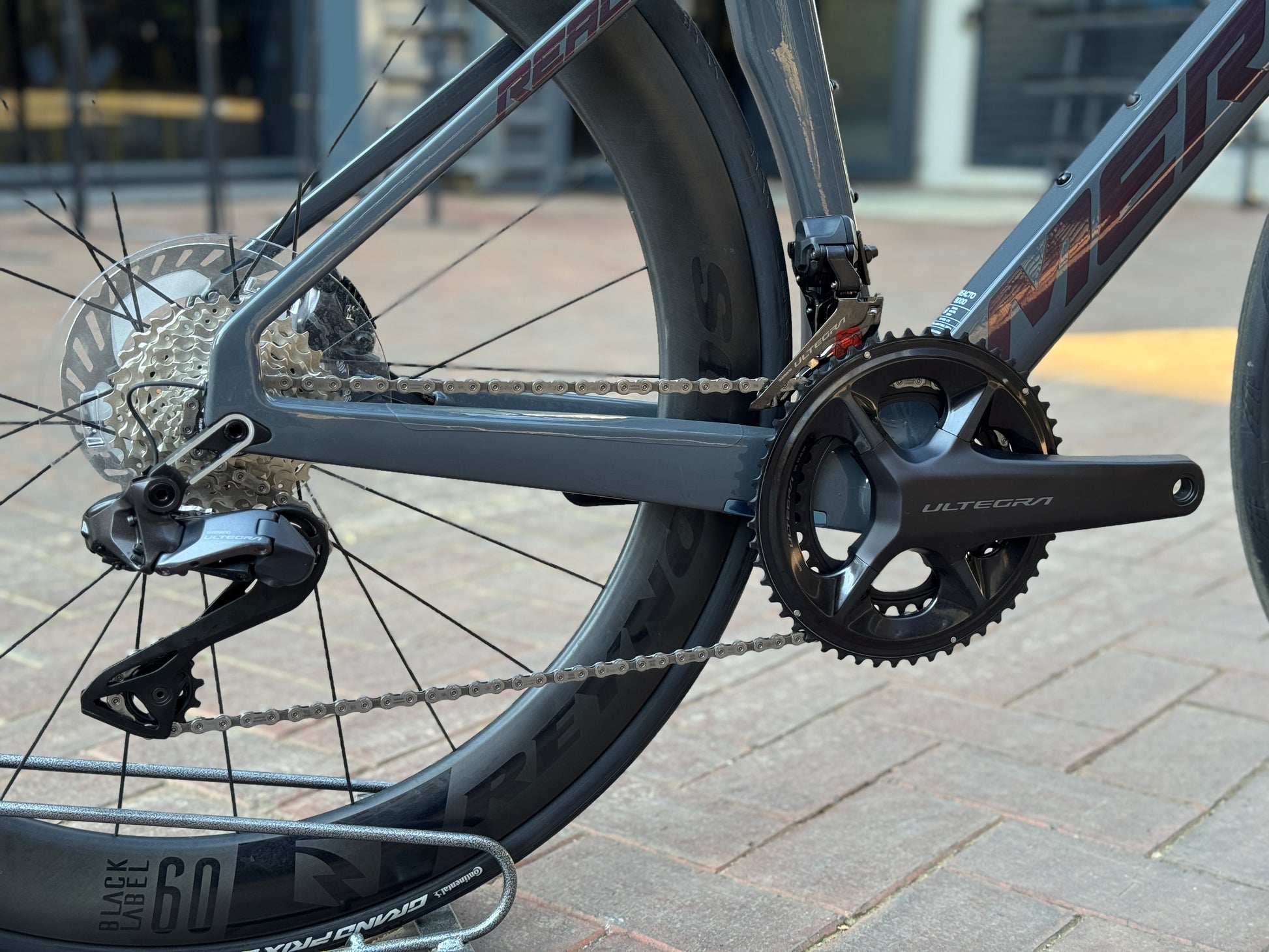

CRANK
Shimano Ultegra
52-36 teeth
165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm (XL)

FREEWHEEL
Shimano Ultegra R8100
11-30 teeth
12 speed

BOTTOM BRACKET
Shimano SM-BB72-41B
Pressfit 86.5

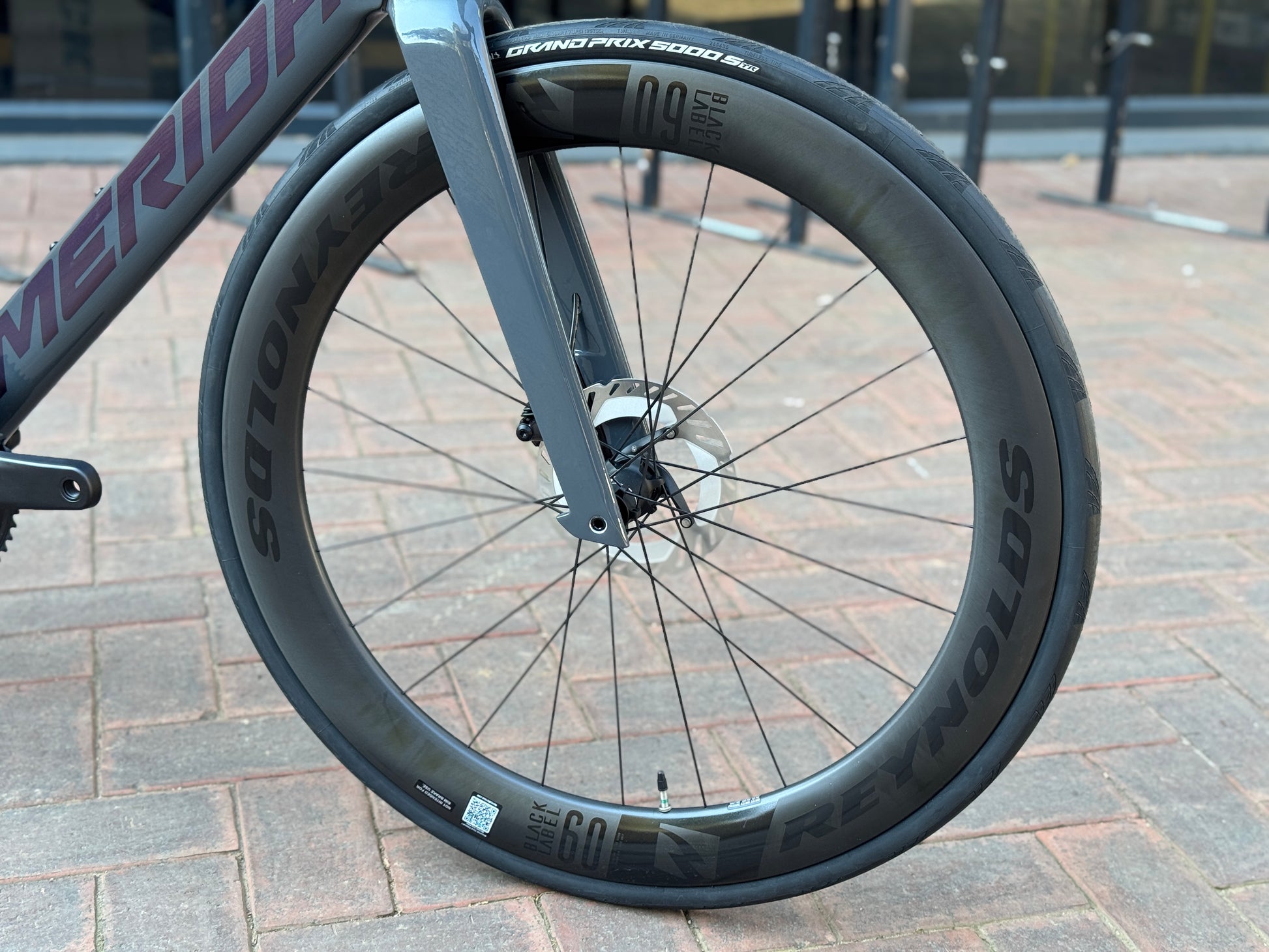

WHEELSET
Reynolds BL60 Expert DB, 100x12mm width front hub
142x12mm width rear hub
21mm inner width
60mm height
Centerlock
Shimano HG
material: carbon
Tubeless ready (tubeless tape and valves included)

TYRE FRONT
Continental Grand Prix 5000S TR
700x28C
fold
tubeless ready

TYRE REAR
Continental Grand Prix 5000S TR
700x28C
fold
tubeless ready

AXLES
MERIDA EXPERT SL

APPROX. WEIGHT
7.7 kg

MAX. WEIGHT
120 kg
