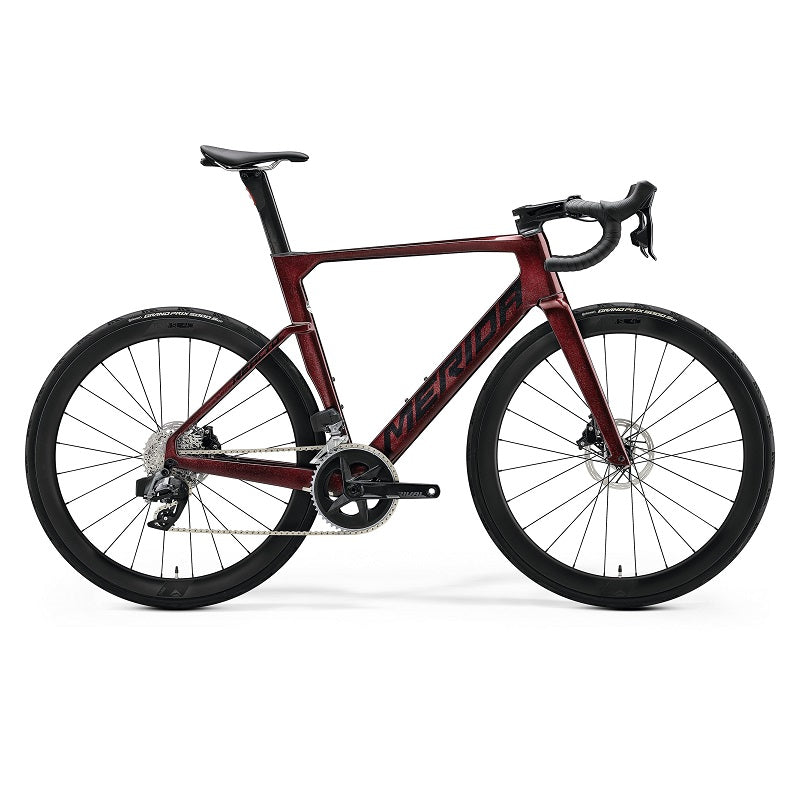

Merida Reacto 7000 (2025)

SIZE GUIDE: FRAME
REACTO CF3 IV
material: carbon
700x30C max. wheelsize
100x12/ 142x12 mm axle standard
BB86,5 bottom bracket standard

FORK
REACTO CF3 IV disc
material: carbon
700x30C max. wheelsize

BRAKES
Sram Rival eTap AXS
Hydraulic disc

ROTORS
Sram Paceline
160 mm

BRAKE LEVER
Sram ED Rival eTap AXS

HEADSET
FSA ACR

HANDLEBAR
MERIDA EXPERT CW
material: aluminium
380 mm (XXS)
400 mm (XS)
420 mm (S/M/L), 440 (XL)

HANDLEBAR
STEM FSA SMR ACR
material: aluminium
-6° stem angle
90 mm-XXS/XS, 100 mm-S, 110 mm-M, 120 mm-L/XL

GRIP
MERIDA ROAD Expert

DERAILLEUR (F)
Sram Rival eTap AXS

DERAILLEUR (R)
Sram Rival eTap AXS

SHIFTERS
Sram Rival eTAP AXS HRD

SEAT POST
MERIDA TEAM CW
Aero shape
15 mm setback
material: Carbon

SEAT CLAMP
MERIDA REACTO Aero

SADDLE
MERIDA EXPERT SL
V-mount
incl. MERIDA minitool

CHAIN
Sram Rival

CRANK
Sram Rival eTap AXS
48-35 teeth
Power Meter
165 mm-XXS, 170 mm-XS, 172.5 mm-S/M, 175 mm-L/XL

FREEWHEEL
Sram XG-1250
10-36 teeth
12 speed

BOTTOM BRACKET
Sram Pressfit DUB
Presfit 86.5 mm

WHEELSET
MERIDA TEAM SL45
100x12 mm width front hub
142x12 mm width rear hub
19 mm inner width
45 mm height
Centerlock
material: carbon

TYRE FRONT
Continental Grand Prix 5000S TR
700x25C
fold
tubeless ready

TYRE REAR
Continental Grand Prix 5000S TR
700x25C
fold
tubeless ready

AXLES
MERIDA EXPERT SL

APPROX. WEIGHT
8.6 kg

MAX. WEIGHT
120 kg
