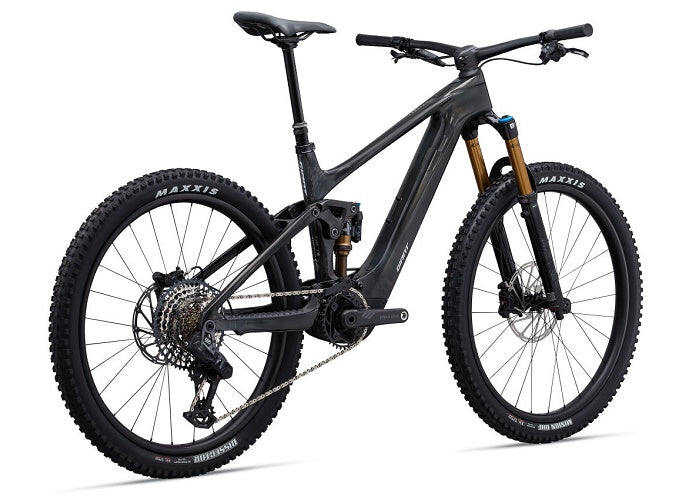

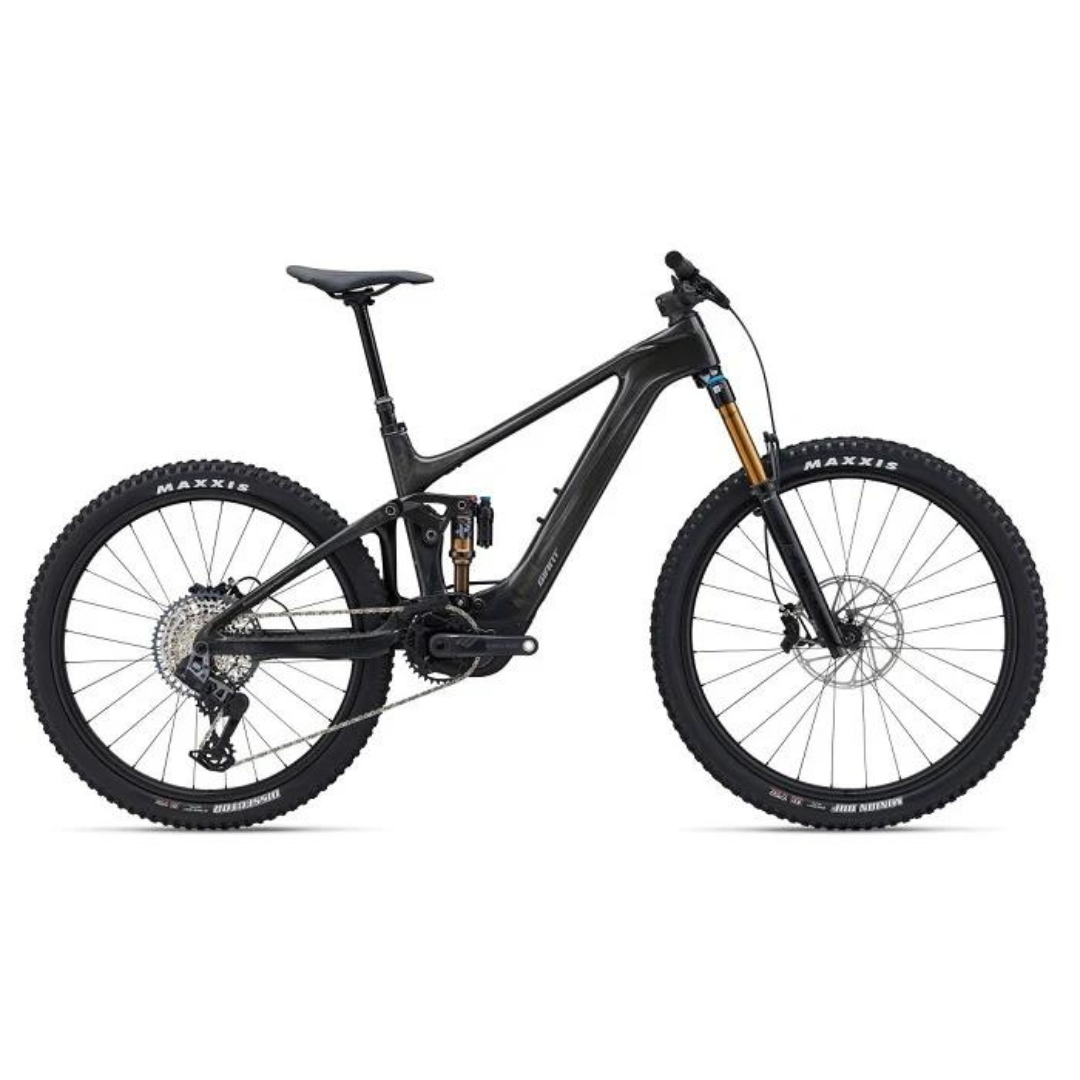

Giant Trance X Advanced E+1 Elite E-Bike (2024)
Giant Trance X Advanced E+1 Elite E-Bike (2024)
KEY PERFORMANCE FACTORS
Lighter Weight
EnergyPak 400 battery system is ultra slim, delivering all the power you need, but in a smaller package that’s cleanly integrated into the lightweight composite frameset.
Advanced Cockpit Control
RideControl Ergo 3 remote attaches to the composite Giant Contact handlebar. The control can be mounted to either side of the handlebar so you can customise your controls for a clean, uncluttered cockpit.
More Power

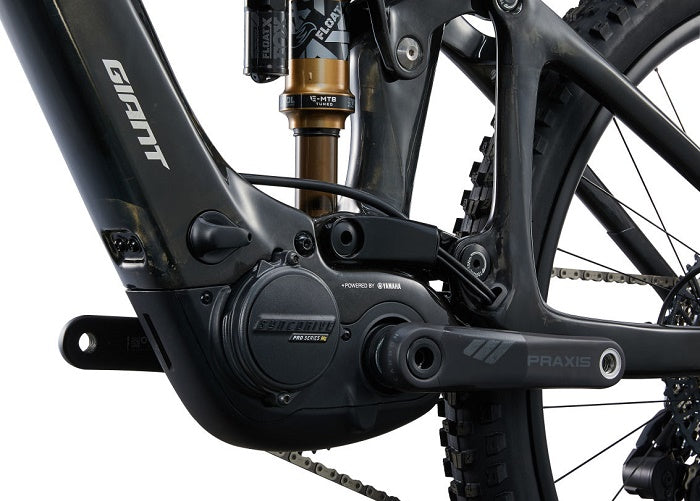

New SyncDrive Pro Magnesium motor features a magnesium casing that reduces weight by 50g. It weighs just 2.5kg and delivers 85Nm of torque while retaining the instant engagement that characterises SyncDrive Pro motors. It’s also engineered for a reduced noise level and quiet performance.
RANGE
How far can I expect to ride on a single battery charge?
EnergyPak 400 / SyncDrive Pro2 Mg
Extreme: 35 km
Good: 70 km
Ideal: 130 km
MOTOR
Giant SyncDrive Pro2 Mg, 85Nm, PedalPlus 6-Sensor technology
CONTROLLER
Giant RideControl Ergo3, grip integrated remote
DISPLAY
Giant RideControl GO, frame integrated LED consoleOptional wireless ANT+ display
BATTERY
Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
SIZES
S, M, L, XL
COLOURS
Raw Carbon
FRAME
Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
FORK
Fox 36 Factory E-Tuned, 29er, 150mm travel, 44mm offset, Grip2 VVC damper, Kabolt-X 110
SHOCK
Fox Float X Factory, EVOL, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
HANDLEBAR
Giant Contact SLR Trail, carbon, 800mm
GRIPS
Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
STEM
Giant Contact SLR Trail, integrated,40/45/50mm Reach, 7/9degree Sweep Adjust System
SEATPOST
Tranz-X Rad+ 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm)
SADDLE
Giant Romero
PEDALS
n/a
SHIFTERS
SRAM AXS Rocker Paddle, wireless electronic shifting
FRONT DERAILLEUR
MRP HD2 co-moulded chain guide
REAR DERAILLEUR
SRAM GX Eagle Transmission, AXS
BRAKES
SRAM Code R, 4-piston hydraulic disc, 220mm[F], 200mm[R]
BRAKE LEVERS
SRAM Code R
CASSETTE
SRAM GX Eagle Transmission, 10-52T, 12-speed
CHAIN
SRAM GX Eagle Transmission Flattop Chain, Powerlock
CRANKSET
SRAM Eagle Transmission chain ring 36T 104BCDPraxis Carbon e-crank arms (S:160, M/L:165, XL:170) Q-factor=168mm, Chainline: 55mm, Max Chainring: 38T
BOTTOM BRACKET
n/a
RIMS
Giant TRX Carbon, 30mm inner width, Wide Side Wall Design for improved strength and flat protection
HUBS
Giant TRX, E-Drive 260Nm 6-Pawl Driver, 72T engagement, MicroSpline body, 110 x 15 [F], 148 x 12 [R] Thru-axle, e-bike optimized
SPOKES
Sapim E-Lite [R] Race [F], e-bike optimized
TIRES
Maxxis Minion DHF 29X2.50in Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4in Foldable, TLR, EXO [R]
EXTRAS
Tubeless kit (liquid, valves, levers, manual, tool)Inner tube supplied
LIGHTING
Optional:- Giant Recon series e-bike lights available and direct connectable
WEIGHT
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
