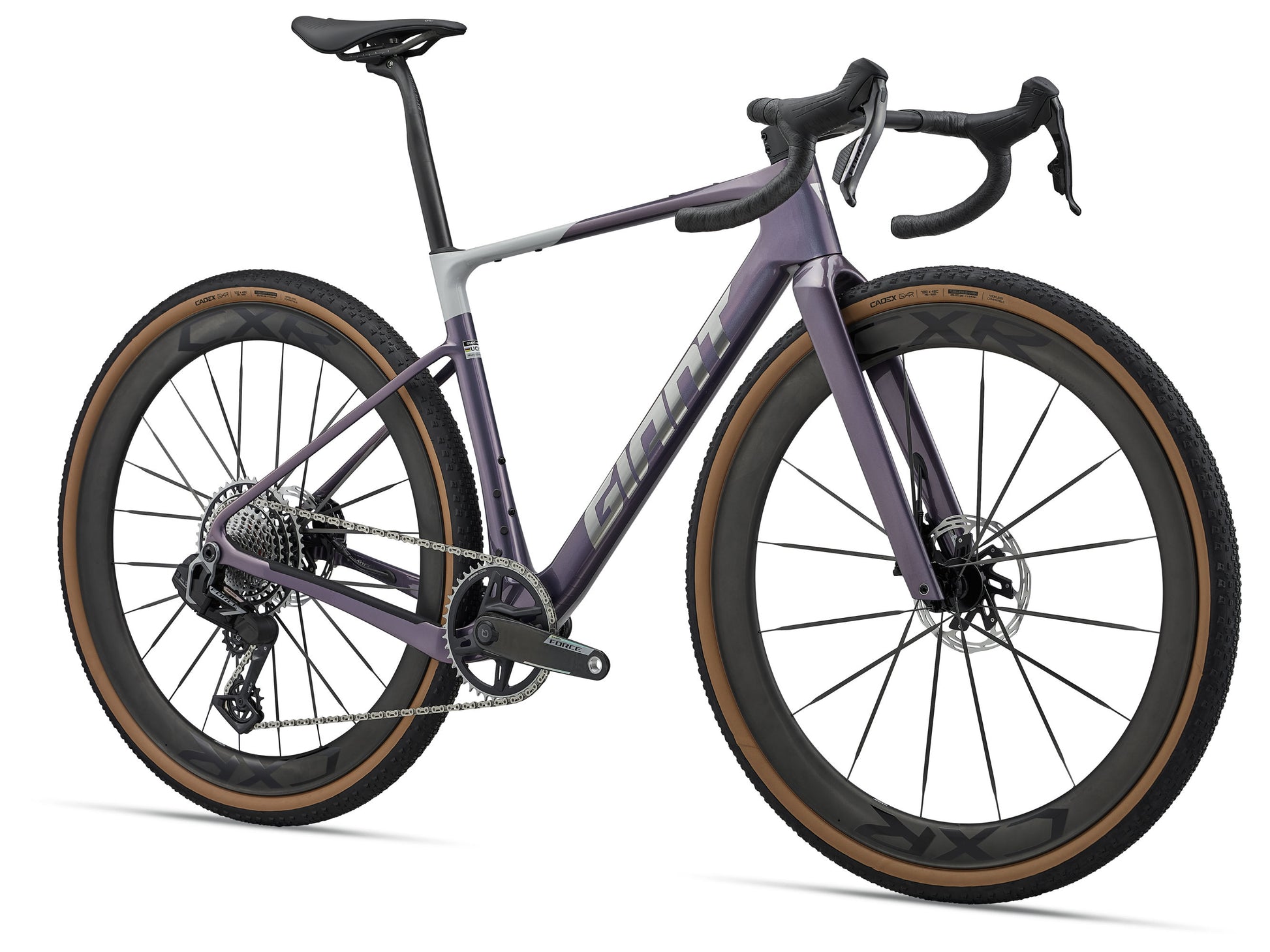

Giant Revolt Advanced SL1 AXS (2027)

The lightest, fastest gravel race bike ever built by Giant. Engineered as a system to deliver a competitive edge over long, demanding gravel efforts, the new Revolt Advanced SL combines aero efficiency with smooth, precise handling, helping you hold speed when others fade.

Key Performance Factors
ULTRALIGHT EFFICIENCY
The new frame and fork are handcrafted using our highest-grade Advanced SL composite, making this the lightest Revolt ever. The frame and fork save 176g compared to the previous generation Revolt Advanced Pro, while a new Contact SLR XR Integrated Handlebar, lighter WheelSystem, and CADEX GXR 45mm tires add up to a total system weight savings of 288g*. The lighter weight and wider tires result in more dynamic handling, faster acceleration, and greater climbing efficiency.

AERO SPEED OVER DISTANCE
Aerodynamic efficiency compounds over hours. The Revolt Advanced SL’s aero tube shaping is optimized for real gravel race speeds of 30–45 km/h, reducing frontal drag across the frameset, fork and cockpit. Combined with new WheelSystems and tires designed as a single aerodynamic unit, the system delivers 18.99 watts of total resistance reduction versus the previous Revolt Advanced Pro. Lower drag over multiple hours means less fatigue, higher sustainable speed, and measurable time savings at the finish line.

RACE-TUNED GEOMETRY

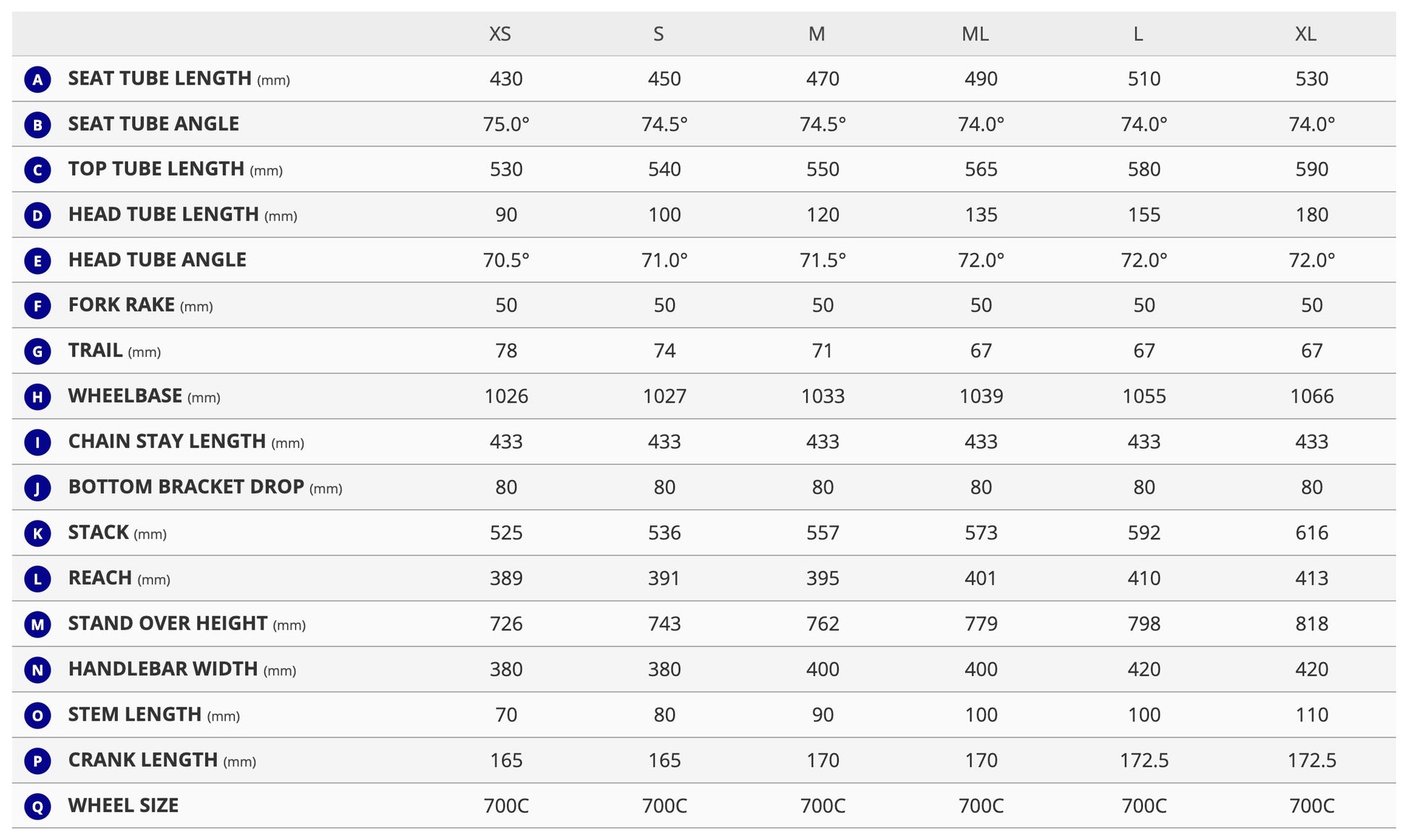

With a 557mm stack and 395mm reach (size M), a steeper 74.5° seat tube angle and a 1,033mm wheelbase with 433mm chainstays, the new Revolt Advanced SL puts riders in an aggressive, aerodynamic race posture. Forward, low and efficient. At race pace on loose terrain, it feels fast, precise and composed. Optimized for 45mm tires with 53mm maximum clearance, it’s purpose-built for modern gravel racing.

• Sizes
  XS, S, M, M/L, L, XL
• Colors
  Tempest Purple

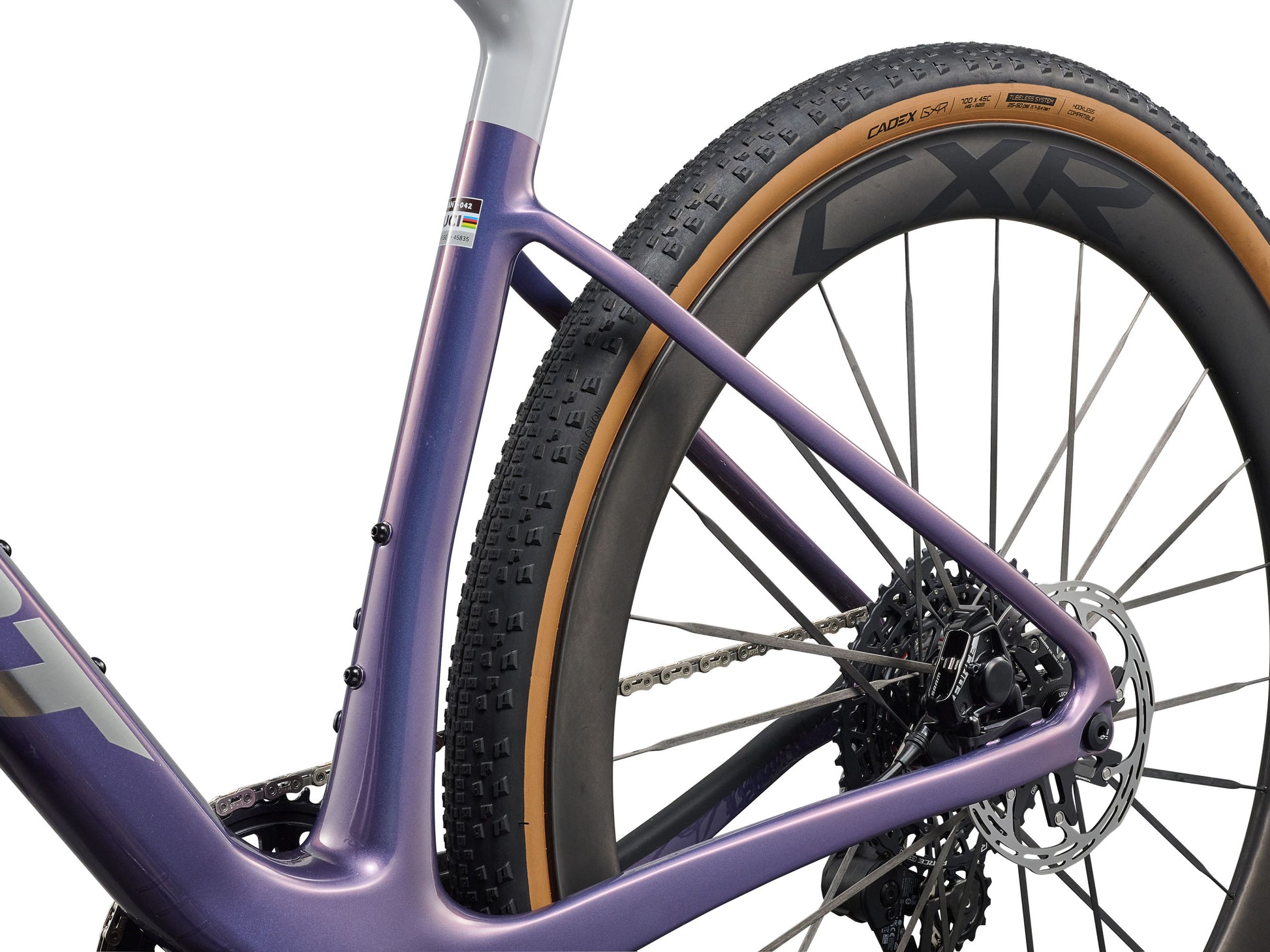

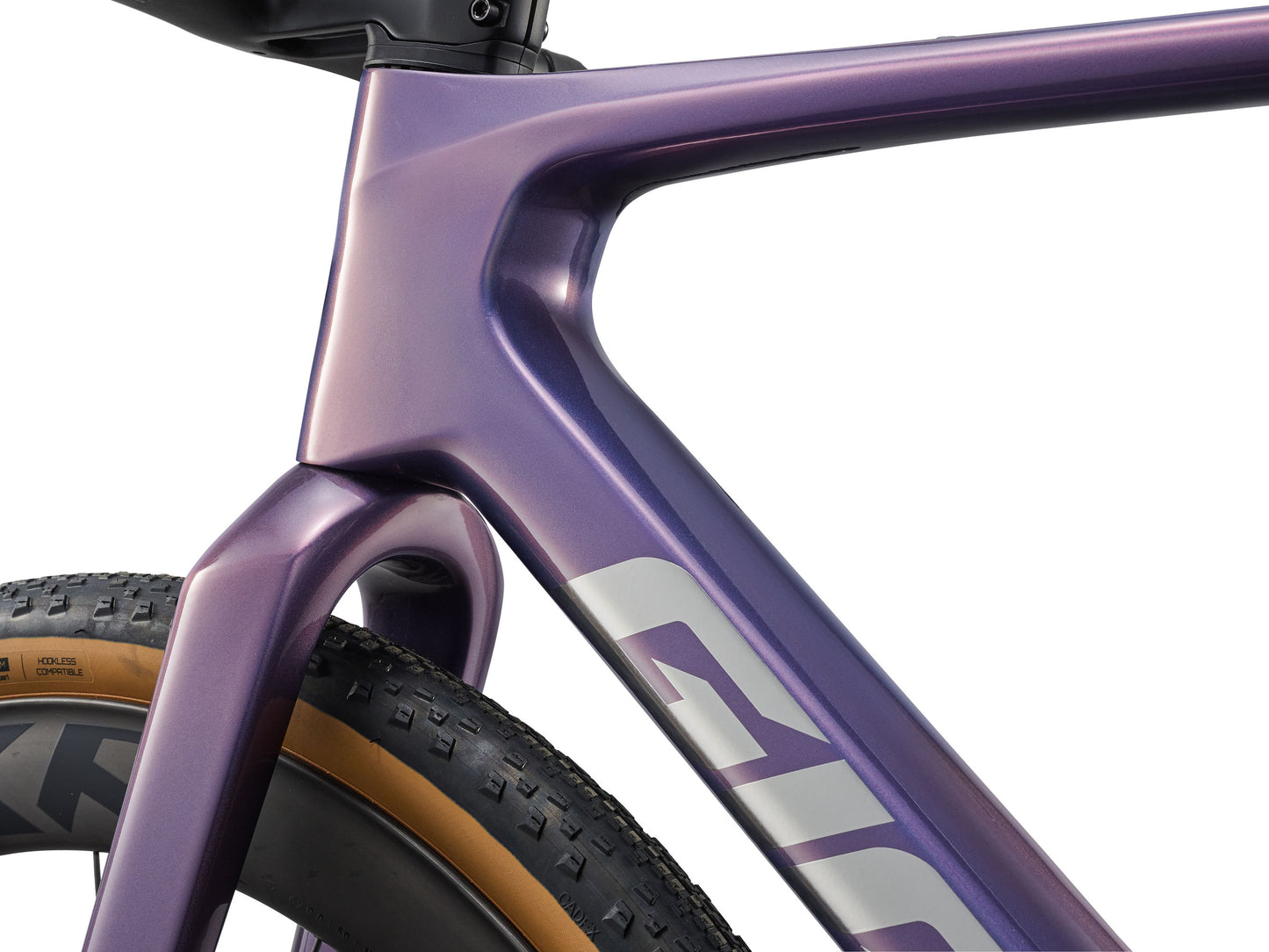

• Frame
  Advanced SL-grade composite, 12x142mm thru-axle, disc, UDH dropout

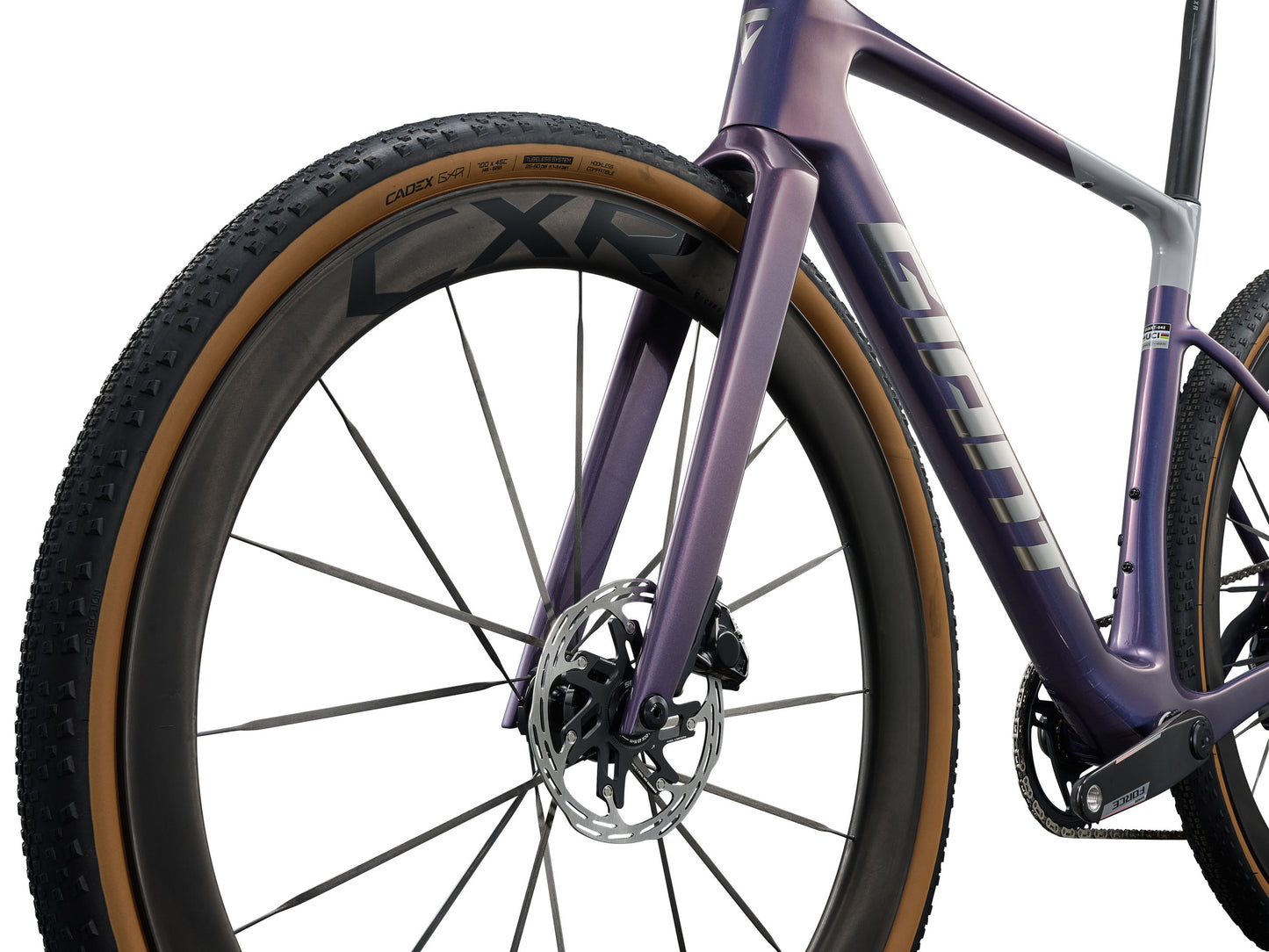

• Fork
  Advanced SL-grade composite, full-composite, updated OverDrive steerer, 12mm thru-axle, disc

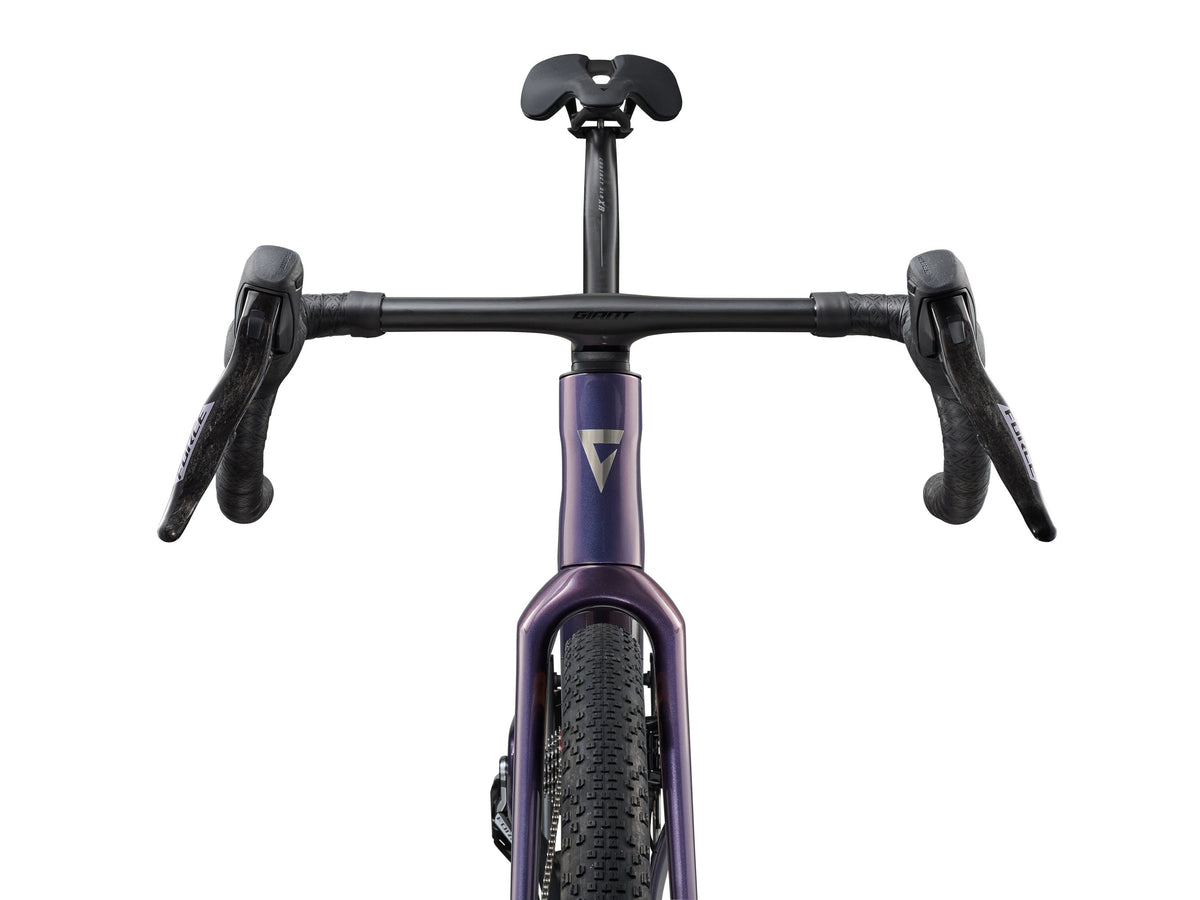

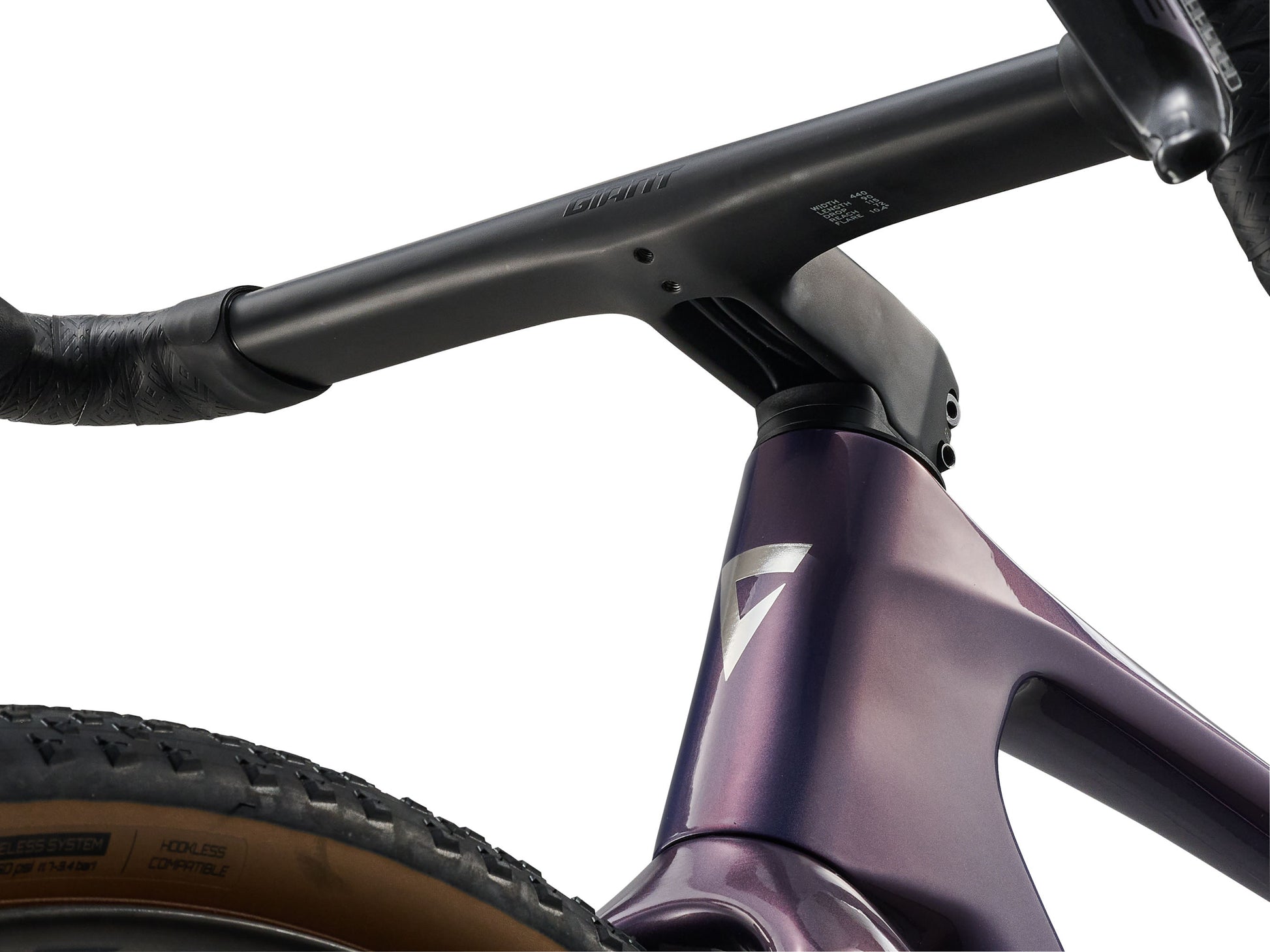

• Handlebar
  Giant Contact SLR XR Integrated XS:420/380mm, S:420/380mm, M:440/400mm, M/L:440/400mm, L:440/420mm, XL:460/420mm
• Grips
  Stratus Lite 3.0
• Stem
  Giant Contact SLR XR Integrated XS:70, S:80mm, M:90, M/L:100, L:100, XL:110
• Seatpost
  Giant Contact SLR XR D-Fuse, composite, 20mm offset
• Saddle
  Giant Grit SLR
• Shifters
  SRAM Force XPLR AXS E1, 1x13

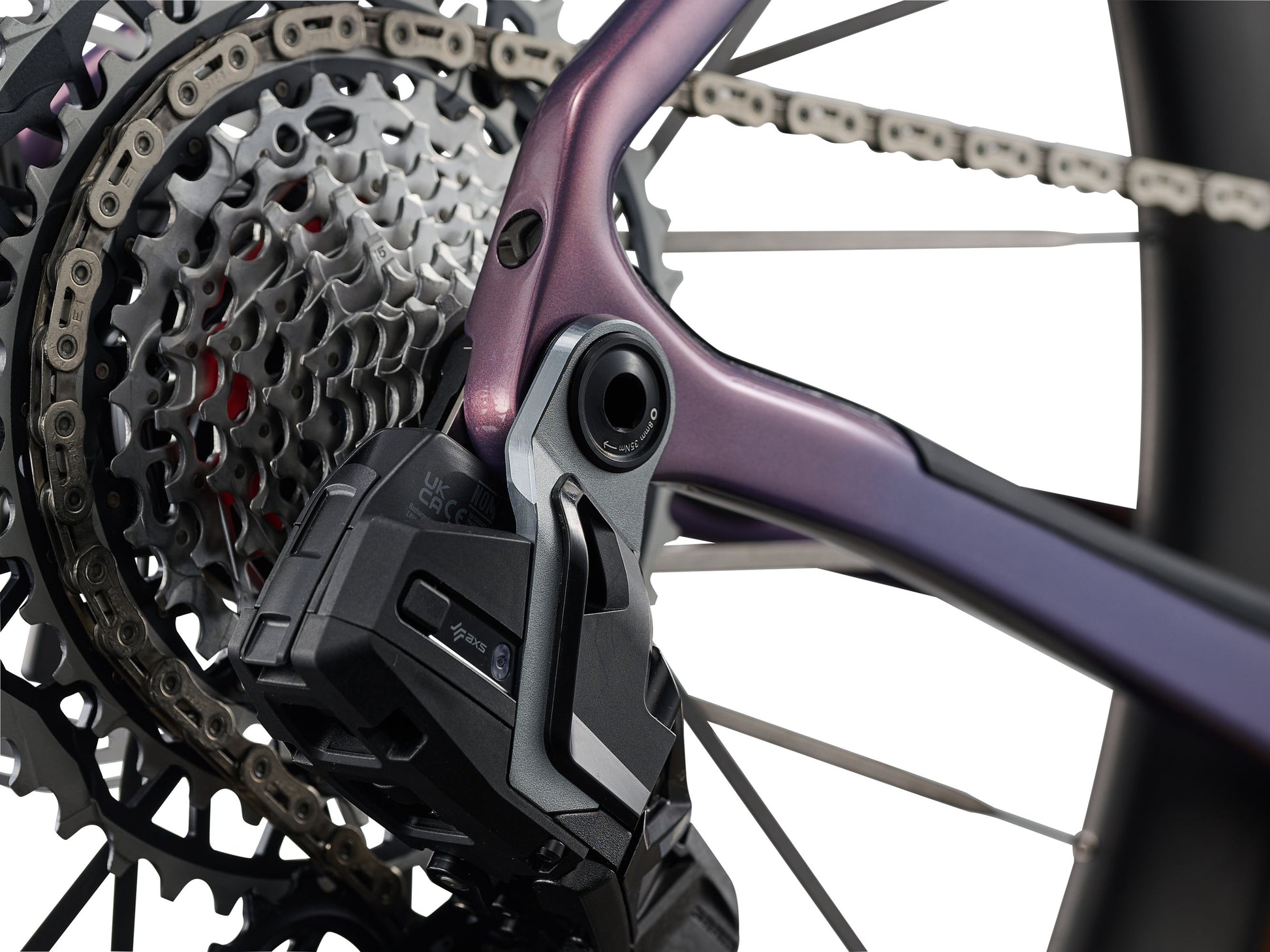

• Rear Derailleur
  SRAM Force XPLR AXS E1
• Brakes
  SRAM Force AXS E1 hydraulic, SRAM PaceLine X rotors [F]160mm, [R]160mm
• Brake Levers
  SRAM Force E1 hydraulic
• Cassette
  SRAM Force E1, 13-speed, 10x46
• Chain
  SRAM Force E1

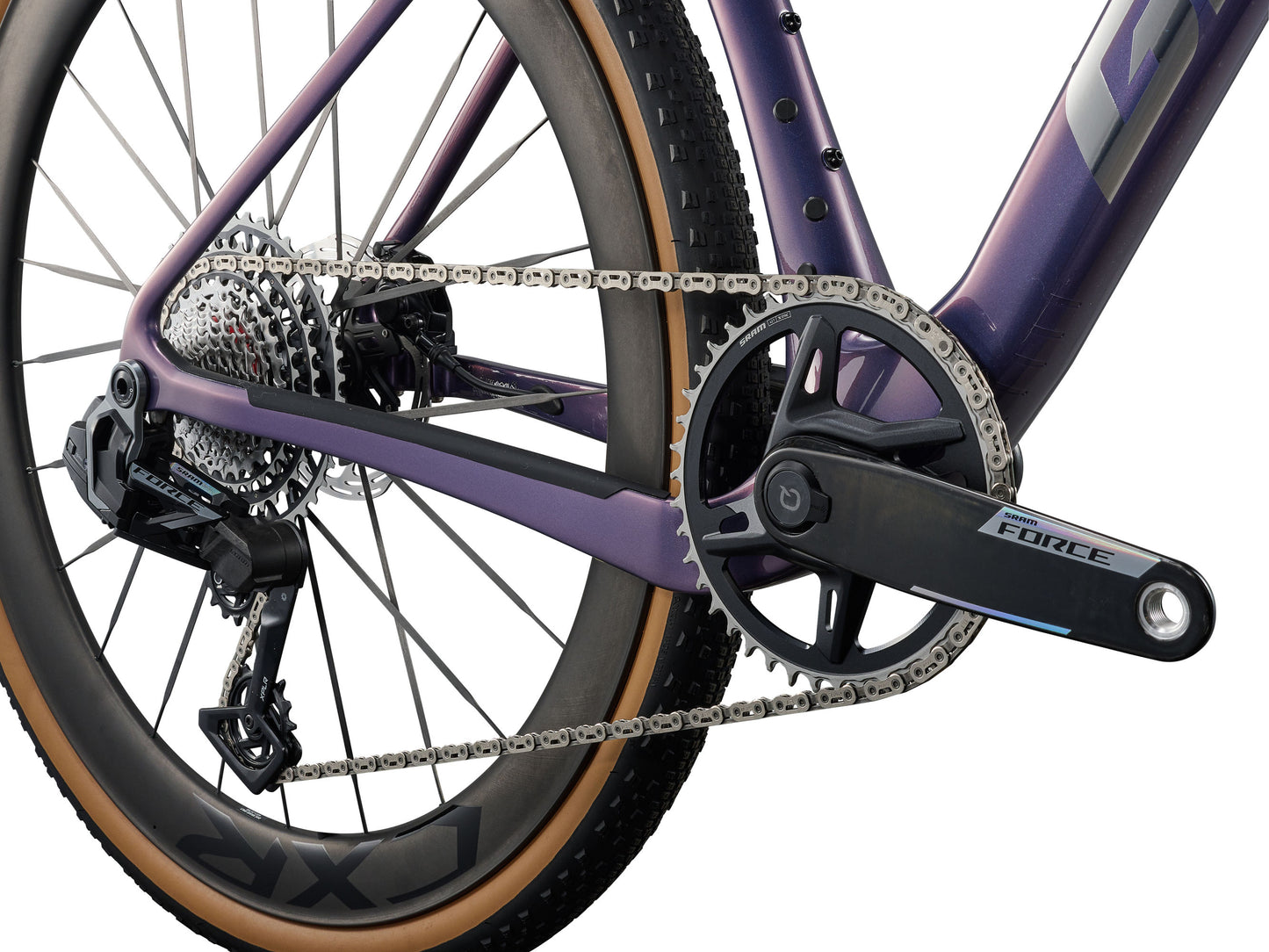

• Crankset
  SRAM Force XPLR AXS with power meter, 42t XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
• Bottom Bracket
  SRAM DUB, press fit
• Rims
  Giant CXR 0 WheelSystem, hookless, carbon [F] 50mm, [R] 50mm
• Hubs
  [F] Giant Low Friction Aero Hub, Center Lock [R] Giant Low Friction Aero Hub, 60-tooth ratchet driver, Center Lock
• Spokes
  Aero Bladed Carbon Spoke
• Tires
  CADEX GXR, 700x45c, tubeless
• Extras
  tubeless prepared, computer mount, chain guide
• Max Tire Clearance
  700x53mm
• Max Chainring Size
  54t
• Weight
  7.5kgs Size M/L
