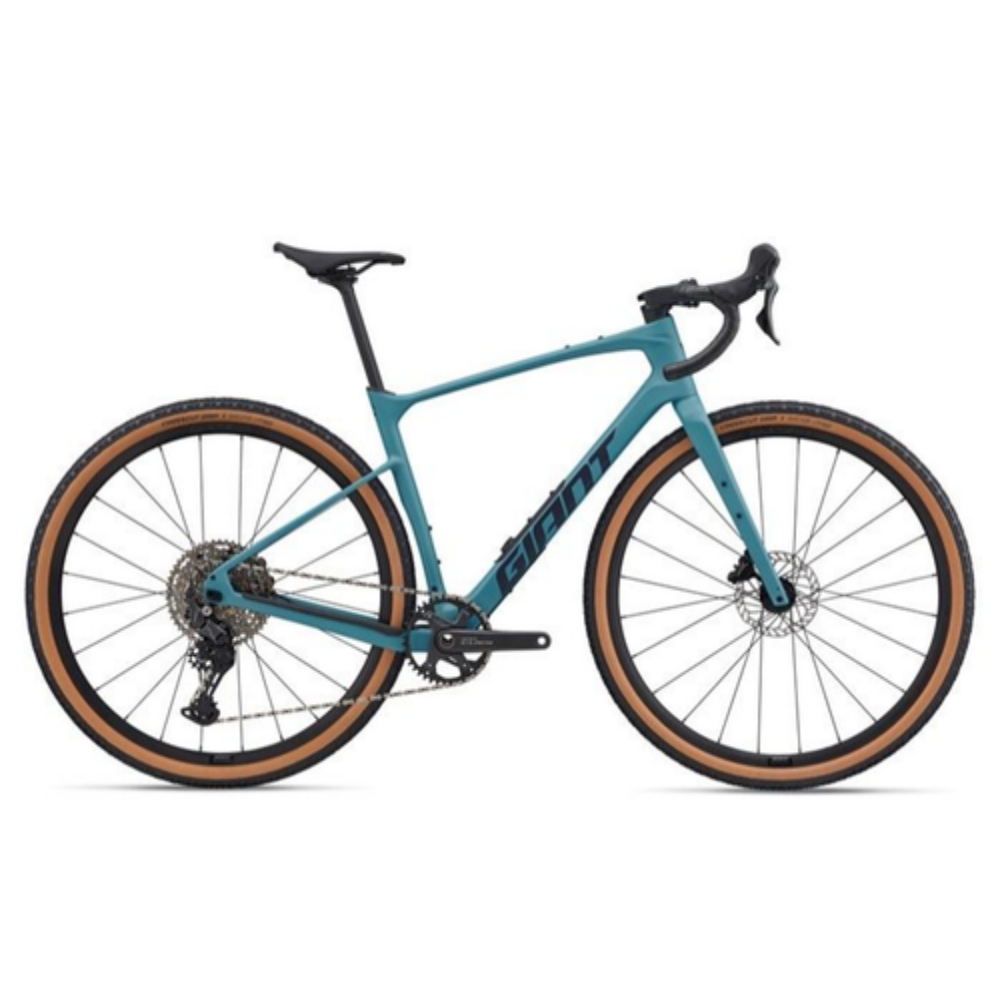

Giant Revolt Advanced 3 (2026)

Rough roads, gravel or dirt. However you choose to roll, this bike does it all.

The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

Key Performance Factors
Fast and light

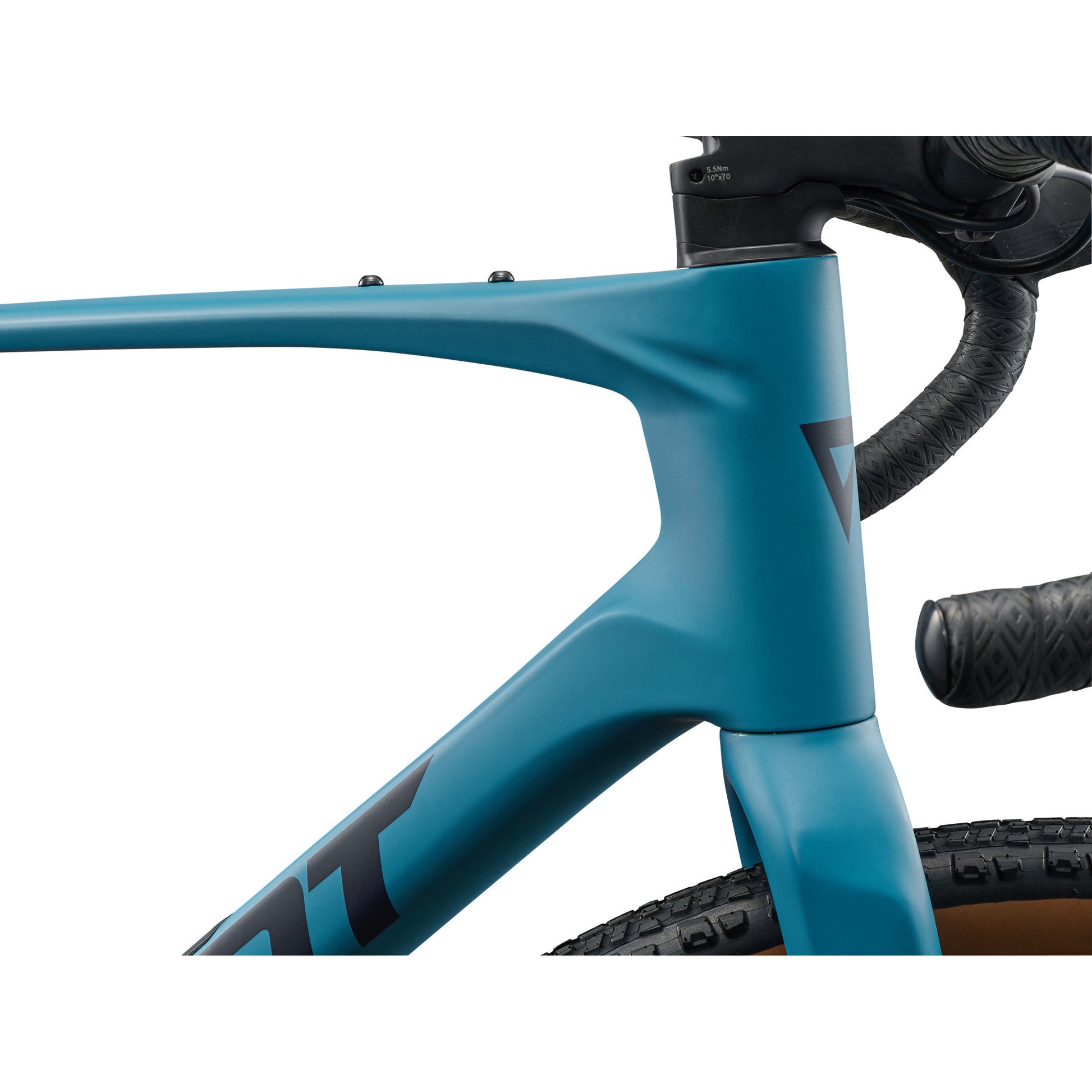

Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.

Tuned compliance
Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Colors
Aquarium
Frame
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage

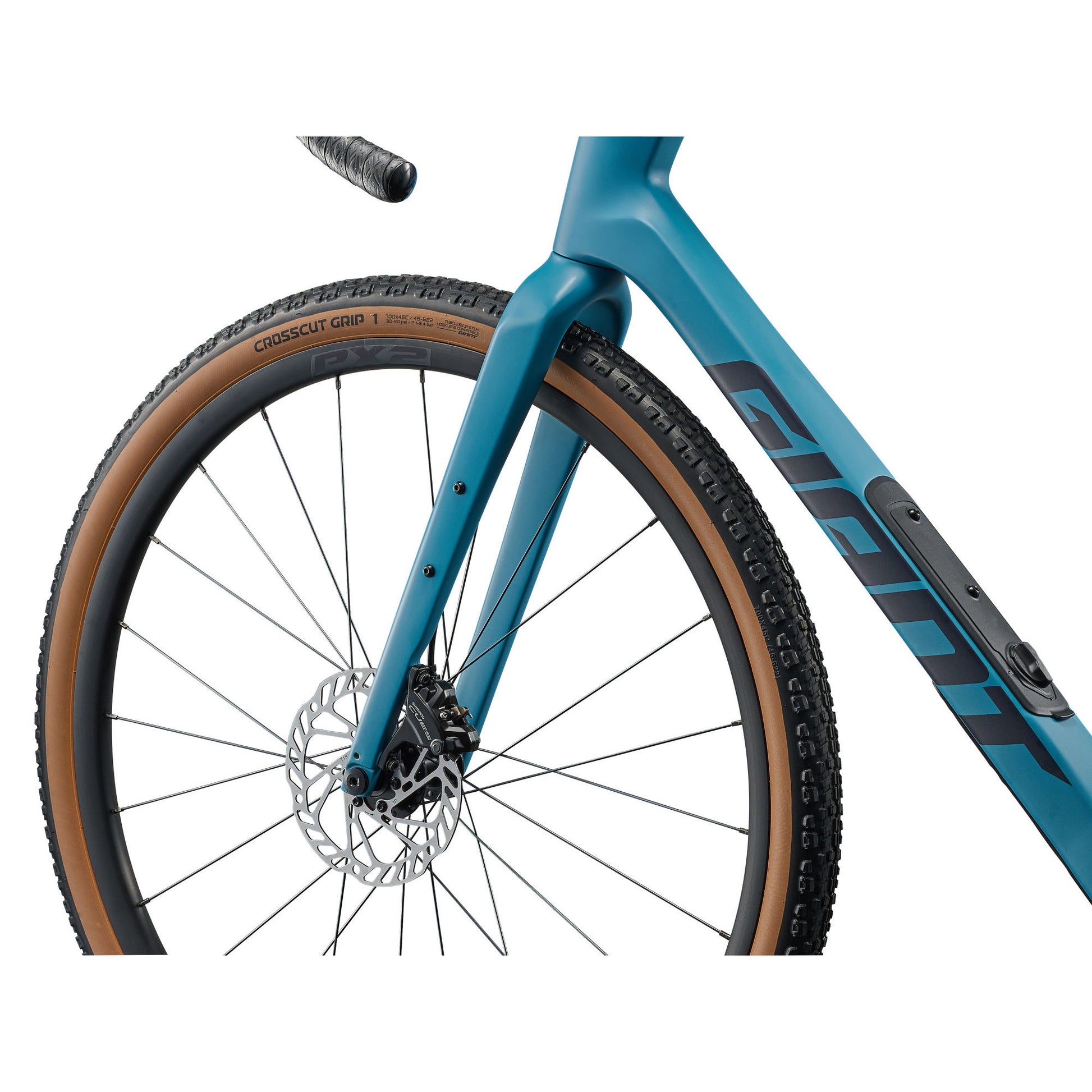

Fork
Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

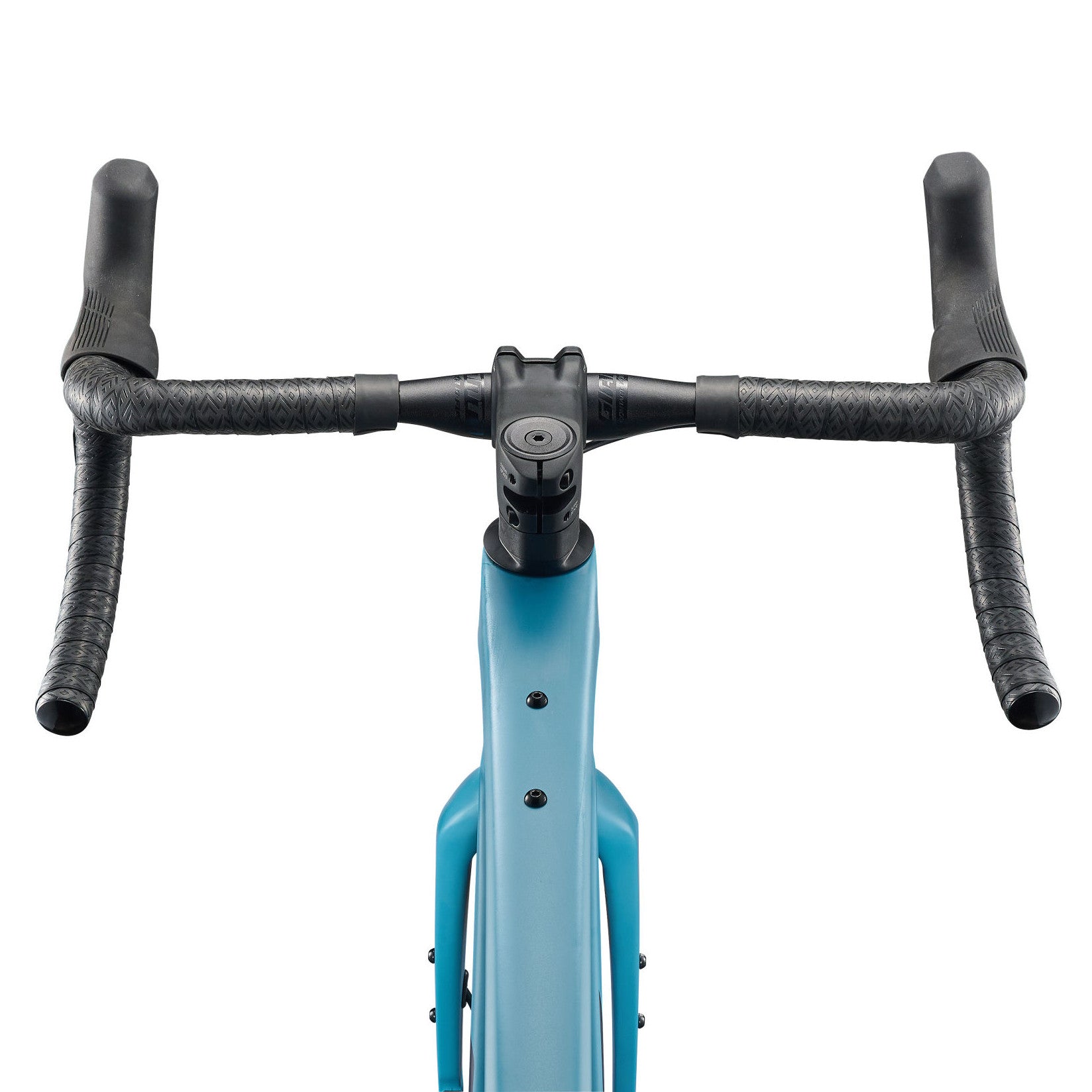

Handlebar
Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips
Stratus Lite 3.0
Stem
Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost
Giant D-Fuse, composite, 14mm offset
Saddle
Giant Grit
Shifters
Shimano CUES U6030, 1x11

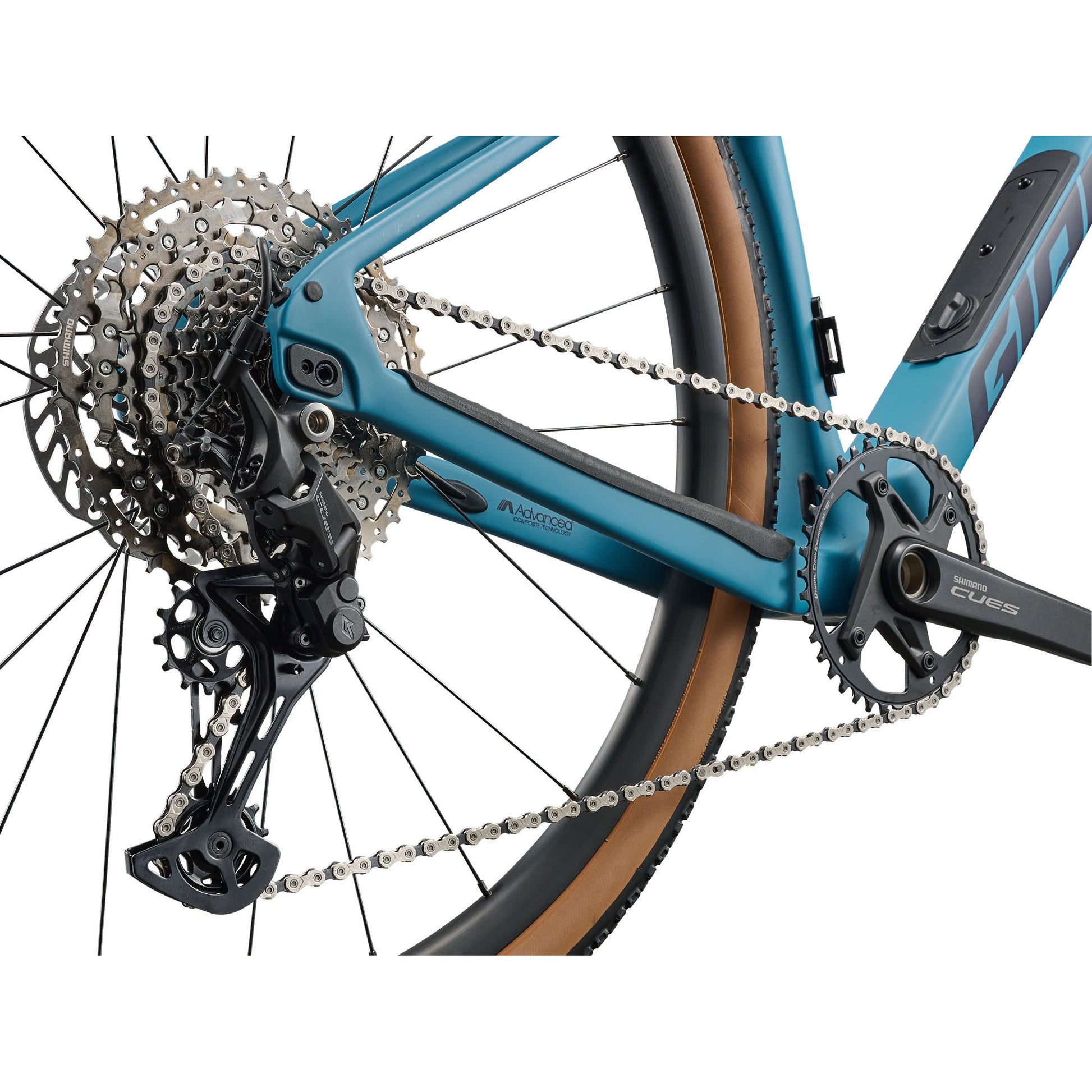

Rear Derailleur
Shimano CUES U6000
Brakes
Shimano CUES U6030 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers
Shimano CUES U6030 hydraulic
Cassette
Shimano CS-LG400, 11x50
Chain
KMC X11
Crankset
Shimano FC-U6030-1, 42t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket
Shimano, press fit
Rims
Giant P-X2 , alloy
Hubs
Giant alloy, 12mm thru-axle
Spokes
Sapim
Tires
Giant Crosscut Grip, 700x45c, tubeless
Extras
tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, in-frame storage bag
Max Tire Clearance
53mm
Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
