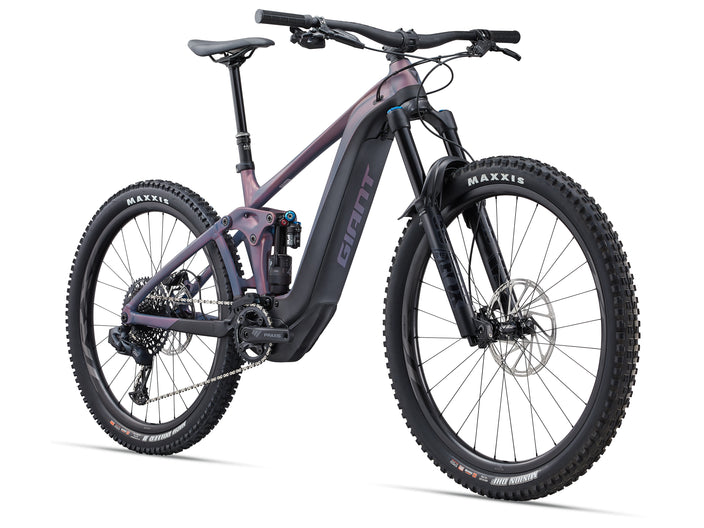

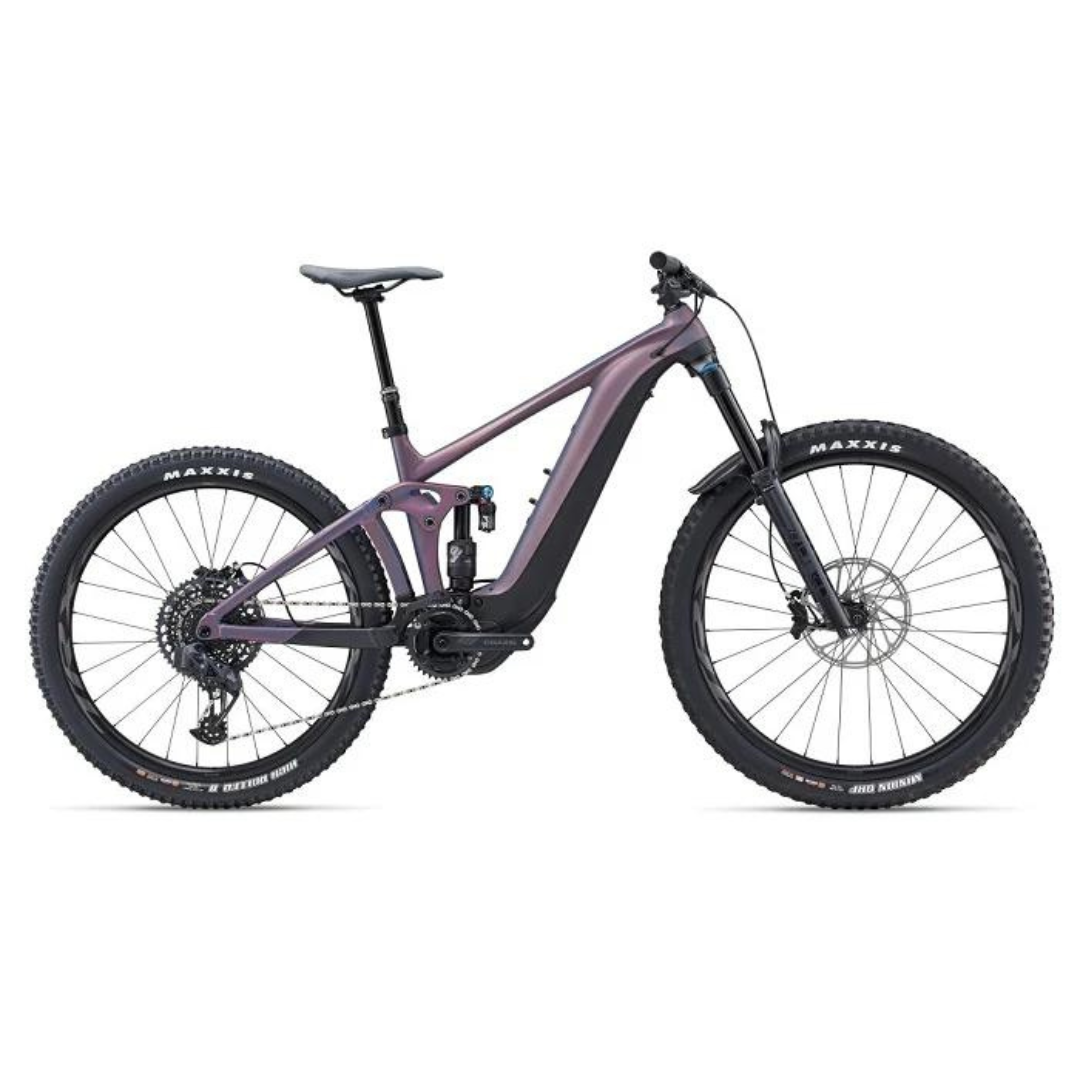

Giant Reign E+1 (2023)
Giant Reign E+1 (2023)
Trail technology
Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor technology boost your capabilities on steep climbs and rugged descents. Updated geometry with a shorter rear end and longer reach allow superior handling and agility on technical terrain.
Total control
RideControl Ergo 3 offers integrated, user-friendly button controls that are easy to use. The Giant E-bike App gives you tuning options and E-bike specific fitness tracking.
Long-lasting power
Climb steep mountains and enjoy fun descents all day long with the new downtube-integrated EnergyPak featuring 800Wh of capacity.
Extreme: 70 km 43 miles
Good: 140 km 86 miles
Ideal: 250 km 155 miles
MOTOR
SyncDrive Pro, 85Nm, powered by Yamaha
CONTROLLER
RideControl GO integrated in TT, RideControl Ergo 3
DISPLAY
Wireless display compatible
BATTERY
EnergyPak Smart 800, EnergyPak Plus range extender compatible (exclude S Size)
SIZES
S, M, L, XL
COLORS
Mirage/Black
FRAME
ALUXX SL-grade aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, 'Boost' 148x12mm, Universal Derailleur Hanger
FORK
Fox 38 Float Performance Elite, 29er, 170mm, GRIP2 VVC Damper, Boost 110x15 Kabolt floating axle, with fender, e-Bike optimized
SHOCK
Fox Float X2 Performance Elite, EVOL Large Volume sleeve, 2-position lever, 205x62.5mm Trunnion mount, custom tuned
HANDLEBAR
Giant Contact SL Trail, 35x800mm
GRIPS
Giant Tactal Pro-E, single lock-on
STEM
Giant Contact SL 35
SEATPOST
Rad+ travel adjust dropper, dropper, 30,9mm (S:100~140mm, M:140~170mm, L/XL:170~200mm)
SADDLE
Giant Romero Trail
PEDALS
Flat pedals
SHIFTERS
SRAM AXS POD controller
FRONT DERAILLEUR
MRP 1X HD2 custom co-molded chain guide
REAR DERAILLEUR
SRAM GX Eagle NGD
BRAKES
SRAM Code R, hydraulic disc, 220mm[F] /200mm[R]
BRAKE LEVERS
SRAM Code R
CASSETTE
SRAM GX, 10-52T, 12-speed
CHAIN
SRAM GX Eagle PowerLock
CRANKSET
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S/M:160, L/XL:165)
RIMS
TRX 2 Hookless Clincher, 29in [F] / 27.5in [R], 30mm inner width
HUBS
TRX 2 MTB Alloy Hub, 6 Bolt, Pawl Driver (3 Pawl 30T) SRAM XD, 110 x 15 [F], 148 x 12 [R] Thru Axle
TIRES
Maxxis Minion DHF 29x2.6in foldable, Tubeless, EXO+, 3C MaxxTerra[F]Maxxis High Roller II 27.5x2.5in foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R]
EXTRAS
Tubeless kit (liquid, valves, levers, manual, tool)
LIGHTING
-
LOCK
Torx 25 Battery Lock with built-in Torque limiter
CARRIER
-
WEIGHT
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
