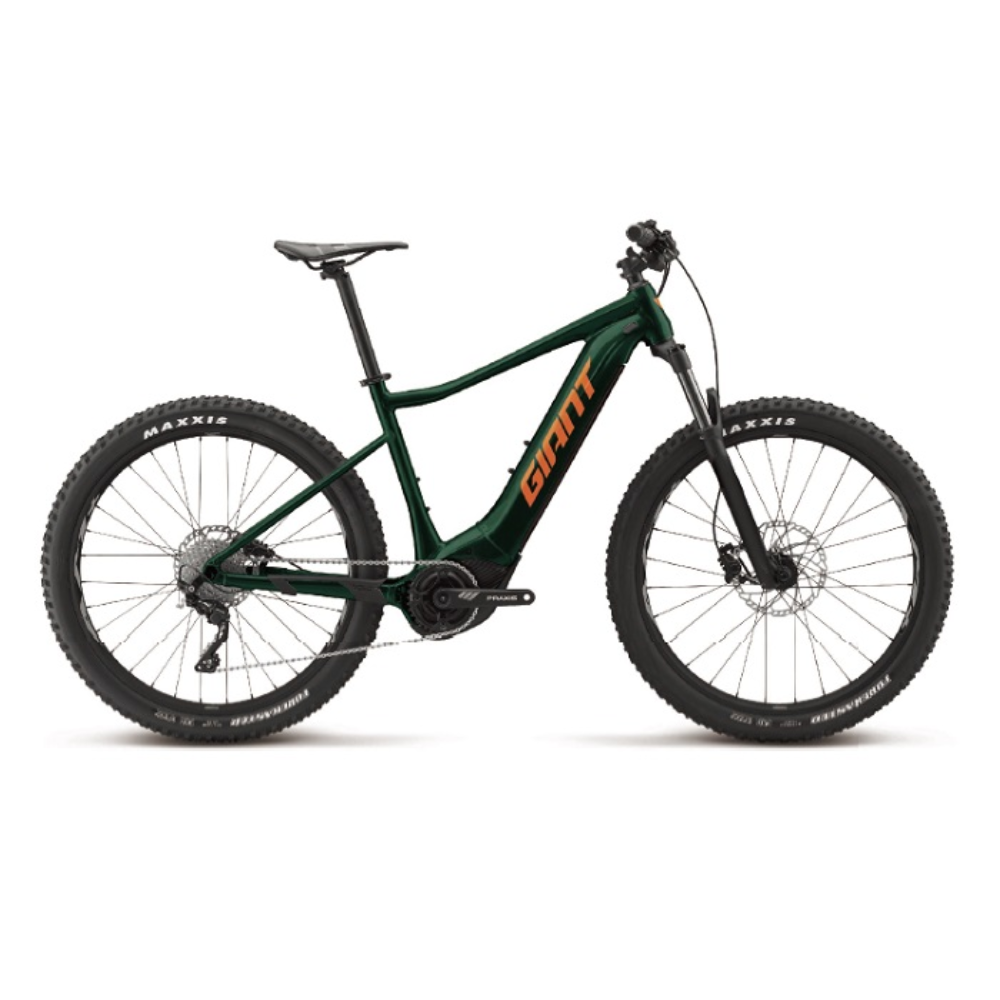

Giant Fathom E+3 LTD (2025)

Smooth power delivery

The new SyncDrive Sport motor delivers smooth, instantaneous power with 75Nm of torque to help riders climb steep hills and extend their trail riding capabilities.

Balanced, confident handling

Lightweight aluminum frame with trail-friendly geometry, 130mm of front suspension travel, and stable 29-inch wheels with tubeless tires puts you in control even in the toughest off-road terrain.

Range:

Extreme: 52 km
Good: 105 km
Ideal: 175 km

• Motor
  Giant SyncDrive Sport, 70Nm, PedalPlus 6-sensor technology
• Sensor
  Giant RideControl Dash, Smart Assist automatic mode, 5 support levels, USB-C (10W)
• Display
  Giant RideControl Dash, high-angle visibility, full color LCD display
• Battery
  Giant EnergyPak 500Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 250 range extender compatible
• Charger
  Giant EnergyPak 4A smart charger compact, 60% charge in 2:00h
• Connectivity
  Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
• Sizes
  S, M, L, XL, XXL
• Colors
  Kelp Forest
• Frame
  ALUXX aluminum, Overdrive 1½ - 1⅛" head tube, 141mm Boost QR, ISS, EnergyPak Plus Range Extender compatible, integrated KSA18 kickstand mount
• Fork
  SR Suntour XCM32 NLO DS 15AH2 29, 120mm travel, tapered steerer, lockout
• Handlebar
  Giant Connect TR Riser 31.8 alloy 750mm [S], 780mm [ M-XXL]
• Grips
  Giant Tactal single lock-on
• Stem
  Giant Contact 31.8 alloy
• Seatpost
  Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
• Saddle
  Giant Sport
• Pedals
  Aluminum Platform
• Shifters
  microSHIFT ADVENT e-optimized
• Rear Derailleur
  microSHIFT ADVENT, 9-speed
• Brakes
  Tektro HD-M285, hydraulic disc, 180mm
• Brake Levers
  Tektro HD-M285
• Cassette
  microSHIFT ADVENT, 11-42T, 9-speed, e-optimized
• Chain
  KMC e.9 Sport, e-bike optimized
• Crankset
  FSA MegaTooth direct-mount 1X steel 36T alloy crank arm
• Rims
  Giant XCT 29 Tubeless Ready 25mm e-bike optimized
• Hubs
  Shimano HB-TC500-15 100x15 [F], MT200-B 141mm OLD QR [R]
• Spokes
  Stainless steel
• Tires
  Maxxis Rekon 29x2.4" Wire Bead 60TPI
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
