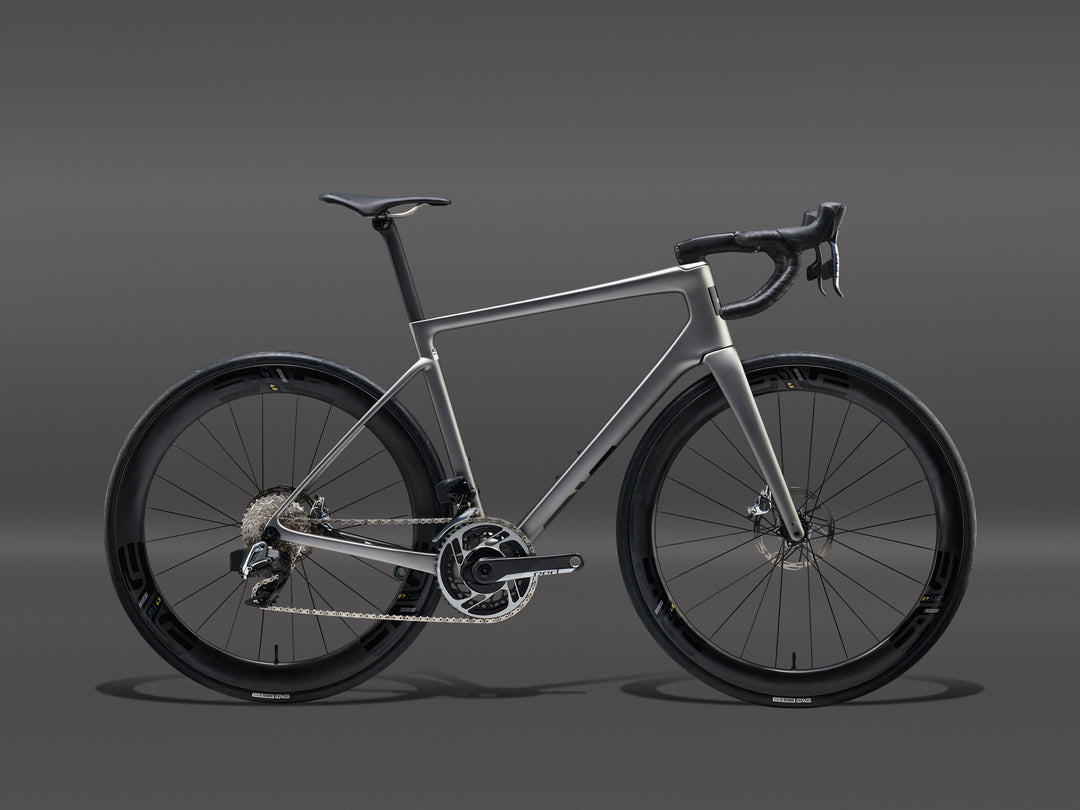

ENVE Melee Road Frameset (Damascus)

An ENVE frameset is more than a starting point, it’s the foundation of a bike built with intention. By offering the Melee as a frameset, ENVE empowers you to craft a bike that reflects your riding priorities, personal fit, and uncompromising standards. With a broad selection of handlebar models, along with tailored options for bar dimensions, stem length, and seatpost setback, every detail of your cockpit is yours to define.

For fit guidance, consult your trusted ENVE retailer or professional bike fitter, and explore the ENVE Best-Fit Calculator to achieve a chassis configuration that’s as precise as it is personal.

• Max Tire Clearance: 35 mm
• Frame Weight: 850 grams (56cm, Painted, No Hardware)

Frame Material	ENVE M.O.D Carbon
Fork Material	ENVE M.O.D Carbon
Target Application	Road Race/Performance
Sizes (cm)	47, 50, 52, 54, 56, 58, 60
Fork Rake	55, 51, 47, 43, 39
Frame Size/Fork Rake	47cm/55, 50cm/51, 52cm/47, 54cm/47, 56cm/43, 58cm/43, 60cm/39
Frame Weight	850g +/- 2% (Size 56, Painted, No Hardware)
Headset	ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing	1.5″ IS52 Upper and Lower
Seat Post Diameter	ENVE Aero
BB Type	T47 Inboard Bearing
Brake Mount	Flat Mount
Front Axle	12×100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle	12×142 (Total Length: 168, TP:1.5, TL:14)
Minimum Tire Size	25c
Optimal Tire Size	27c-32c
Maximum Listed Tire Clearance	35c
Frame Routing	Internal
