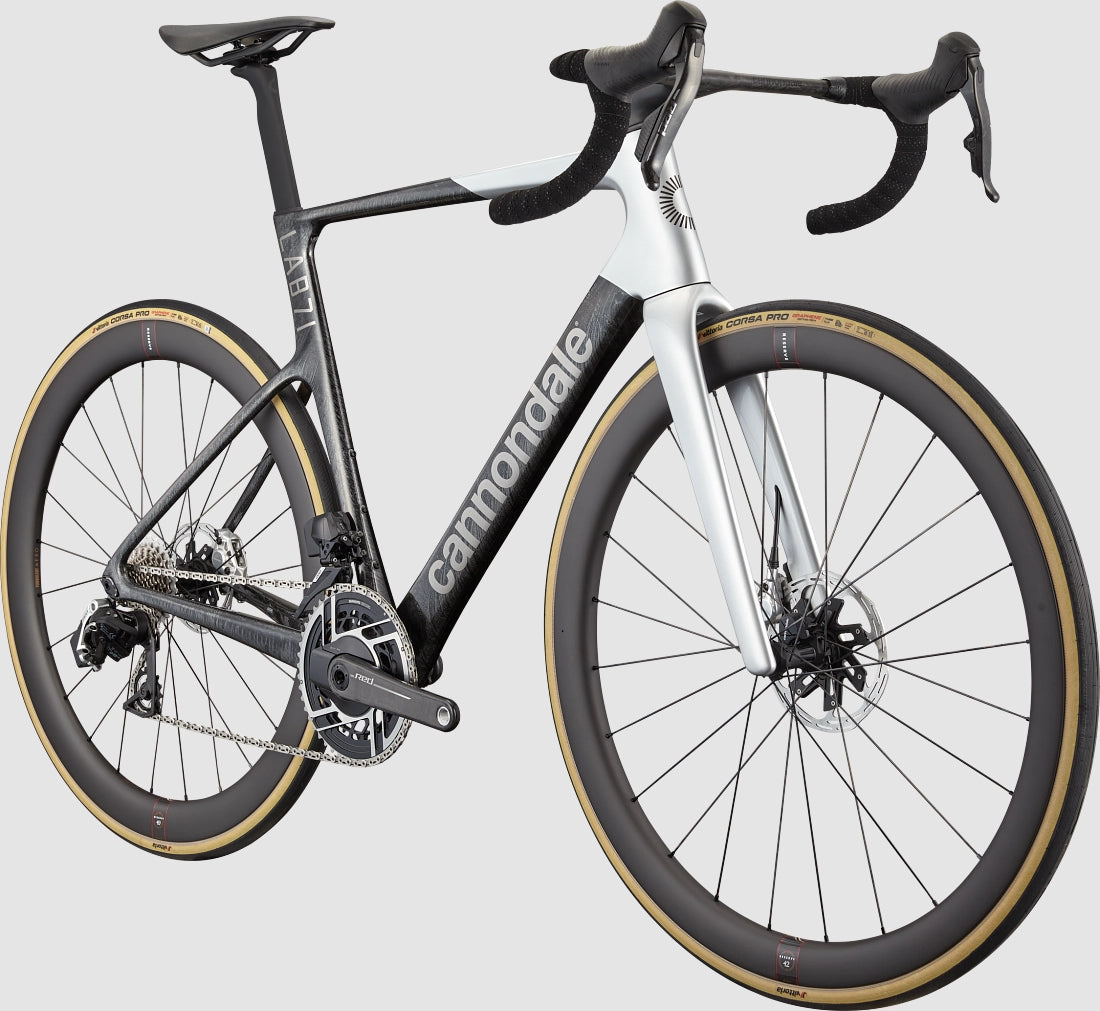

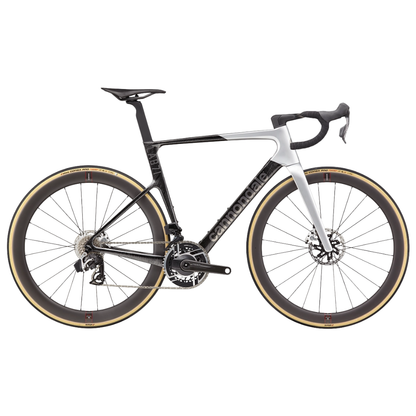

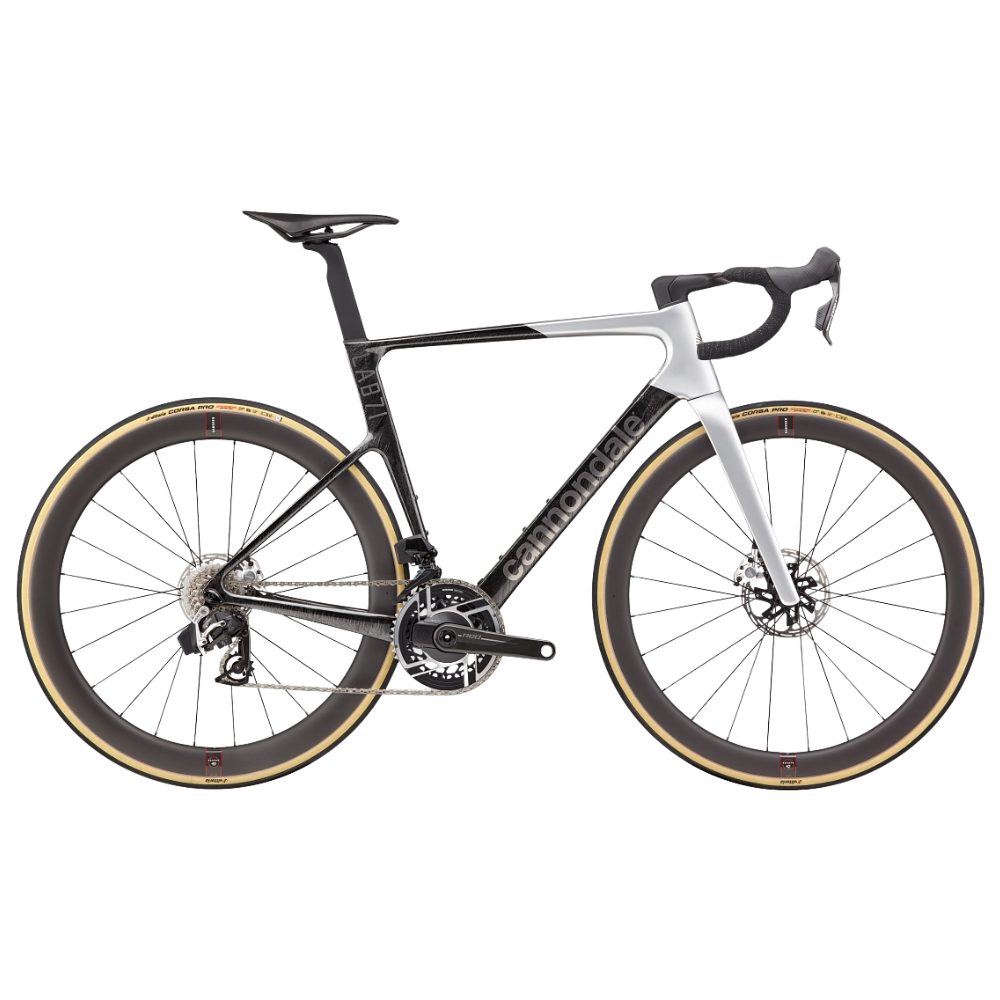

Cannondale Supersix EVO LAB71 (2025)

• Cannondale SuperSix EVO LAB71 – Ultralight Aero Carbon Road Racer (2025)

  Elevate your ride with the 2025 Cannondale SuperSix EVO LAB71 — the pinnacle of speed, engineering and race-ready performance. Built around the Ultralight Series 0 Carbon “LAB71” frame, this machine fuses elite weight savings with cutting-edge aerodynamic design to dominate both climbs and flats.

  🔧 Key Components & Specifications

  • Frameset: LAB71 SuperSix EVO Ultralight Series 0 Carbon with integrated cable routing (Switchplate), 12×142 mm rear & 12×100 mm front thru-axles, threaded BSA 68 mm bottom bracket, flat-mount discs, SmartSense compatible.

  • Fork: LAB71 SuperSix EVO Series 0 Carbon, internal routing, Delta steerer (1-1/8″ to 1-1/4″) with race-tuned offsets (55 mm for 44-54 cm, 45 mm for 56-61 cm) for agile performance.

  • Drivetrain: Premium electronic shifting via SRAM RED AXS 2×12 (or in some builds Shimano Dura-Ace Di2) — depending on the spec region. For example: SRAM RED AXS, 2×12.

  • Brakes: High-end hydraulic disc brakes (e.g., SRAM RED AXS with PACELINE X 160/160 mm rotors) offering razor-sharp stopping power in all conditions.

  • Wheelset: Elite carbon aero rims (for example Reserve Turbulent Aero 42/49 in some regions) with ceramic-bearing hubs (DT Swiss 180 SINC) for top flight spinning efficiency.

  • Cockpit & Fit: Integrated one-piece bar/stem combo (SystemBar R-One by MomoDesign) with internal routing, carbon aero seatpost (C1 Aero 40) and elite saddle for light weight and ergonomic control.

  • Tire Clearance & Adaptability: Built to accommodate up to 30 mm (or wider depending on region), allowing ride versatility from race day to long endurance rides.

  ---

  🌟 Why You’ll Love It

  • Ultra-light, race-specific carbon aero frame built for decisive performance and weight savings (frame weight around ~770 g sized 56cm for LAB71).

  • Aero-optimized shapes, integrated components and thoughtful design mean faster rides with less wasted effort.

  • Top-tier components and race-ready geometry give you confidence in every sprint, climb, and turn.

  • Versatile enough for serious road races and refined enough for elite amateur performance.

  • Premium build makes a statement — not just in performance, but in craftsmanship and presence.

  Platform

  SuperSix EVO
• Model Name

  SuperSix EVO LAB71
• Model Code

  C11064U

Frameset

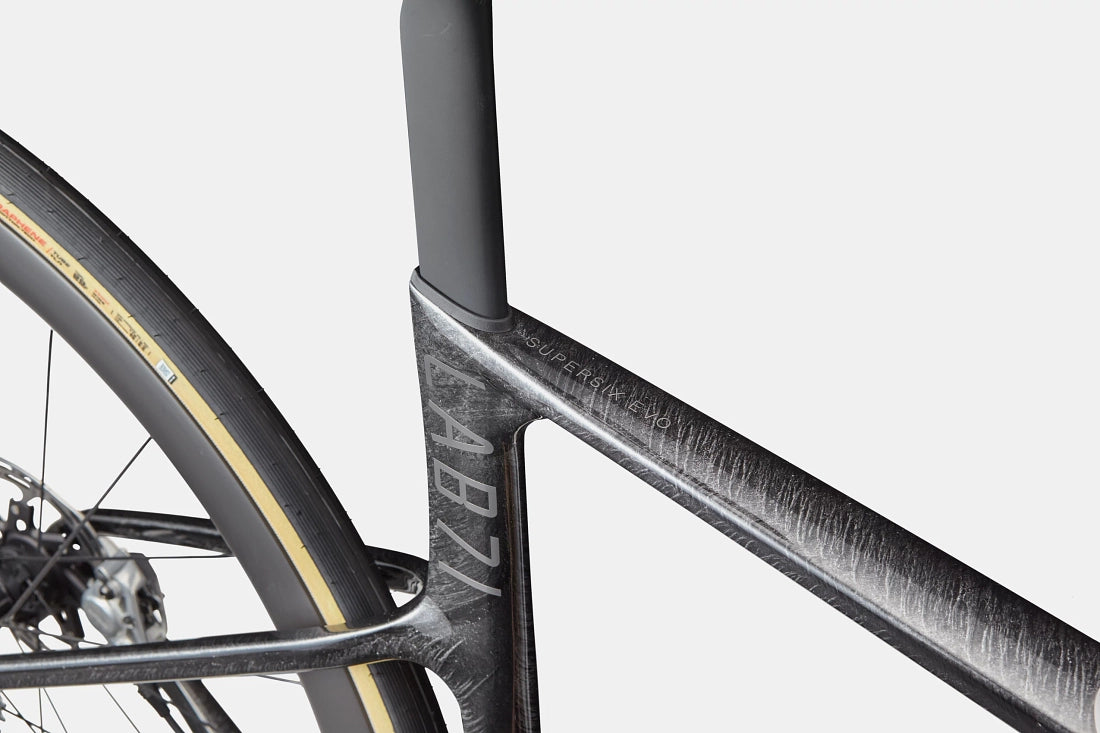

• Frame

  LAB71 SuperSix EVO, Ultralight Series 0 Carbon, integrated cable routing w/ Switchplate, 12x142 Syntace thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense compatible
• Fork

  LAB71 SuperSix EVO, Ultralight Series 0 Carbon, integrated crown race, 12x100mm Syntace thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
• Headset

  Integrated, 1-1/8" - 1-1/4"

Drivetrain

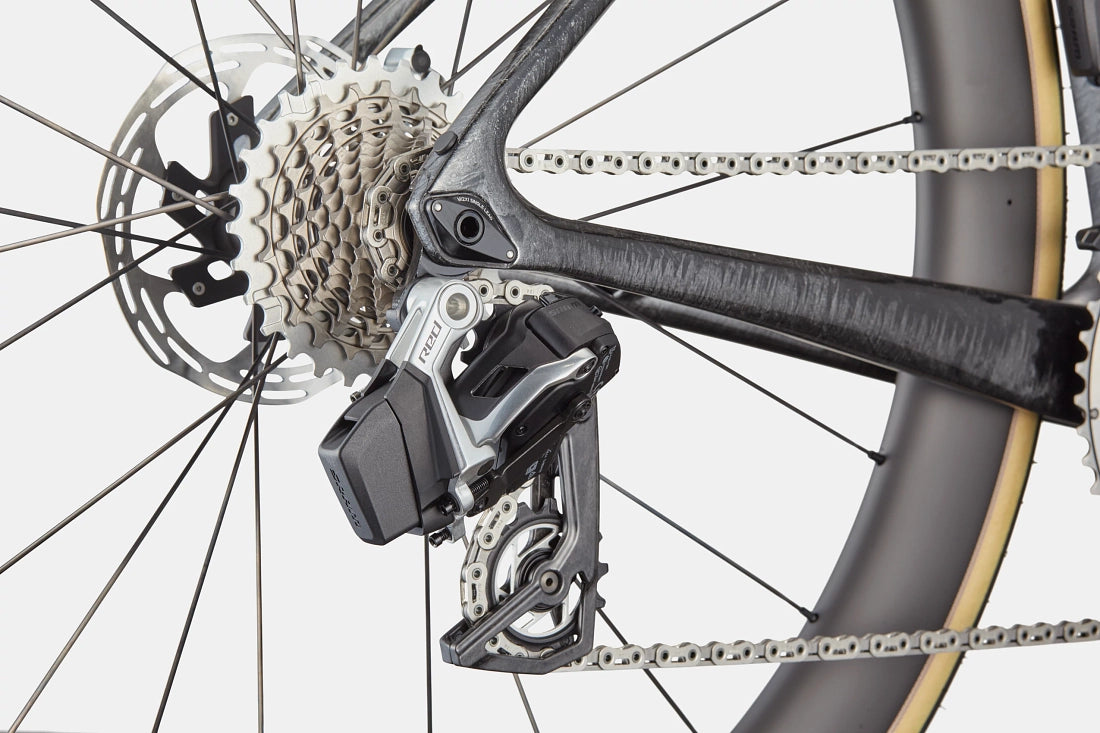

• Rear Derailleur

  SRAM RED AXS
• Front Derailleur

  SRAM RED AXS

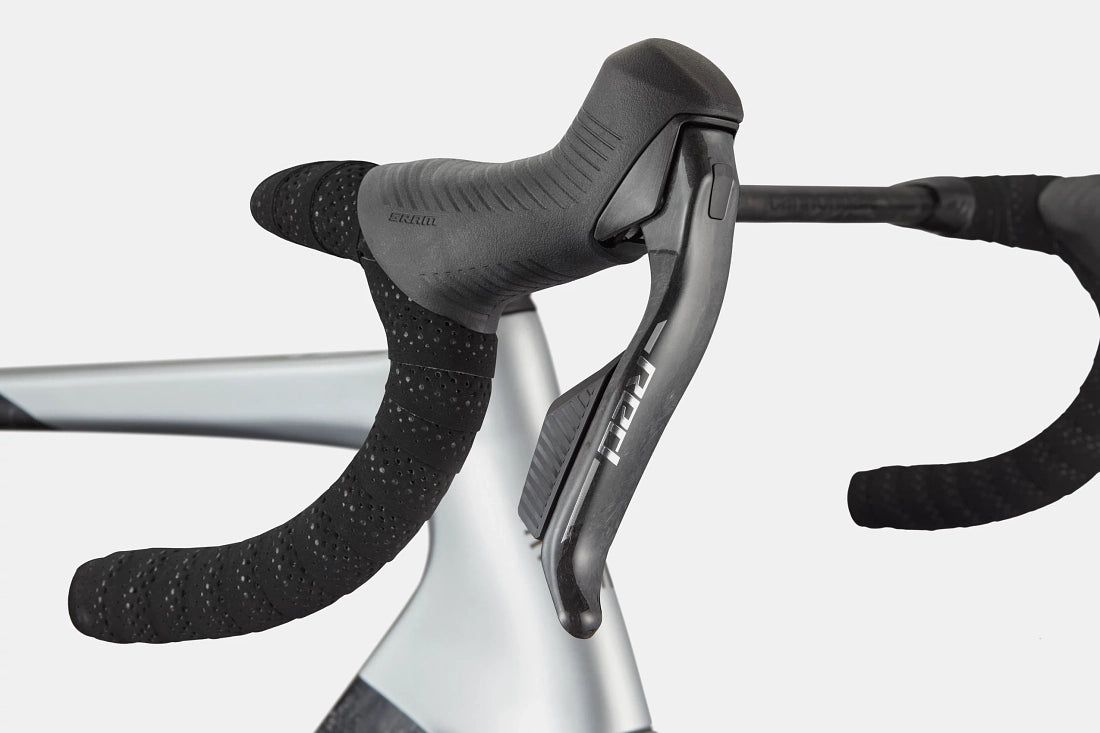

• Shifters

  SRAM RED AXS, 2x12
• Chain

  SRAM RED, 12-speed

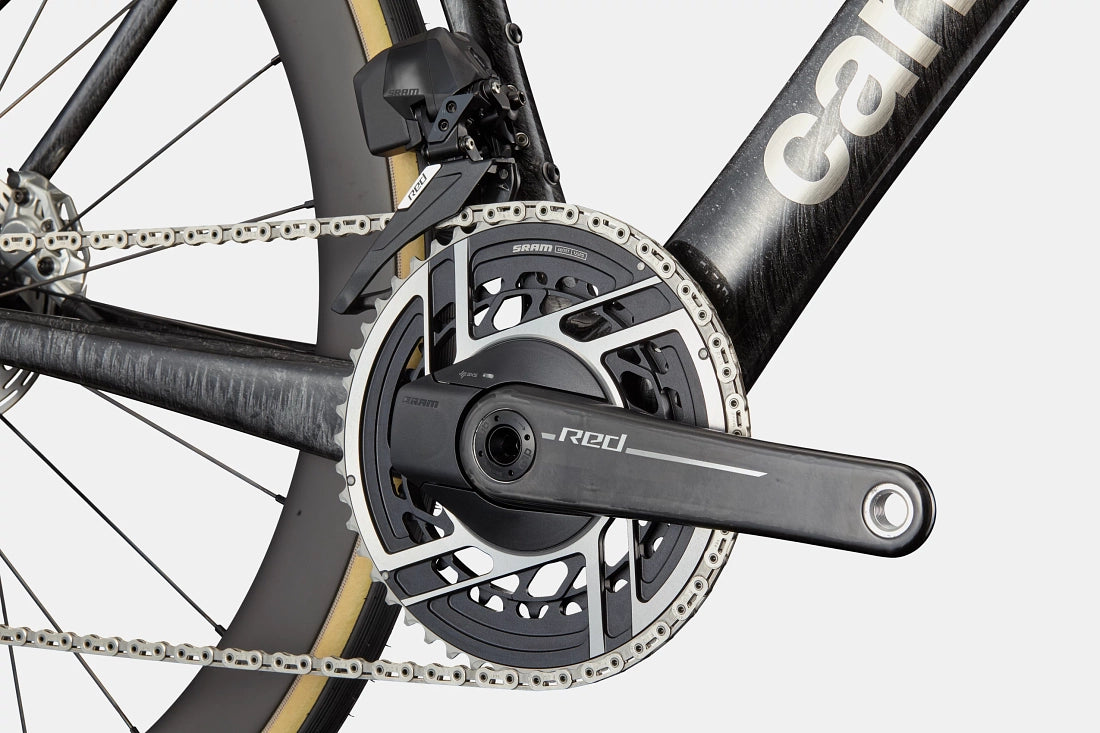

• Crank

  SRAM RED AXS Power Meter, 48/35
• Rear Cogs

  SRAM XG-1290, 10-28, 12-speed
• Bottom Bracket

  CeramicSpeed BSA DUB, Coated Version

Brakes

• Brakes

  SRAM RED AXS, Paceline X 160/160mm rotors
• Brake Levers

  SRAM RED AXS

Wheels

• Front Hub

  DT Swiss 180, SINC ceramic bearings, centerlock, straightpull, 12x100mm
• Rear Hub

  DT Swiss 180, SINC ceramic bearings, centerlock, straightpull, 12x142mm, Ratchet EXP 36
• Rims

  Reserve Turbulent Aero 42 Front / Turbulent Aero 49 Rear, carbon, tubeless ready
• Spokes

  Sapim CX-Ray Aero straight pull
• Tire Size

  29
• Wheel Size

  700c
• Tires

  Vittoria Corsa PRO TLR, 700x29, Wide Rim, tubeless-ready
• Front Tire

  Vittoria Corsa PRO TLR, 700x29, Wide Rim, tubeless-ready
• Rear Tire

  Vittoria Corsa PRO TLR, 700x29, Wide Rim, tubeless-ready

Components

• Handlebar

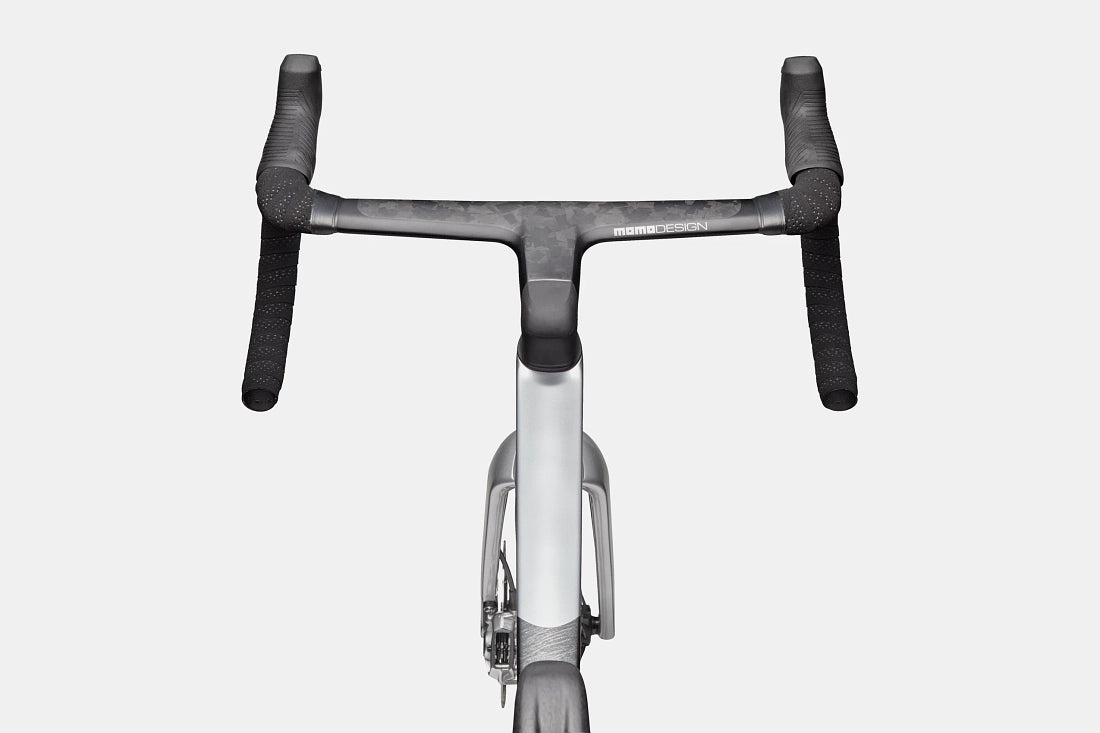

  Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
• Stem

  Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
• Grips

  Fizik Tempo Bondcush Soft, 3mm
• Saddle

  Fizik Vento Antares 00, carbon shell and rails, 140mm
• Seatpost

  Cannondale C1 Aero 40 Carbon, 0mm offset (44-48cm), 20mm offset (51-61cm)

Extra

• Extra 1

  Cannondale Gripper Aero Bottles & ReGrip Aero Cages, Dual Socket Bottom Bracket Tool, Fillmore tubeless valves, SRAM AXS charger
