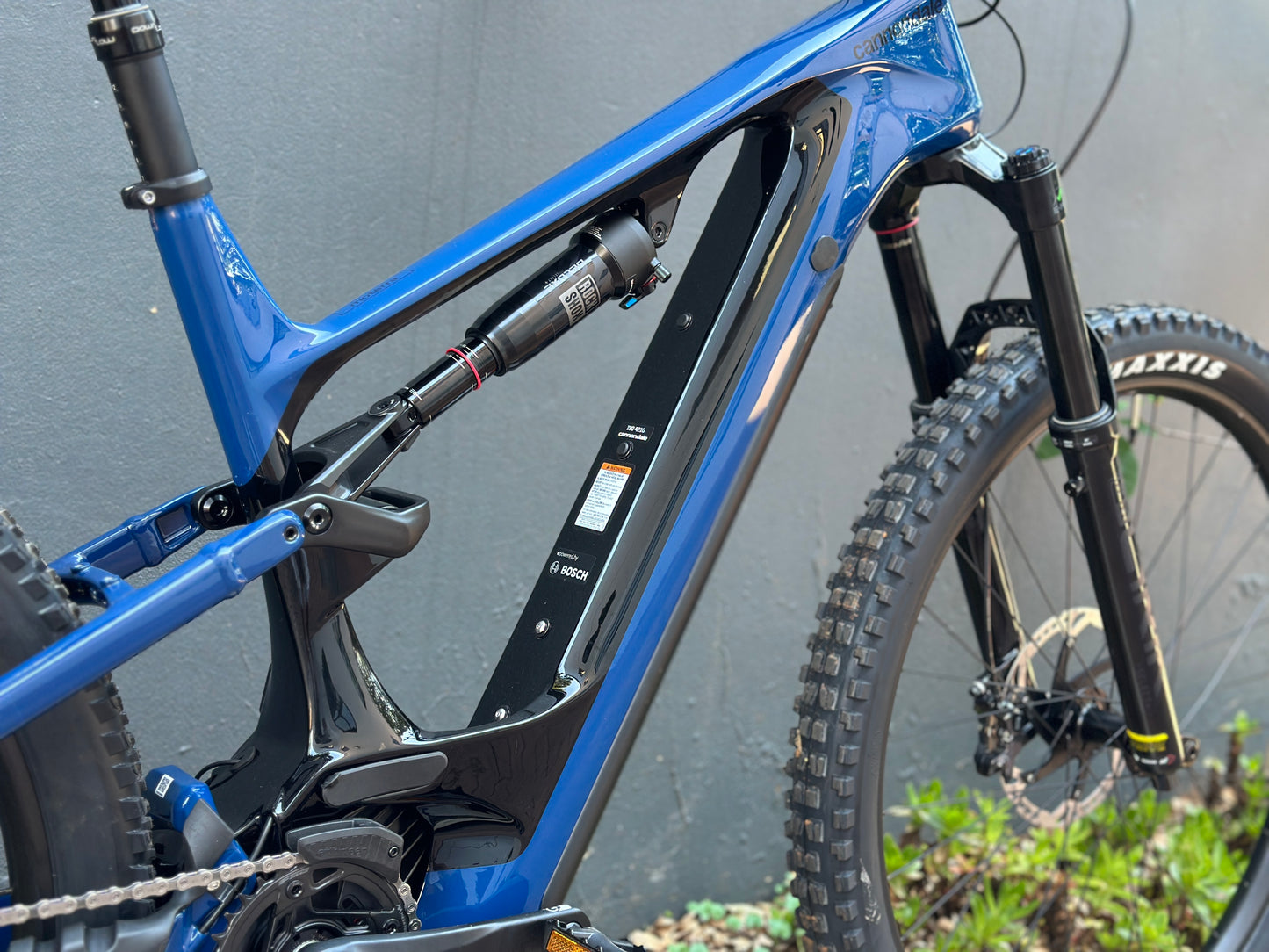

Frame
Moterra Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount

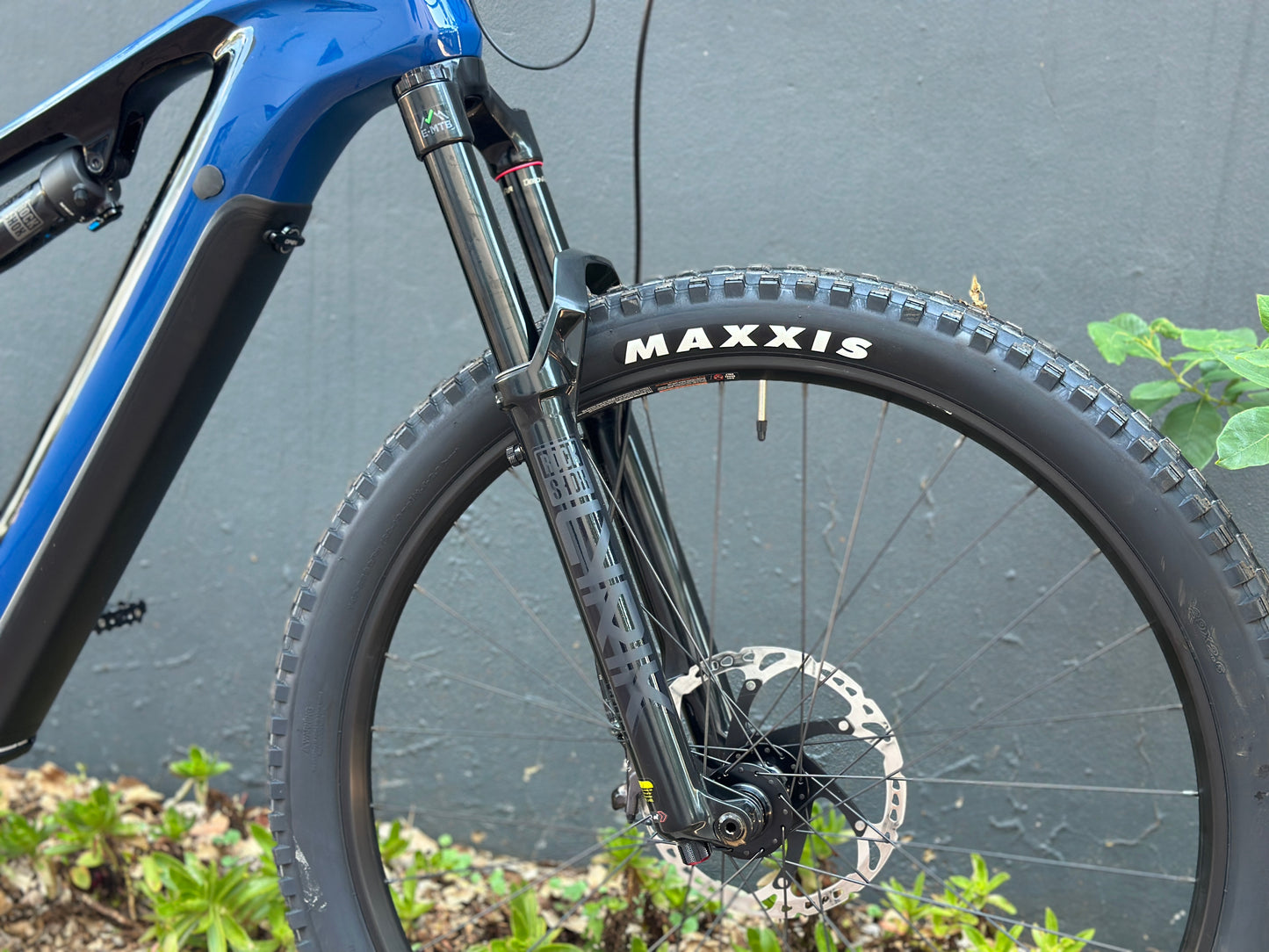

Fork
RockShox Lyrik Select+, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset
Headset
Acros integrated sealed bearing, tapered

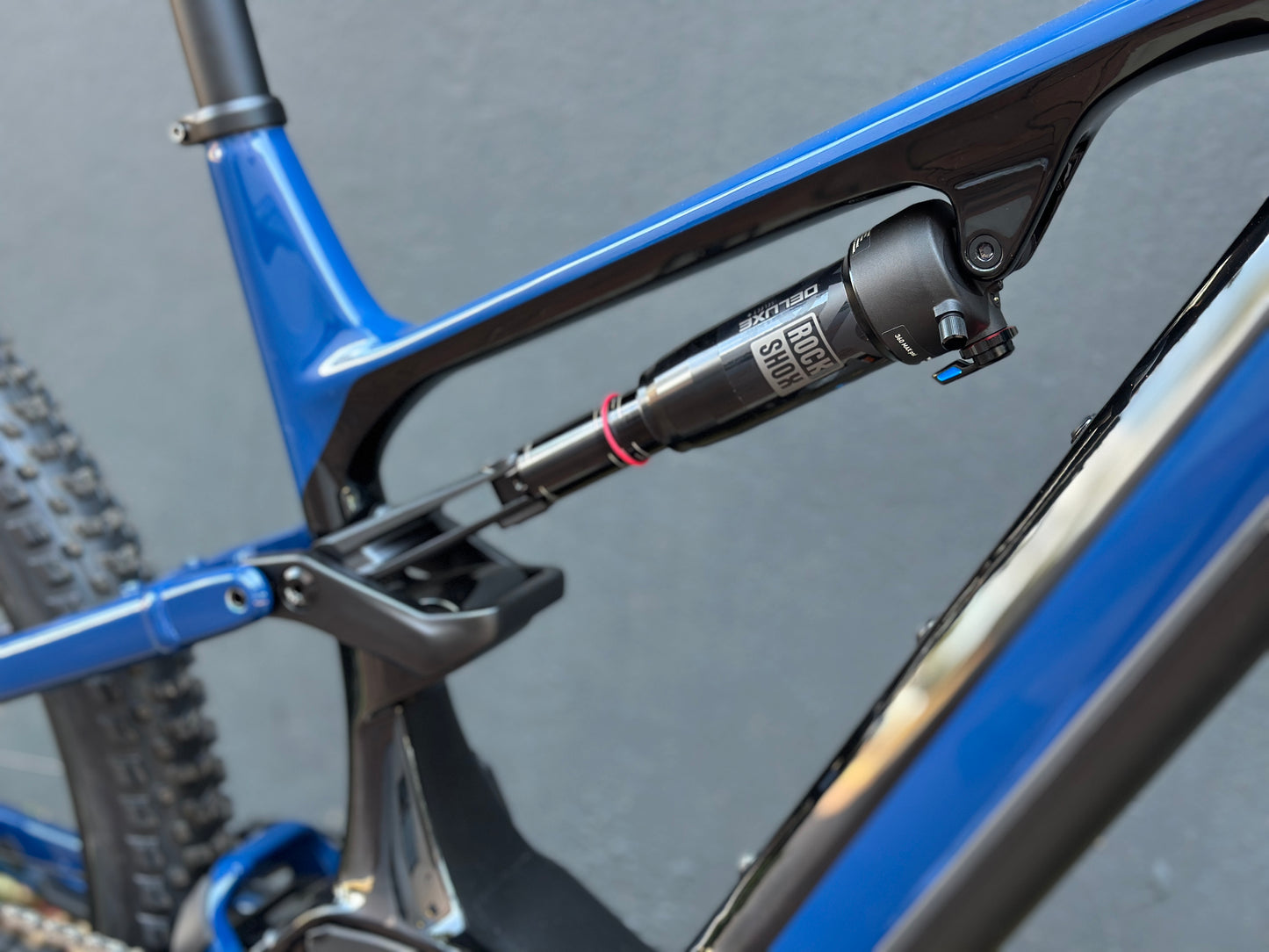

Rear Shock
RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound
Drive Unit
Bosch Performance Line CX 250W
Battery
Bosch PowerTube, 750Wh
Charger
Bosch 4A

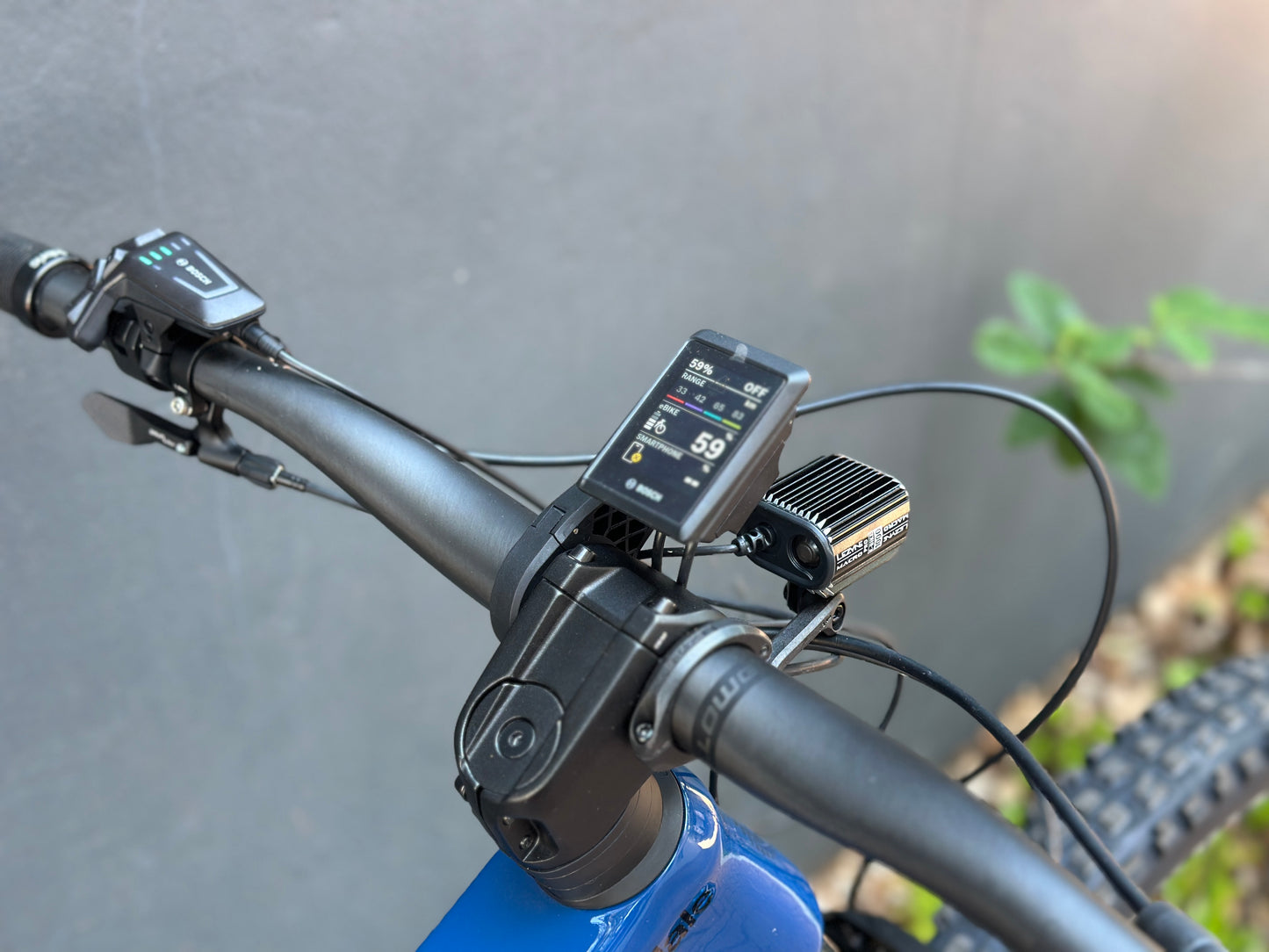

Display
Bosch Kiox 300 w/ LED remote
Certifications
UL2849

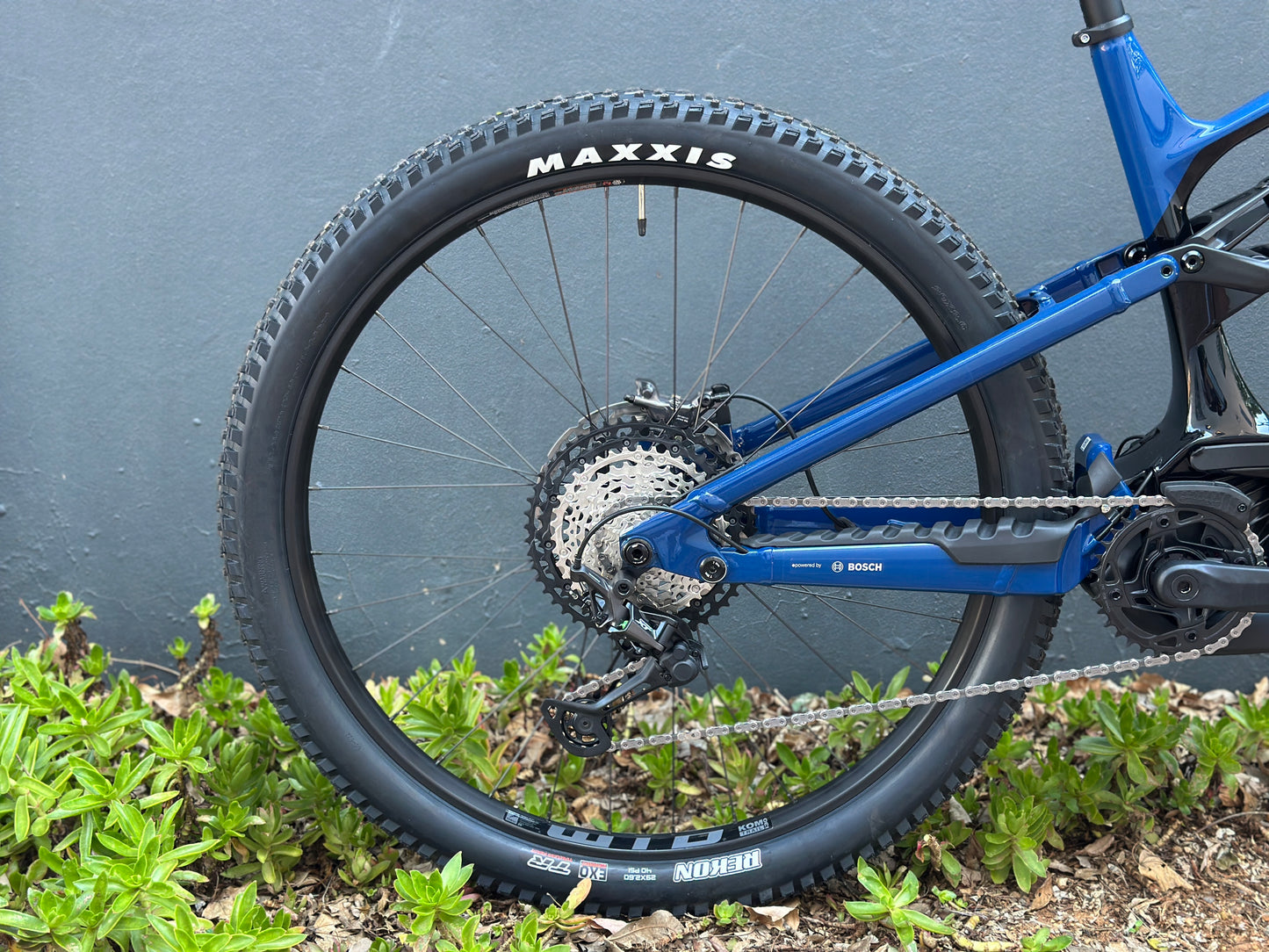

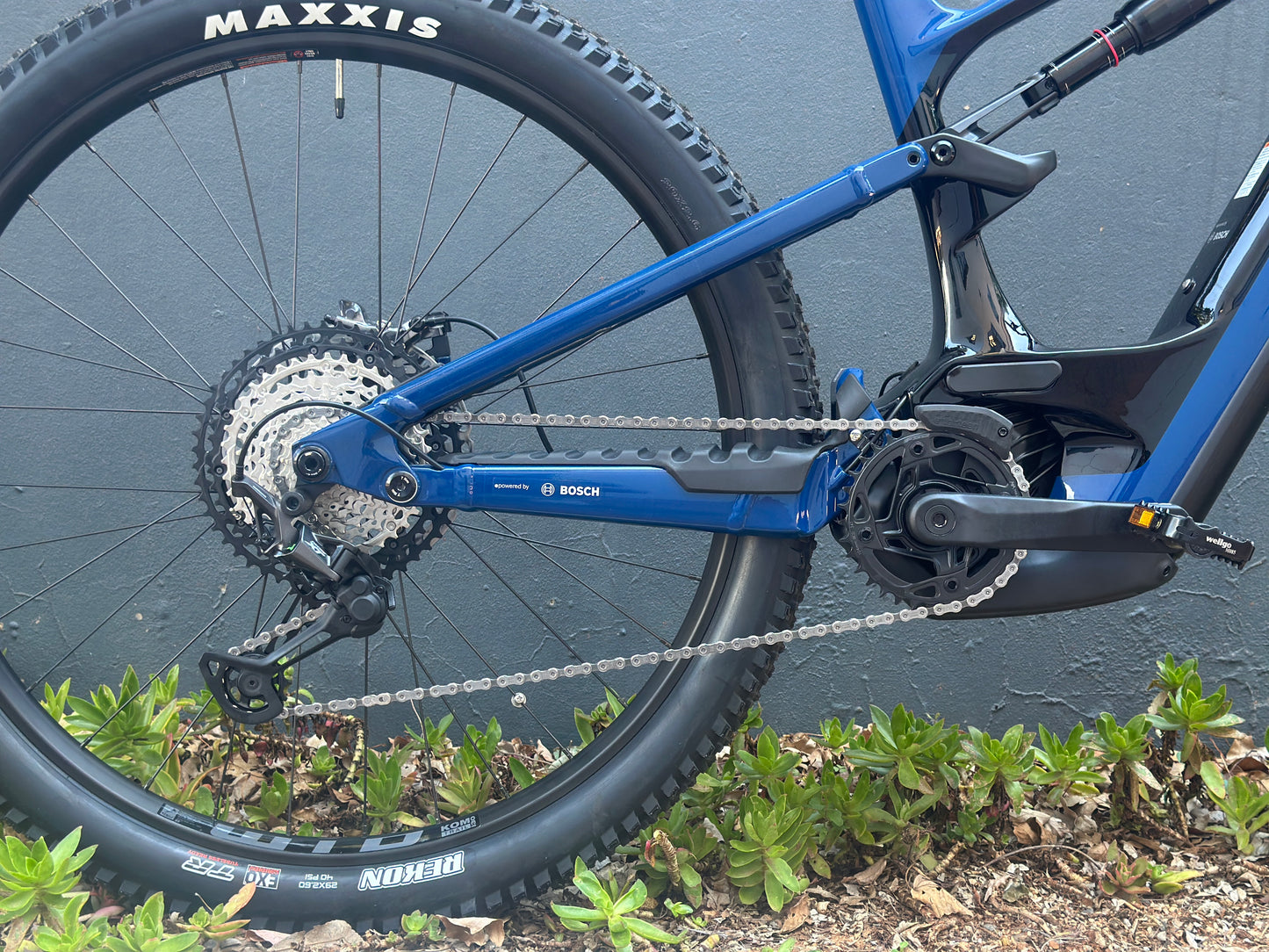

Rear Derailleur
Shimano XTR
Shifters
Shimano XT, 12-speed
Chain
Shimano XT, 12-speed
Crank
FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
Rear Cogs
Shimano XT, 10-51, 12-speed
Brakes
Shimano XT 8120 4-piston hydraulic disc, 203/203mm RT76 rotors
Brake Levers
Shimano XT hydraulic disc
Rims
WTB KOM Trail i30 TCS, 32h, tubeless ready
Spokes
DT Swiss Champion
Tire Size
2.6
Wheel Size
29
Hubs
(F) Formula 15x110mm thru-axle / (R) DT Swiss, 12x148mm thru-axle
Tires
(F) Maxxis Minion DHF, 29x2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready

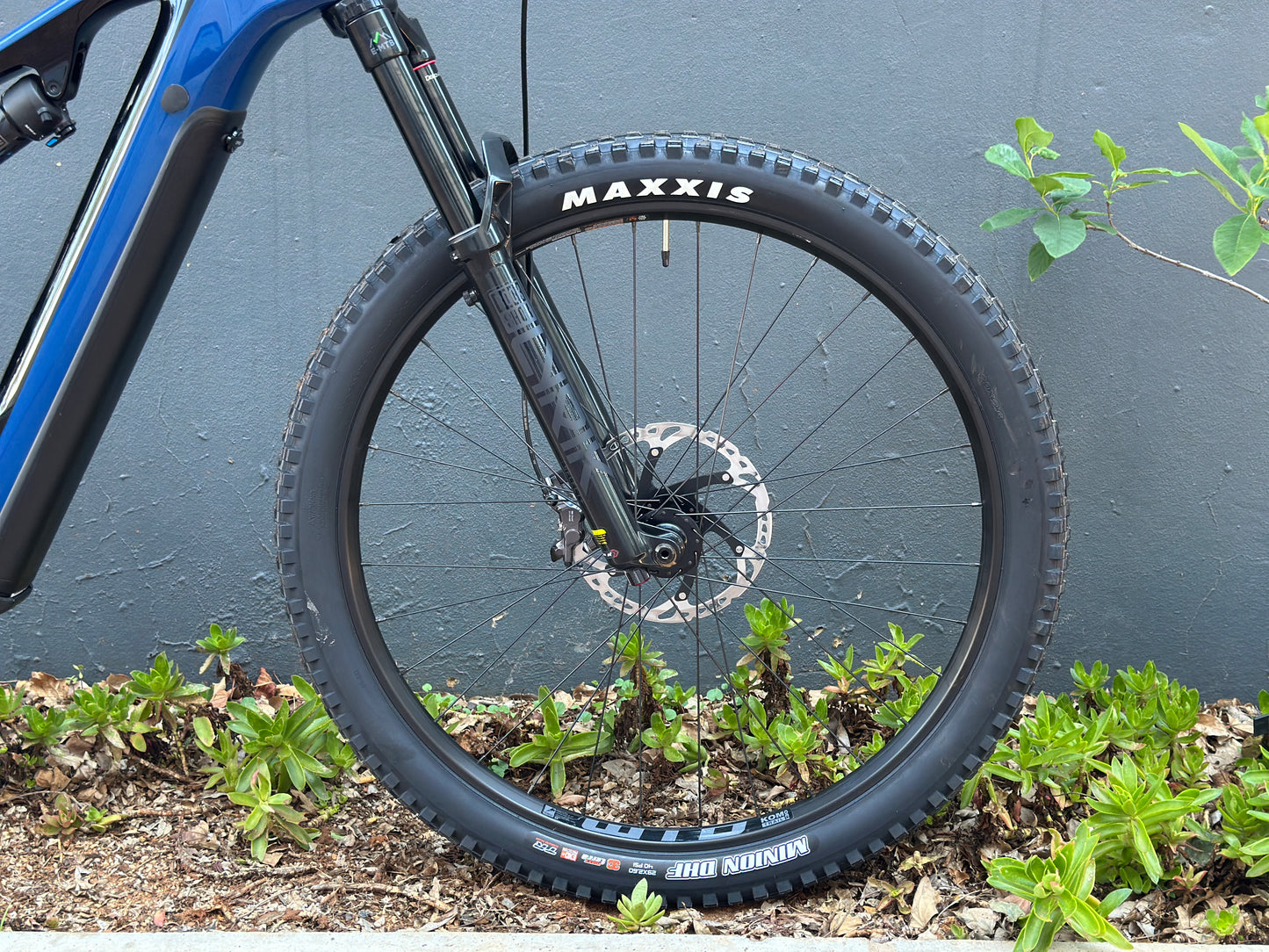

Front Tire
Maxxis Minion DHF, 29x2.6", EXO, tubeless ready
Rear Tire
Maxxis Rekon, 29x2.6" (27.5x2.6" - size Small), EXO, tubeless ready

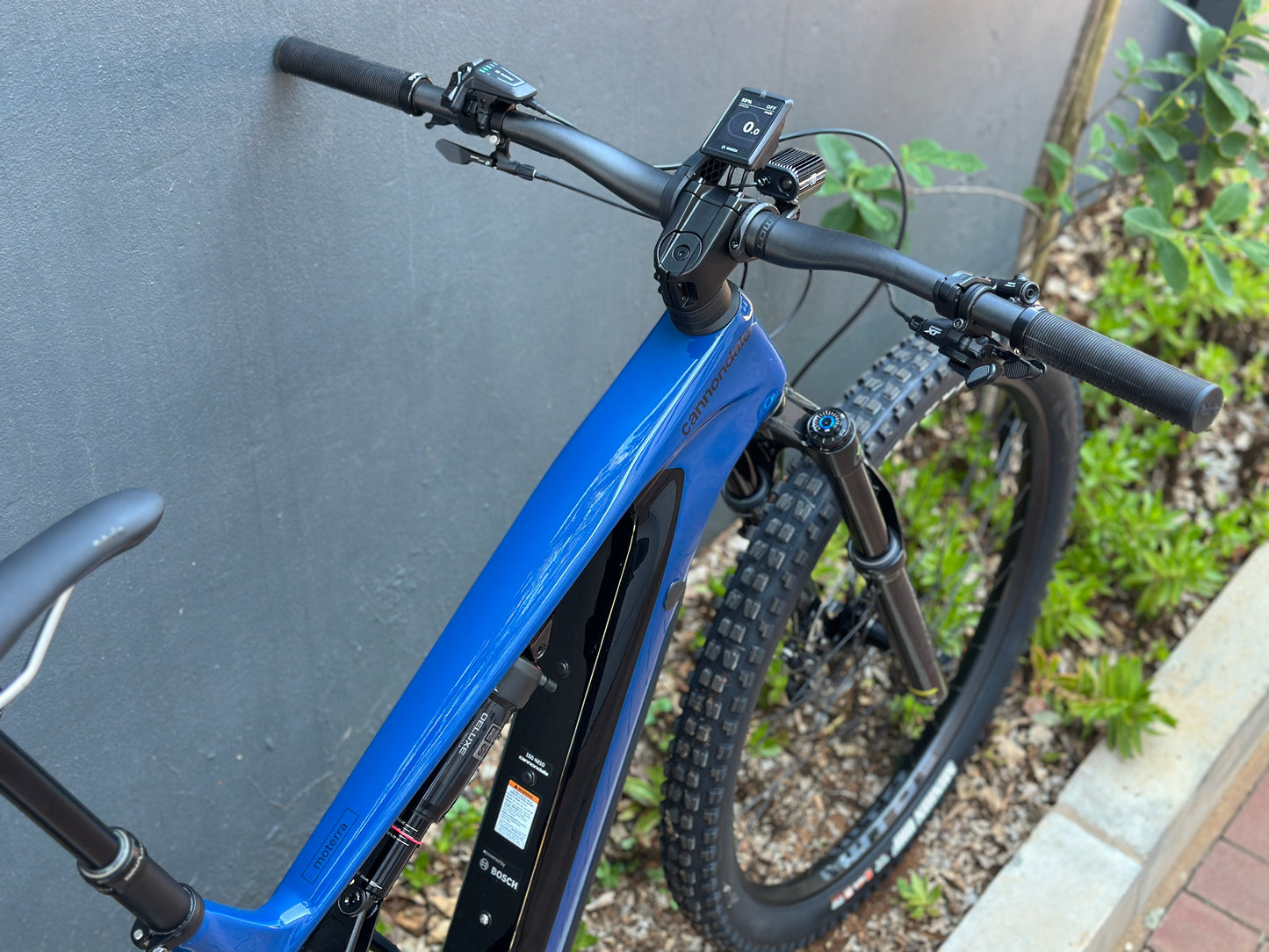

Handlebar
HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm
Stem
Cannondale 2, 6061 Alloy, 35mm, 0°
Grips
Fabric FunGuy
Saddle
Fabric Scoop Shallow Elite, cro-mo rails

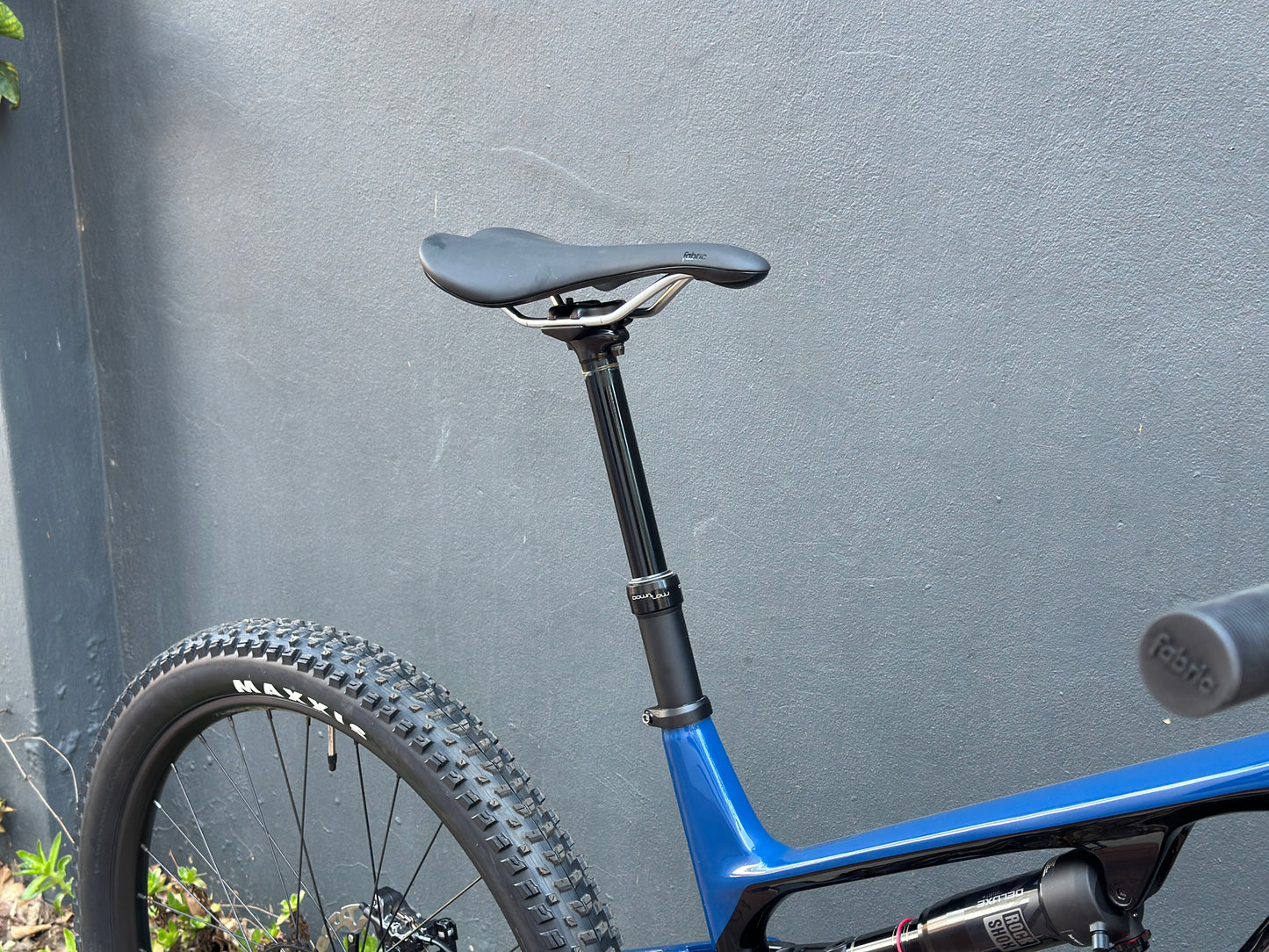

Seatpost
Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL)
