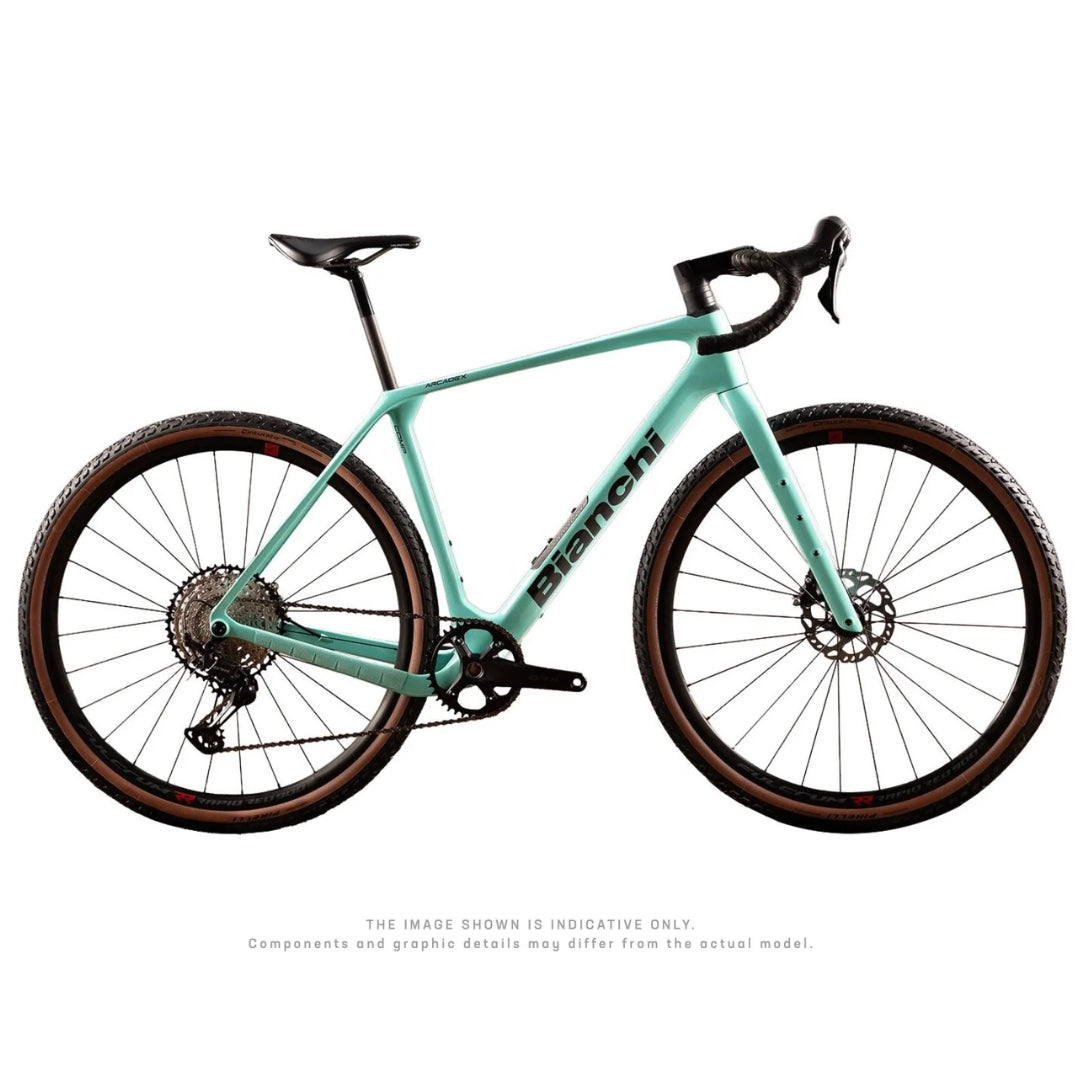

Bianchi Arcadex Comp Carbon (2024)
Bianchi Arcadex Comp Carbon (2024)
START RIDING FURTHER

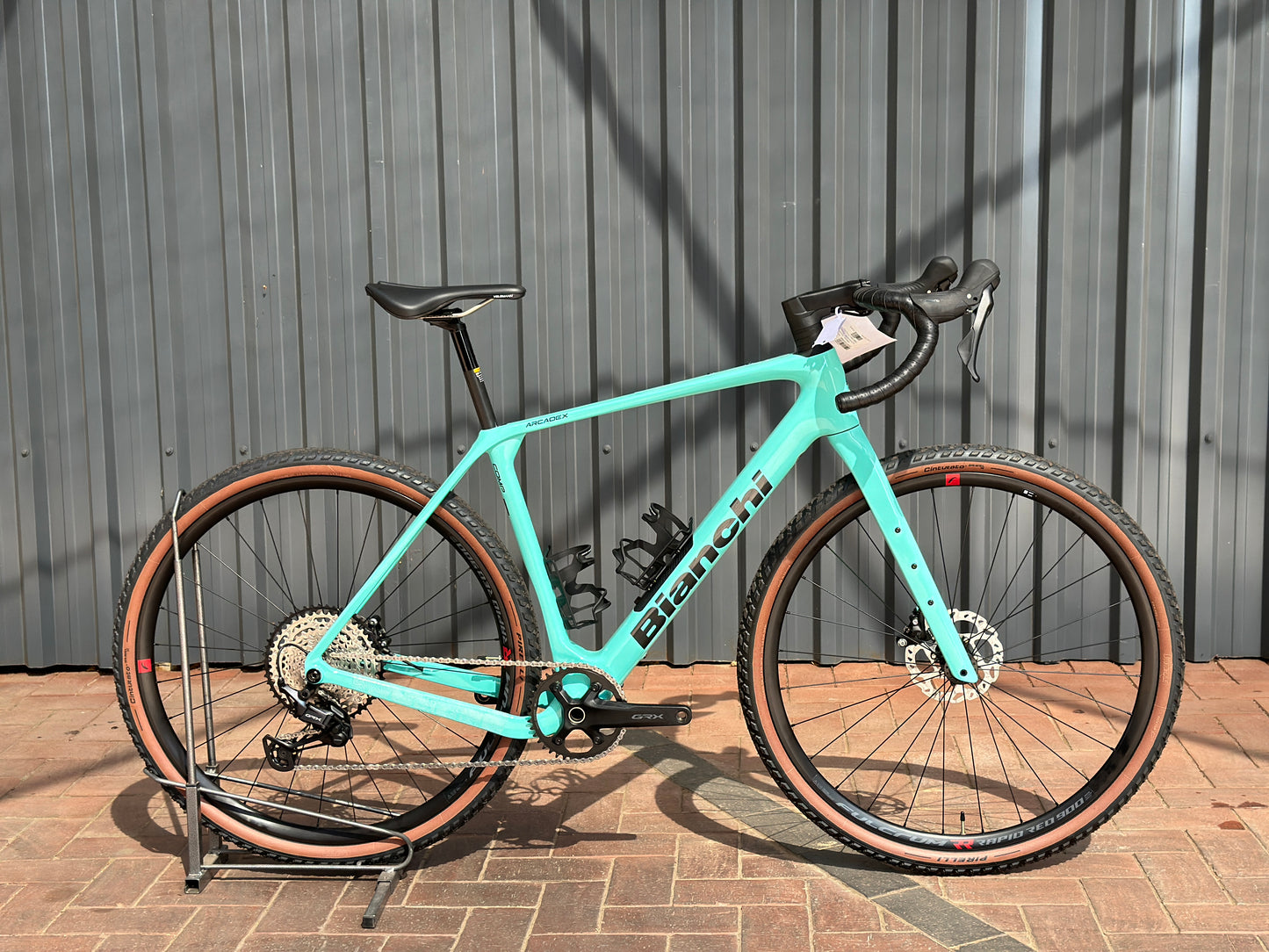

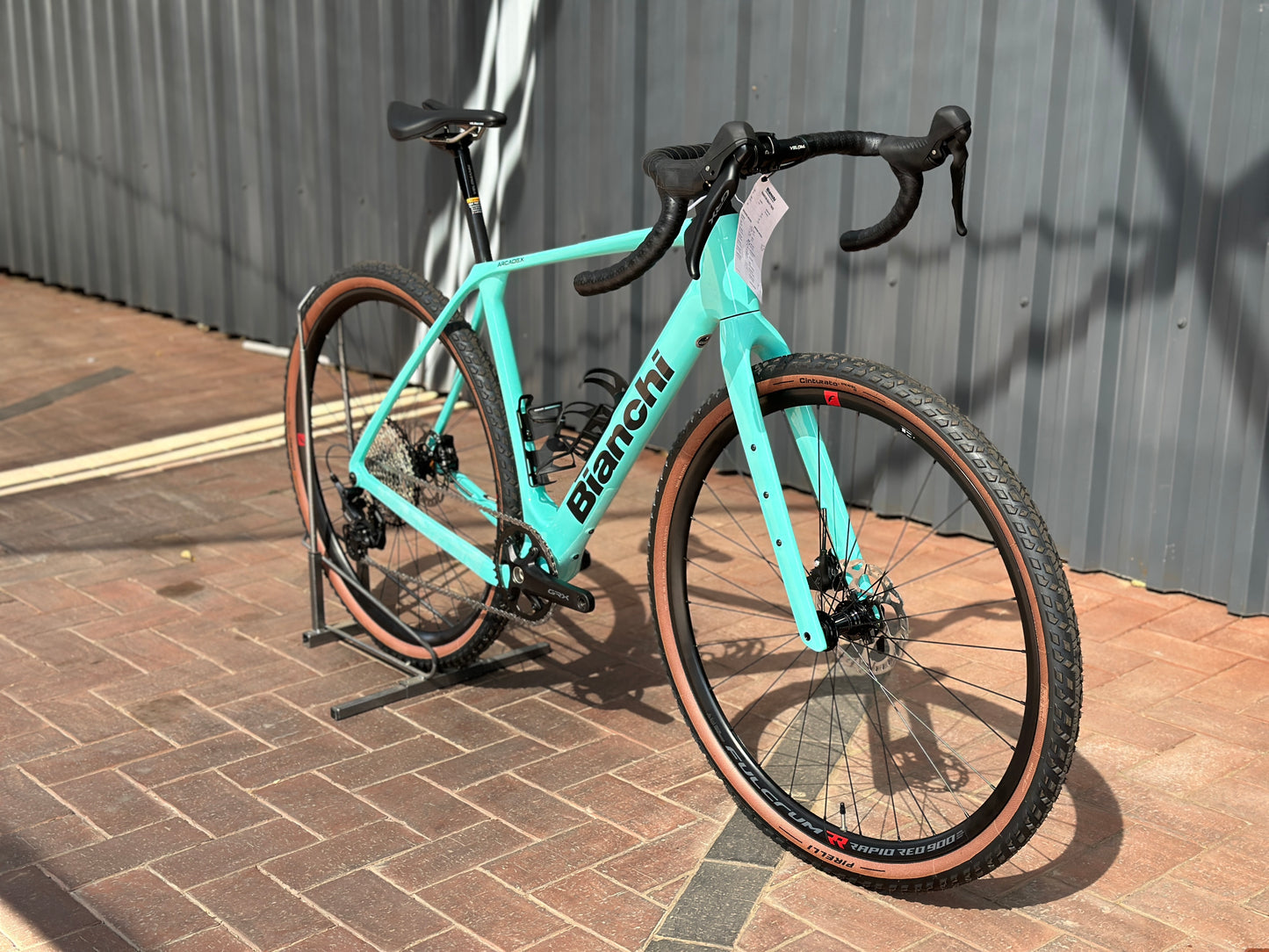

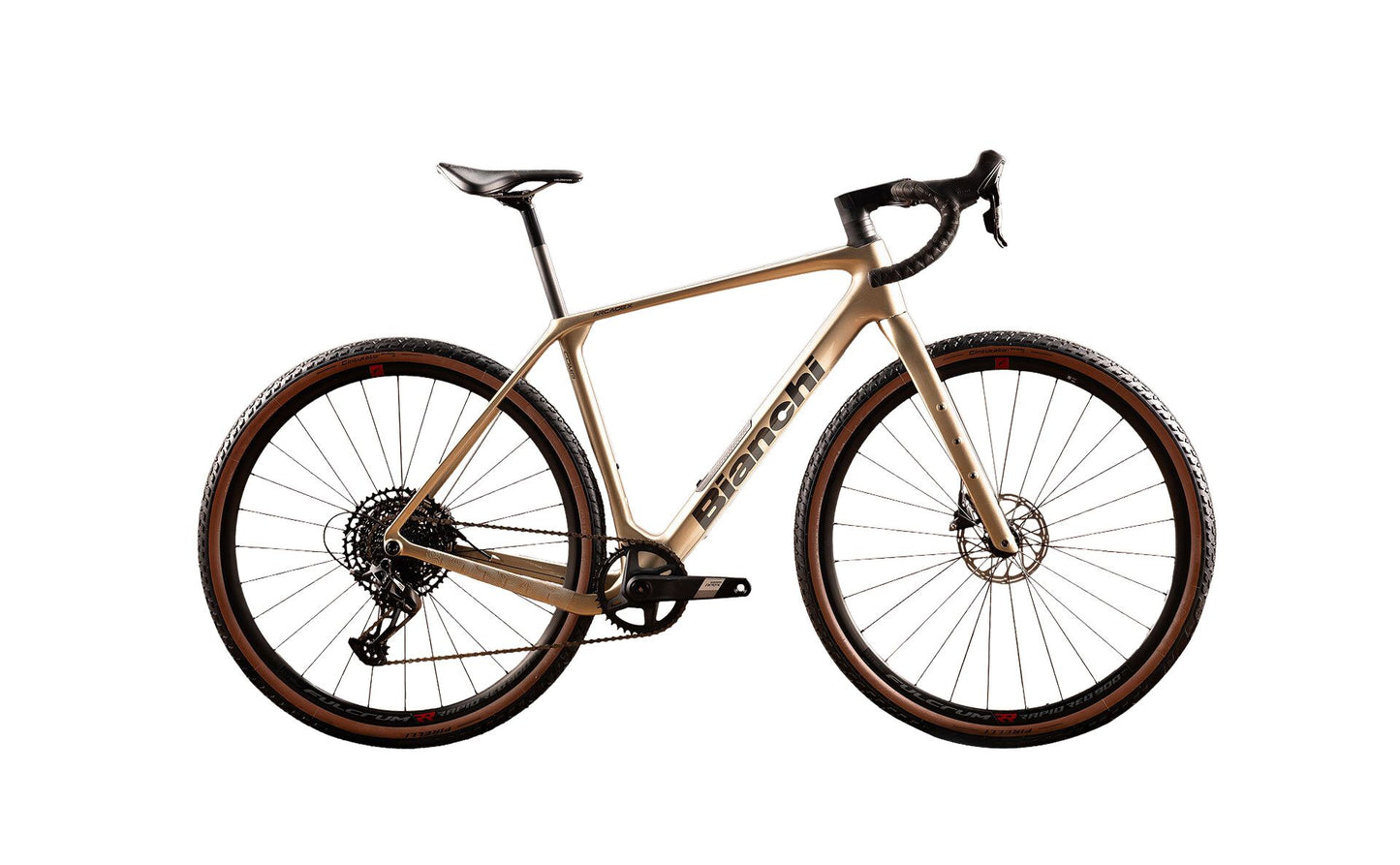

The new Arcadex COMP runs Fulcrum Rapid Red wheels, which will roll tough on challenging terrain and is offered with either Shimano GRX 610 or SRAM Apex mechanical groupsets. Our designers have created two colourways for the Comp: classic celeste and graphite, or metallic sand with graphite. Both are full glossy finishes.
FRAME

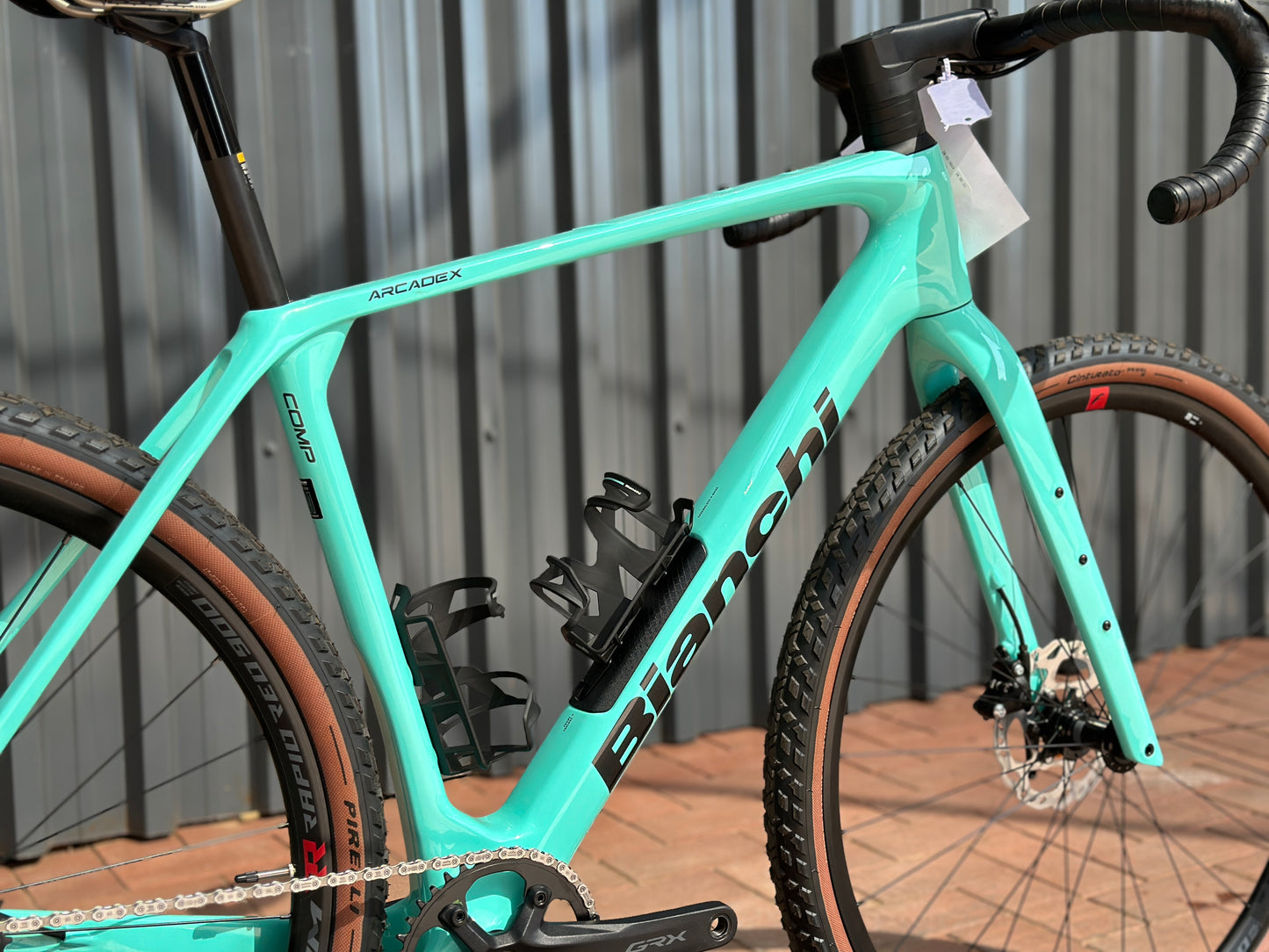

Arcadex Comp Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility:
FORK
Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8"" Material: Epoxy - SM Carbon Fiber Composite
HEADSET
Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal
DRIVETRAIN
SHIFTERS
Shimano GRX 610 ST/BL-RX610
REAR DERAILLEUR

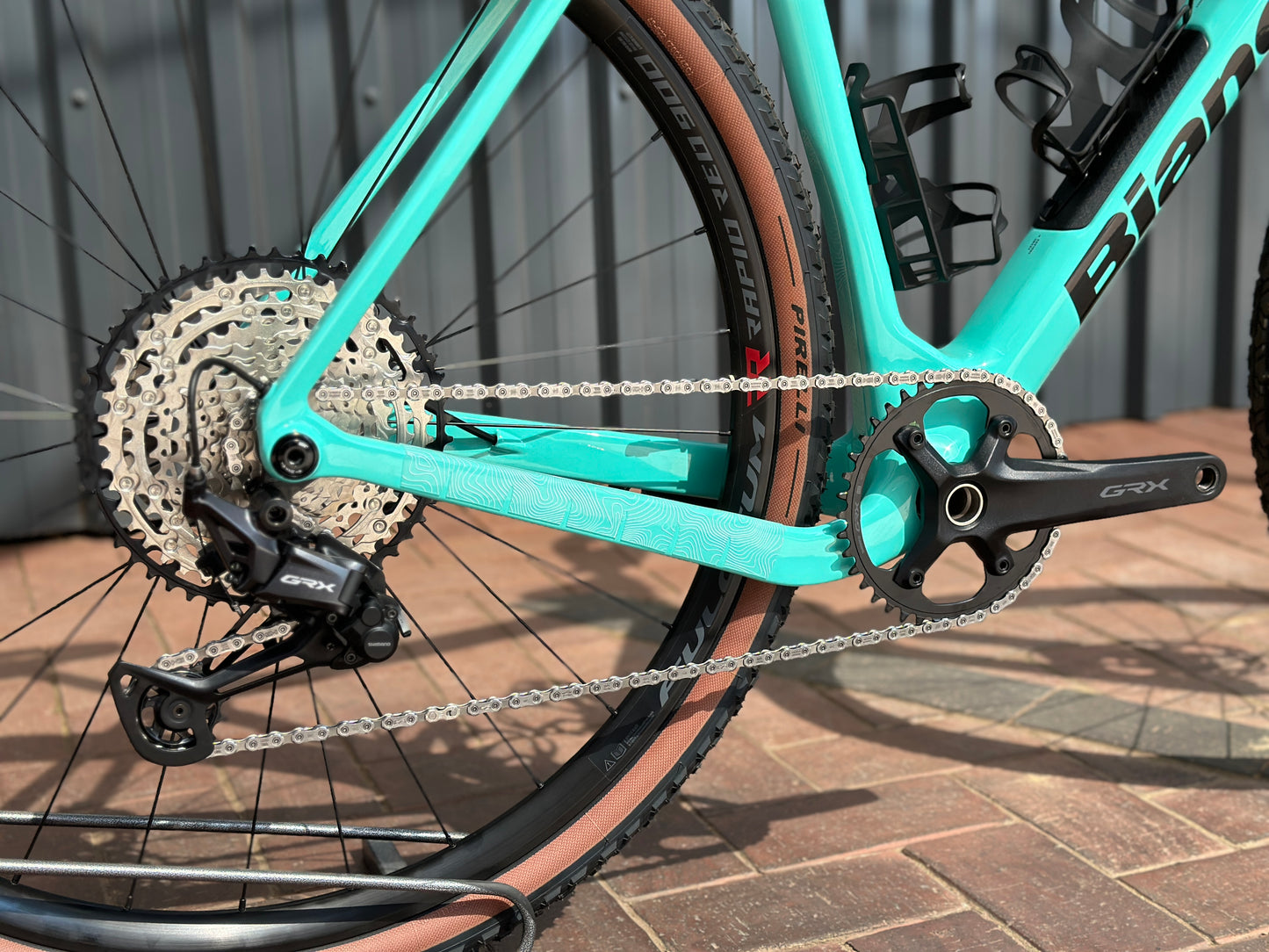

Shimano GRX 822 RD-RX822, SGS Maximum Cassette Sprocket 51T
CRANKSET
Shimano GRX 610 FC-RX610-1, 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)
BOTTOM BRACKET
Shimano SM-BB72-41B, press fit
CHAIN
Shimano CN-M7100
CASSETTE
Shimano CS-M7100-12 speed, 11-51T Driver body Interface: MicroSpline
BRAKES
BRAKES
Shimano Hydraulic Brake, BR-RX400
ROTOR
Shimano SM-RT70 IceTech Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)
WHEELS
WHEELS

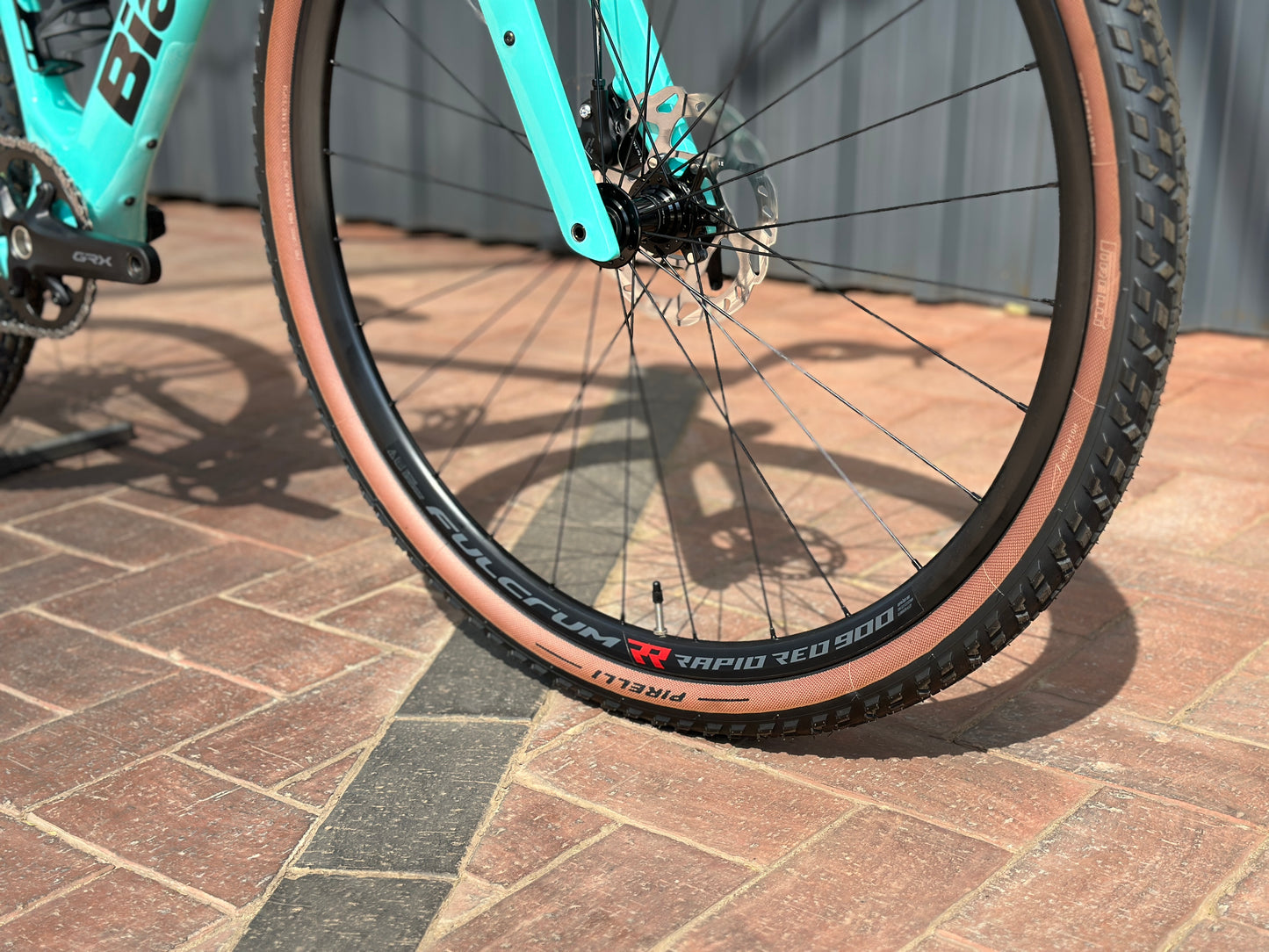

Fulcrum RapidRed 900 2-Way Fit Ready (for clincher and tubeless ready) Rim Diameter: 700C Material: Aluminum Alloy Rim Height: 24 mm Inner Wigth Channel: 22 mm
TIRE
Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall
COCKPIT
STEM

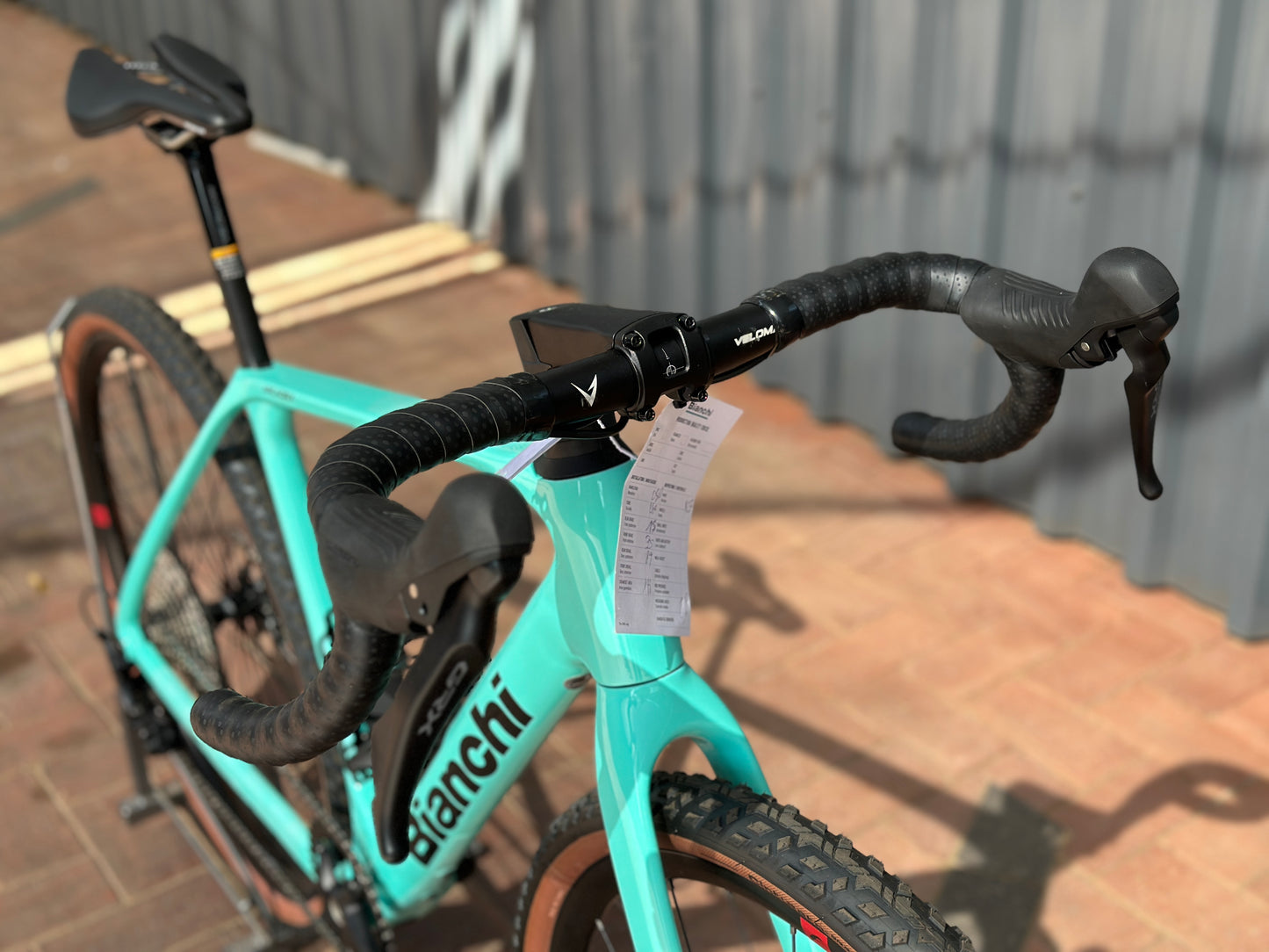

Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8"" (28.6mm) HB interface Diameter: 1-1/4"" (31.8mm) Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61)
HANDLEBAR

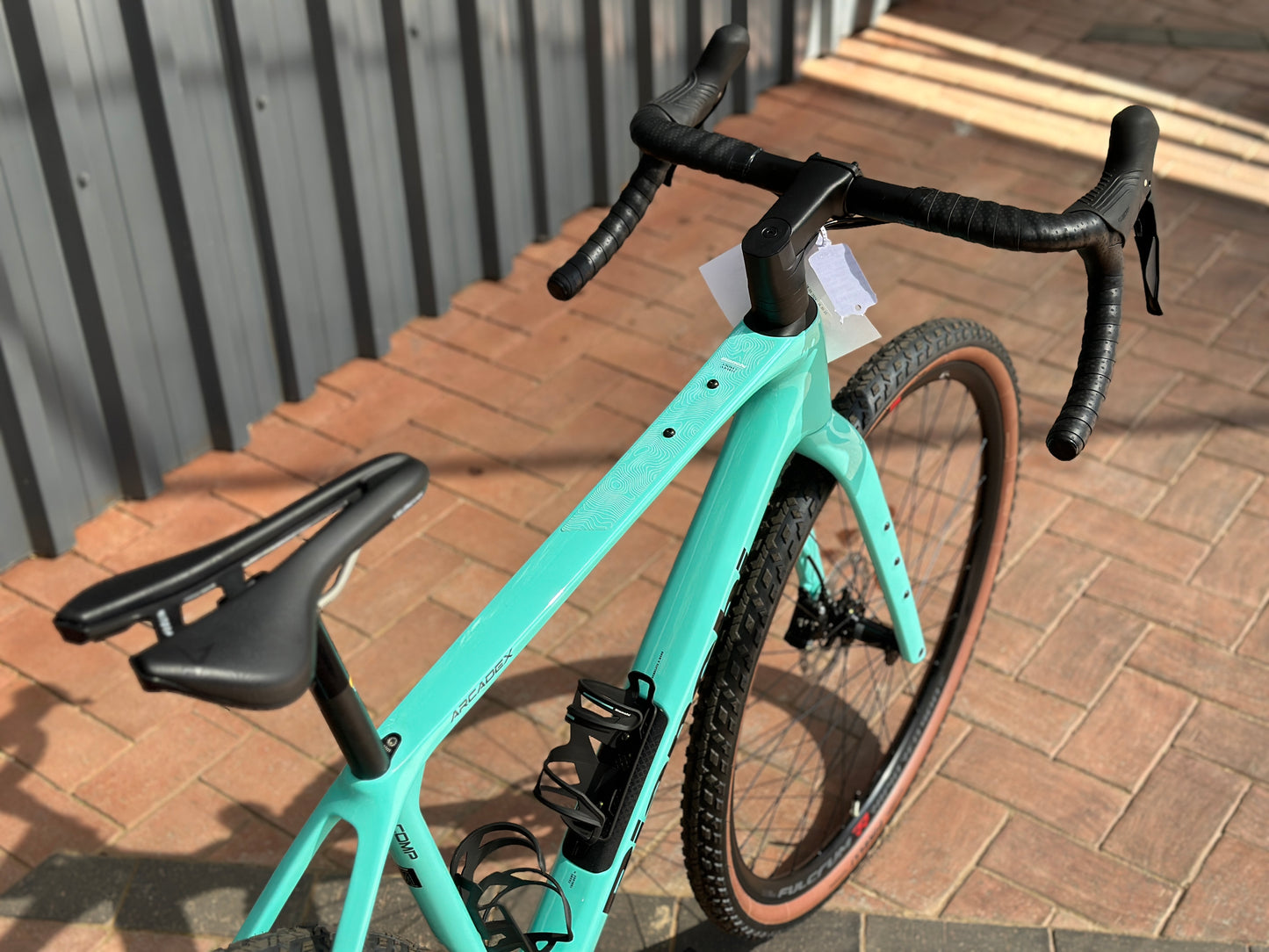

Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4"" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61)
GRIPS
Bianchi Hexagon tape 2.5mm thickness, Full black
SADDLE
SEATPOST
Velomann Carbon UD SeatPost O.D: Ø27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), 400mm-LG(58) XL(61)
SADDLE
Velomann MITORA 149 H2 cover: soft touch, padding: foam, shell: nylon carbon rails: Steel lenght: 250mm width: 149mm
