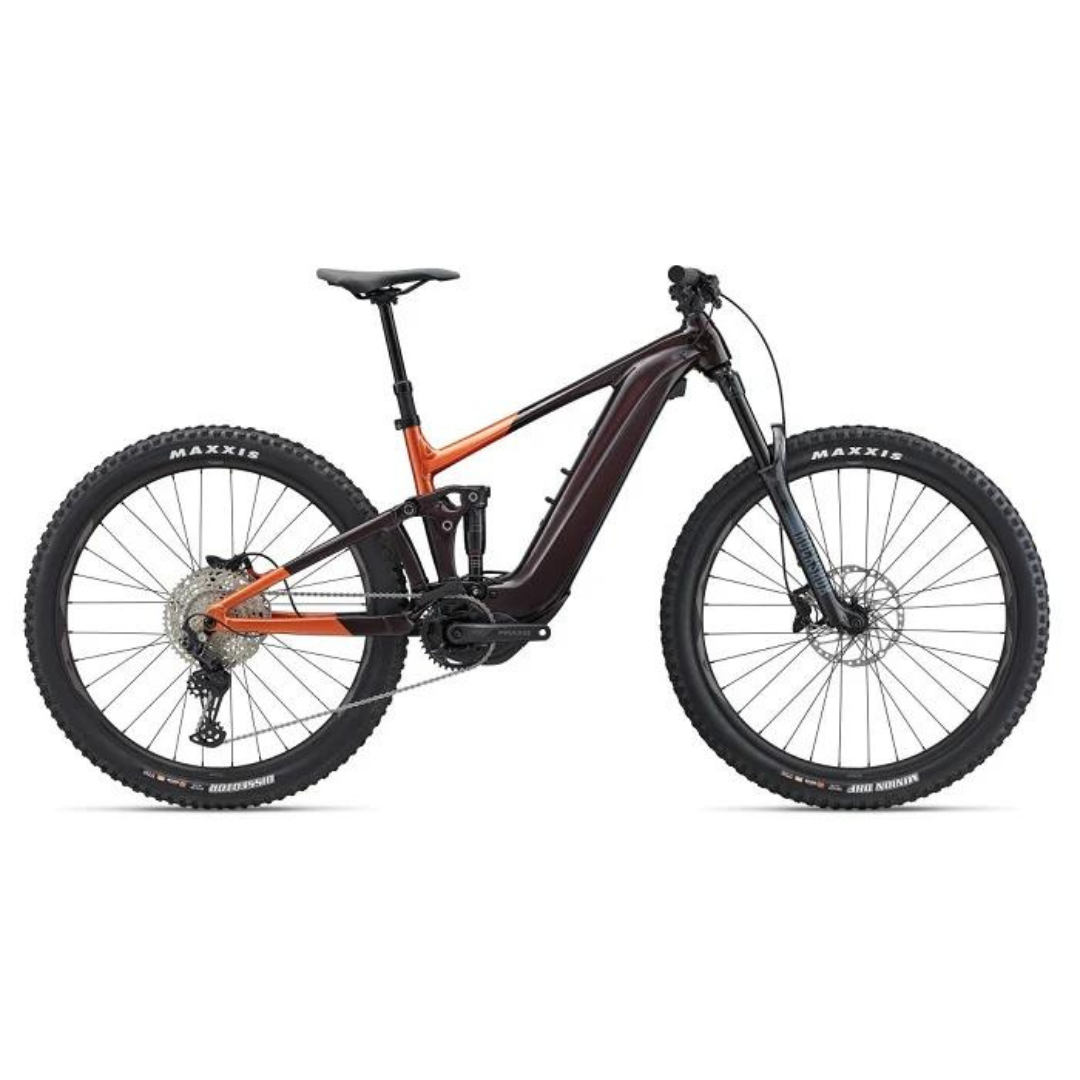

Giant Trance X E+ 3 Pro (2023)
Giant Trance X E+ 3 Pro (2023)
Faster up the climbs, longer loops, more singletrack fun on any given day. Free yourself to push your trail riding to the next level with this powerful, fun and smooth-riding E-bike.
KEY PERFORMANCE FACTORS
Smooth, Powerful Support
SyncDrive Pro motor delivers 85Nm of torque and tunable support ratios up to 400 percent. Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance on steep climbs and at low speeds.
Trail-Riding Control
Optimized Maestro suspension for 29-inch wheels with 140mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents.
Adaptable To The Terrain
Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.
- Range
- Extreme: 70 km 43 miles
- Good: 130 km 80 miles
- Ideal: 230 km 142 miles
Specifications:
MOTOR
Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology
CONTROLLER
Giant RideControl Ergo3, grip integrated remote
DISPLAY
Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display
BATTERY
Giant EnergyPak 750Wh, Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible
CHARGER
Giant EnergyPak 6A smart charger, 60% in 2:10h
CONNECTIVITY
Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
SIZES
S, M, L, XL
COLORS
Cordovan/Copper Coin
FRAME
ALUXX SL-grade Aluminum, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible
FORK
RockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimized
SHOCK
Rock Shox Deluxe Select R, DebonAir, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
HANDLEBAR
Giant Contact 35 Trail, 35x780mm
GRIPS
Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
STEM
Giant Contact SL 35
SEATPOST
Giant Contact Switch, dropper, 30,9mm (S:125/M:150/ L&XL:170)
SADDLE
Giant Romero E
PEDALS
Flat pedals
SHIFTERS
Shimano Deore
FRONT DERAILLEUR
MRP HD2 co-moulded chain guide
REAR DERAILLEUR
Shimano Deore, 12-speed
BRAKES
Shimano BR-M420, 4-piston, hydraulic disc, 203mm
BRAKE LEVERS
Shimano Deore, I-spec EV
CASSETTE
Shimano CS-M6100-12, 10-51T, 12-speed
CHAIN
KMC e.12 Turbo, EcoProteq, e-bike optimized
CRANKSET
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, S:160, M/L:165, XL:170)
BOTTOM BRACKET
n/a
RIMS
Giant AM30, Tubeless ready, 30mm inner width, 29in
HUBS
Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
SPOKES
Sapim E-Lite [R] Race [F], e-bike optimized
TIRES
Maxxis Minion DHF 29x2.6in foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6in Foldable, Tubeless, EXO+, 3C MaxxTerra [R]
EXTRAS
Tubeless kit (liquid, valves, levers, manual, tool)
LOCK
Torx 25 Battery Lock with built-in Torque limiter
WEIGHT
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
