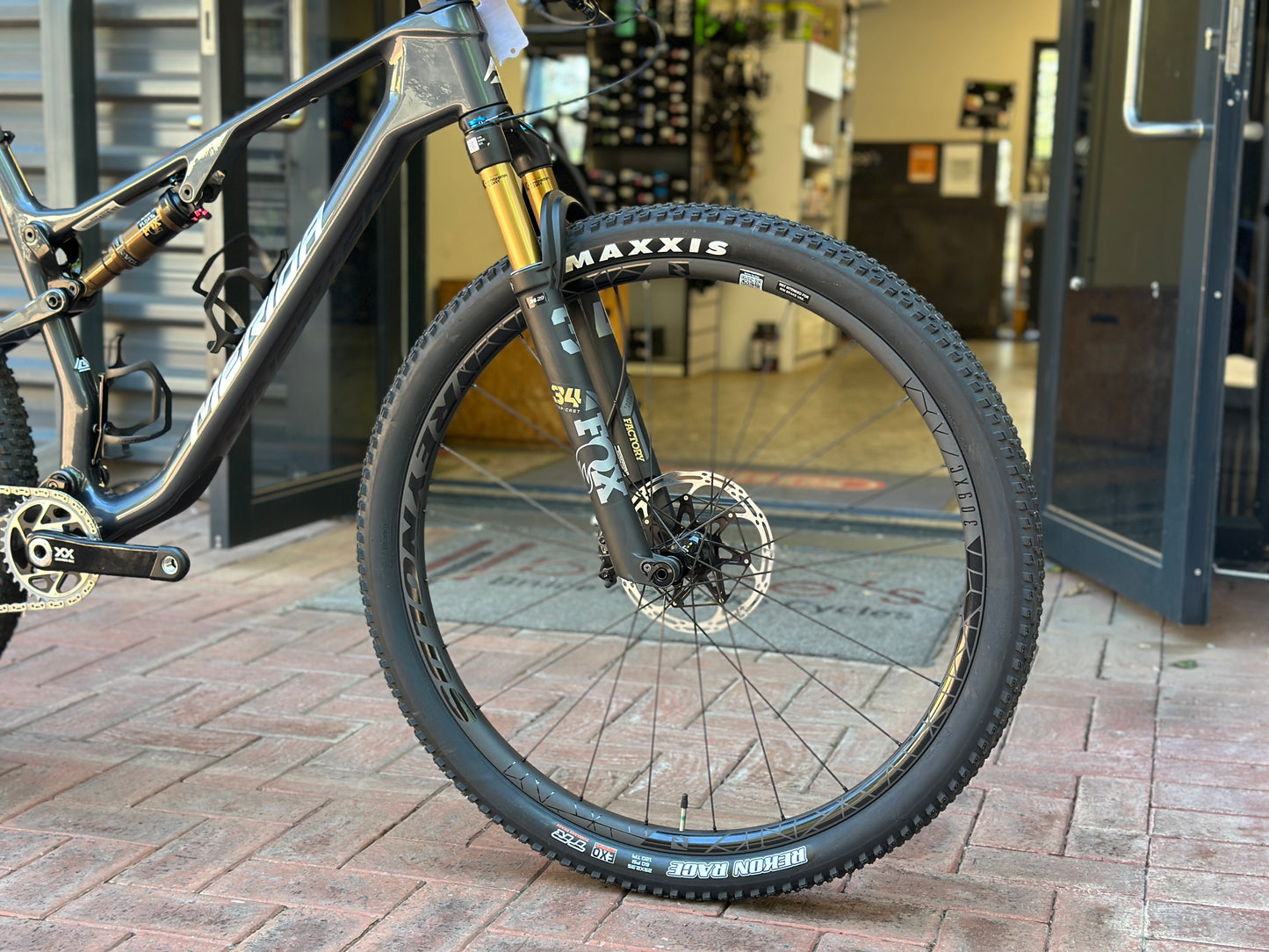

Merida Ninety Six 10K 2024
Merida Ninety Six 10K 2024
FRAME
NINETY-SIX RC CF5 III
100 mm suspension travel
material: carbon
29x2.35" max. wheelsize
148x12 mm axle standard
BSA bottom bracket standard
FORK
Fox 34 Float SC Factory
Air
100 mm suspension travel
Tapered
Remote lockout
44 mm fork offset
29x2.4" max. wheelsize
SHOCK
Fox Float SL Factory
BRAKES
Sram Level Ultimate Stealth
ROTORS
Sram CenterLine X
180 mm
160 mm
HEADSET
Acros ICR MERIDA INTEGRATED neck
HANDLEBAR
MERIDA TEAM CC II
material: carbon
760 mm width
12.5 mm rise
HANDLEBAR STEM
MERIDA TEAM CC III
material: aluminium
31.8 mm diameter
-6° stem angle
incl. MERIDA SMART MOUNT
S:60 mm, M/L/XL:70 mm
GRIP
RockShox TwistLoc grip
DERAILLEUR (R)
Sram XX Eagle SL Transmission AXS
wireless
T-Type
SHIFTERS
Sram AXS POD Ultimate Controller
SEAT POST
Fox Transfer SL
30.9 mm diameter
0 mm setback
S/M/L/XL: 100 mm travel seatpost
SEAT CLAMP
MERIDA EXPERT
SADDLE
SCRATCH M5 PAS NACK
CHAIN
Sram XX Eagle SL Transmission
CHAINWHEEL
Sram XX SL Eagle Transmission
32 teeth
CRANK
Sram XX SL Eagle Transmission
32 teeth
170 mm-S, 175 mm-M up
FREEWHEEL
Sram XX Eagle SL Transmission
10-52 teeth
12 speed
BOTTOM BRACKET
Sram DUB BSA 73 MTB WIDE
WHEELSET
Reynolds Blacklabel 309/289 XC
110x15 mm width front hub
148x12 mm width rear hub
30/28 mm inner width
Centerlock
Shimano 12 Speed
material: carbon
Tubeless ready (tubeless tape and valves included)
Lifetime warranty
TYRE FRONT
Maxxis Rekon Race
29x2.35"
fold
TR EXO 120 TPI
TYRE REAR
Maxxis Rekon Race
29x2.25"
fold
TR EXO 120 TPI
AXLES
MERIDA EXPERT TR
APPROX. WEIGHT
10.7 kg
MAX. WEIGHT
135 kg
