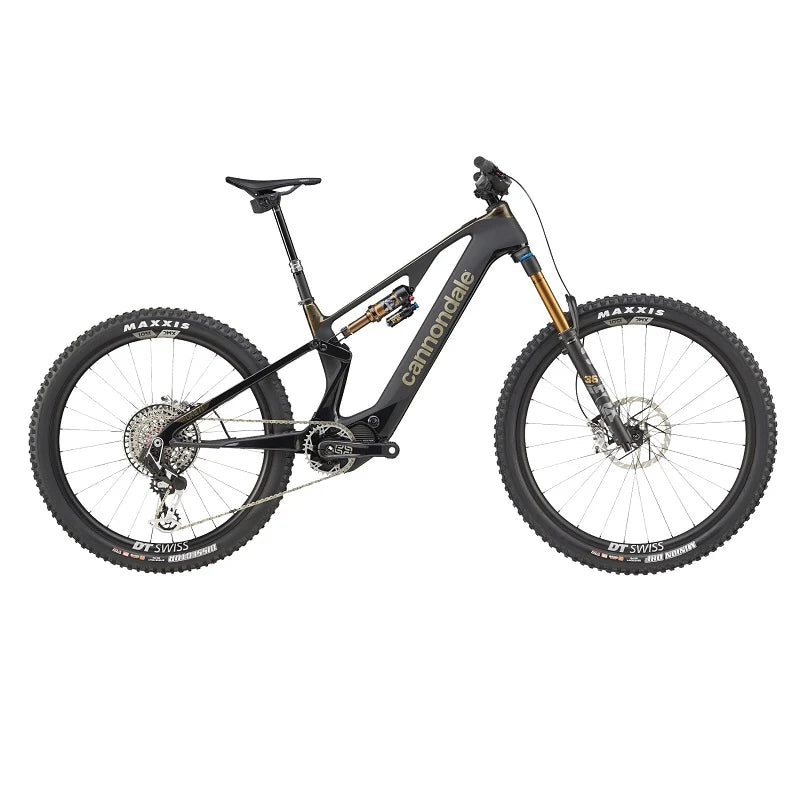

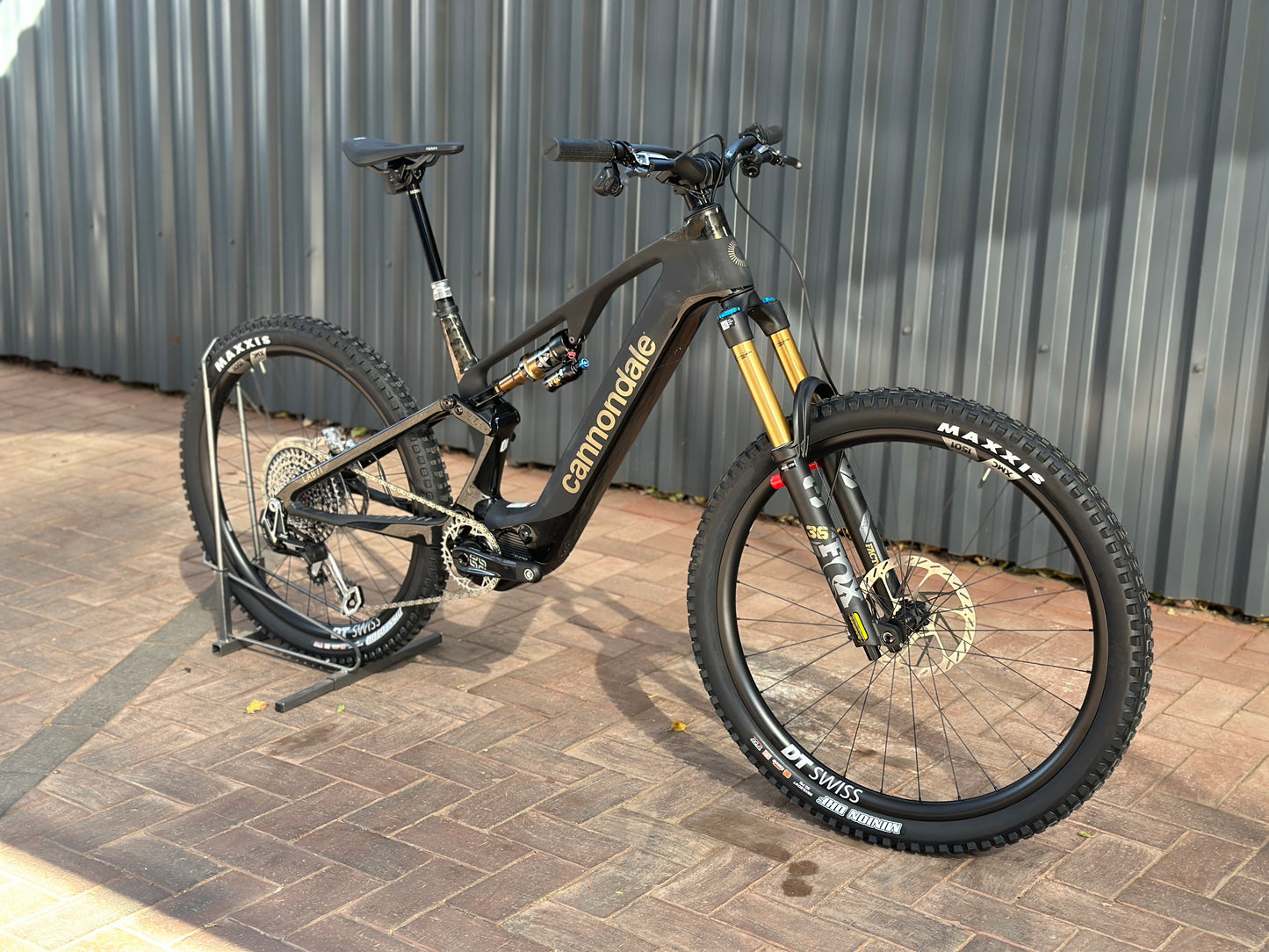

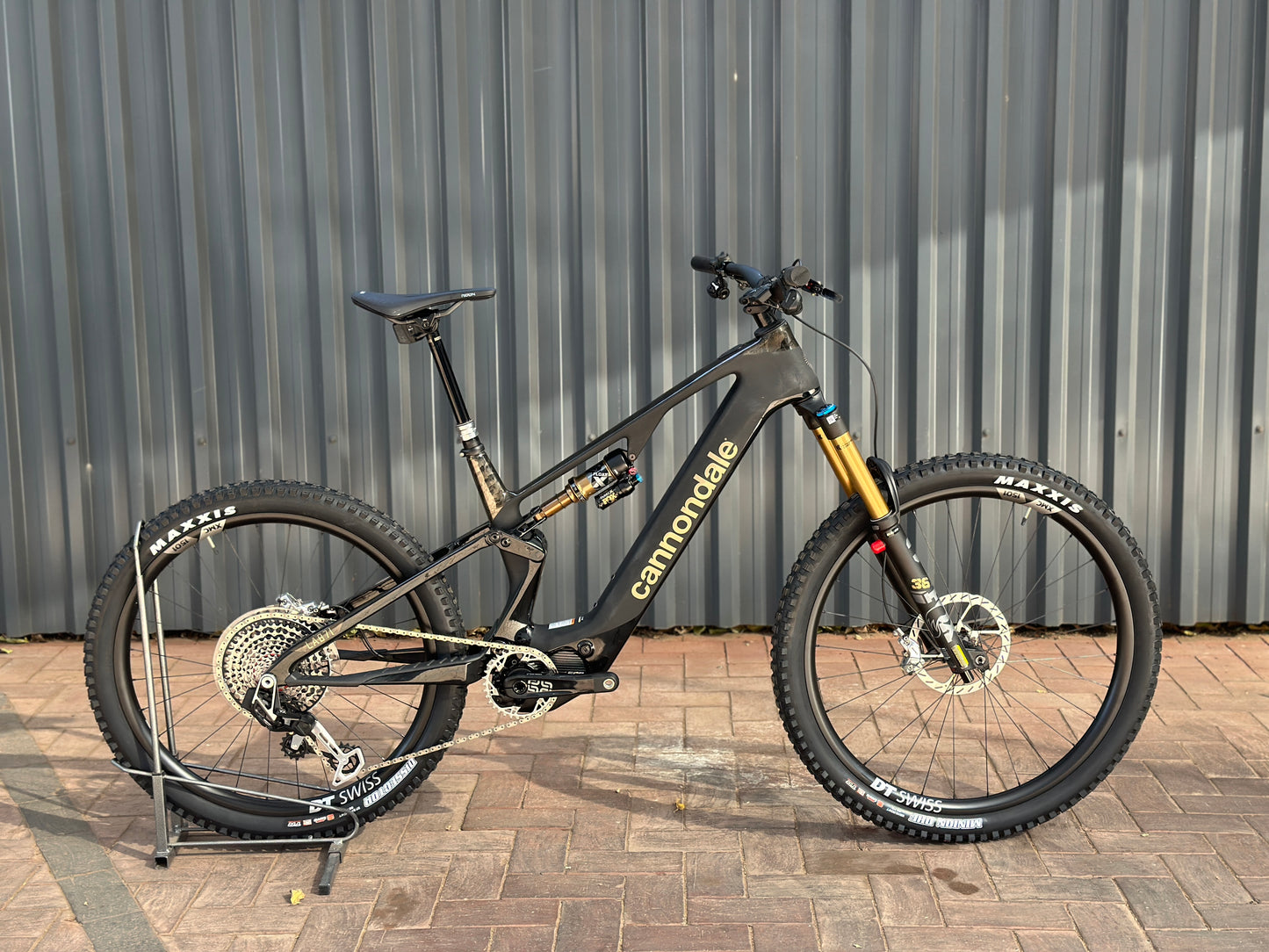

Cannondale Moterra SL LAB71 (2024)
Cannondale Moterra SL LAB71 (2024)
The ultimate lightweight, full power, trail eMTB, with Fox Float Factory suspension, SRAM XX wireless shifting & DT Swiss XMC 1501 carbon wheels.
Frame

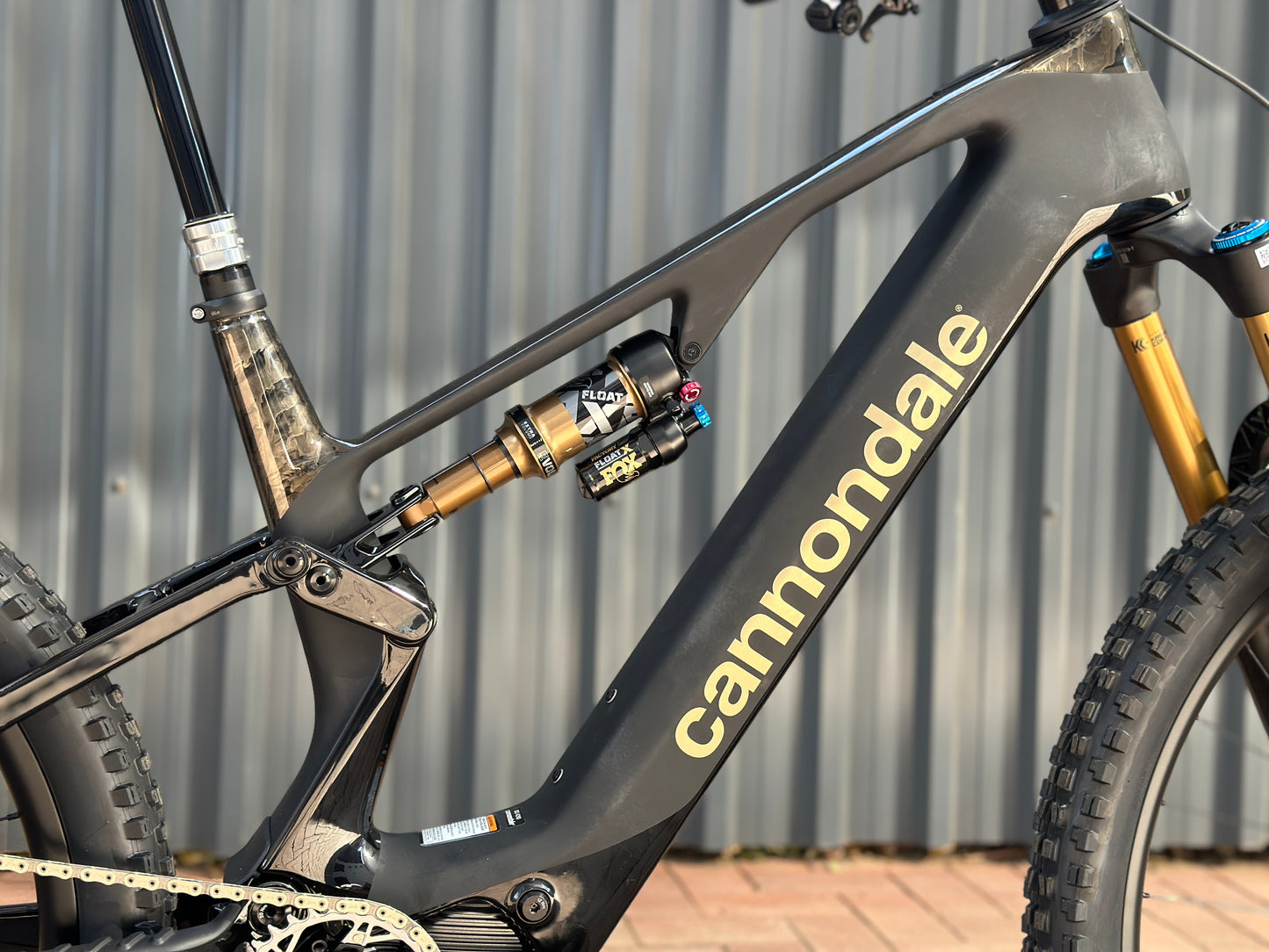

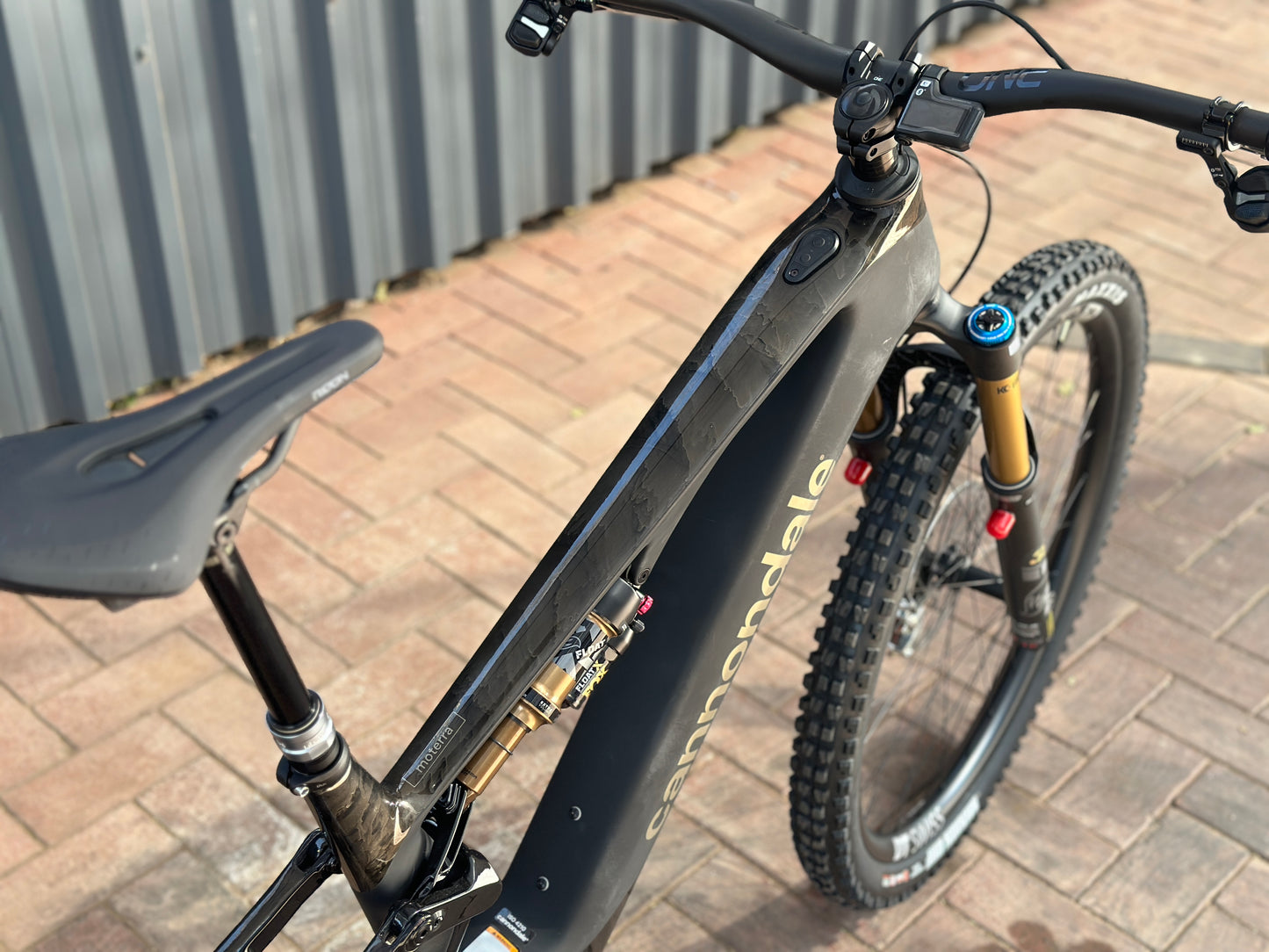

LAB71 Moterra SL, Series 1 Carbon construction, 150mm travel, Proportional Response Tuned Suspension, FlexPivot Chainstay, direct mount internal battery, engineered plastic skid plate, 55mm chainline, DirectLine internal cable routing, 29” FlipChip, 148x12mm Maxle thru-axle, UDH hanger, 200mm native post mount brake, tapered headtube, angle adjust headset
Fork

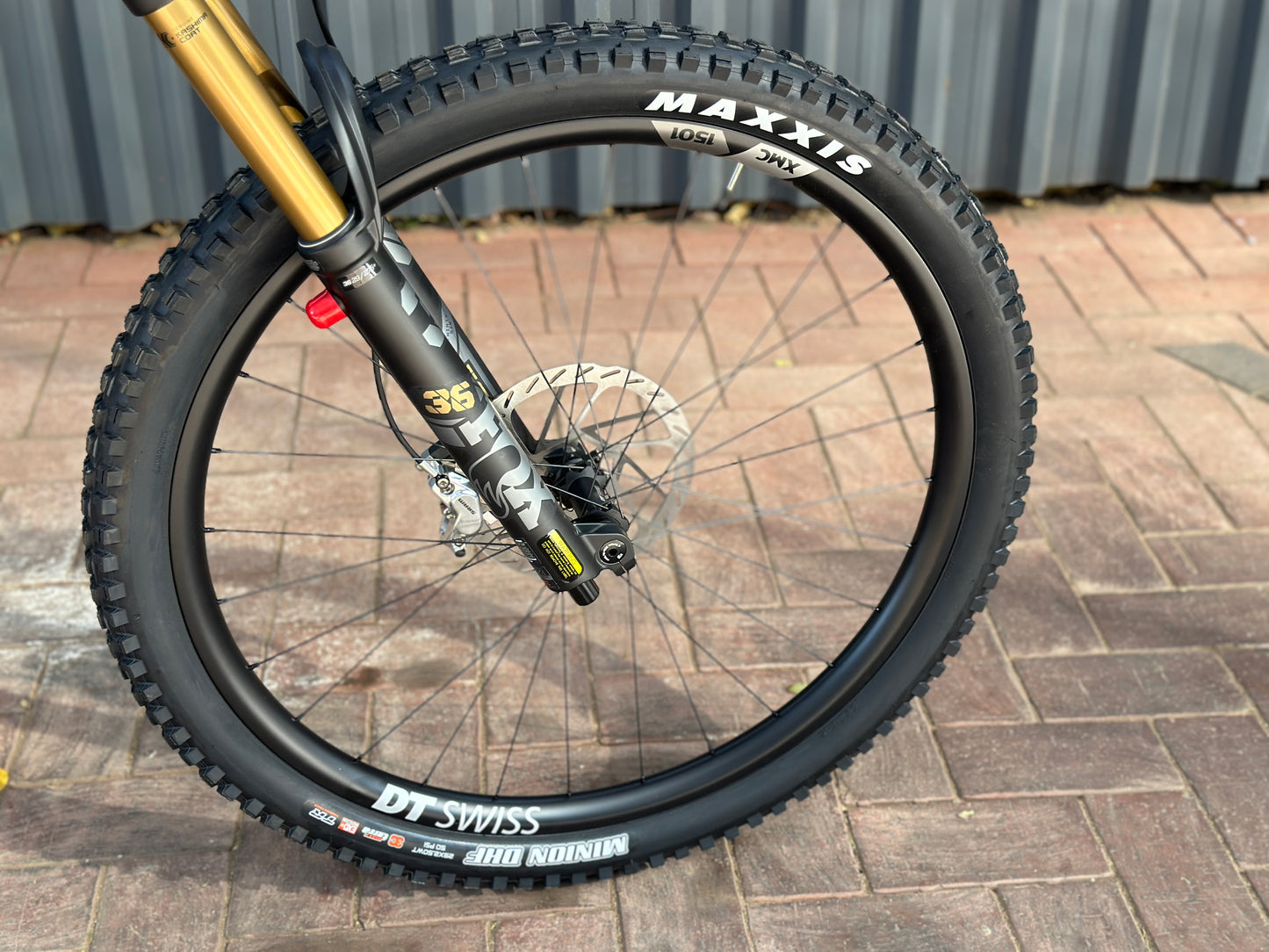

Fox Float Factory 36, 160mm travel, Grip2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
Headset
Acros Adjustable Angle (1.2°)

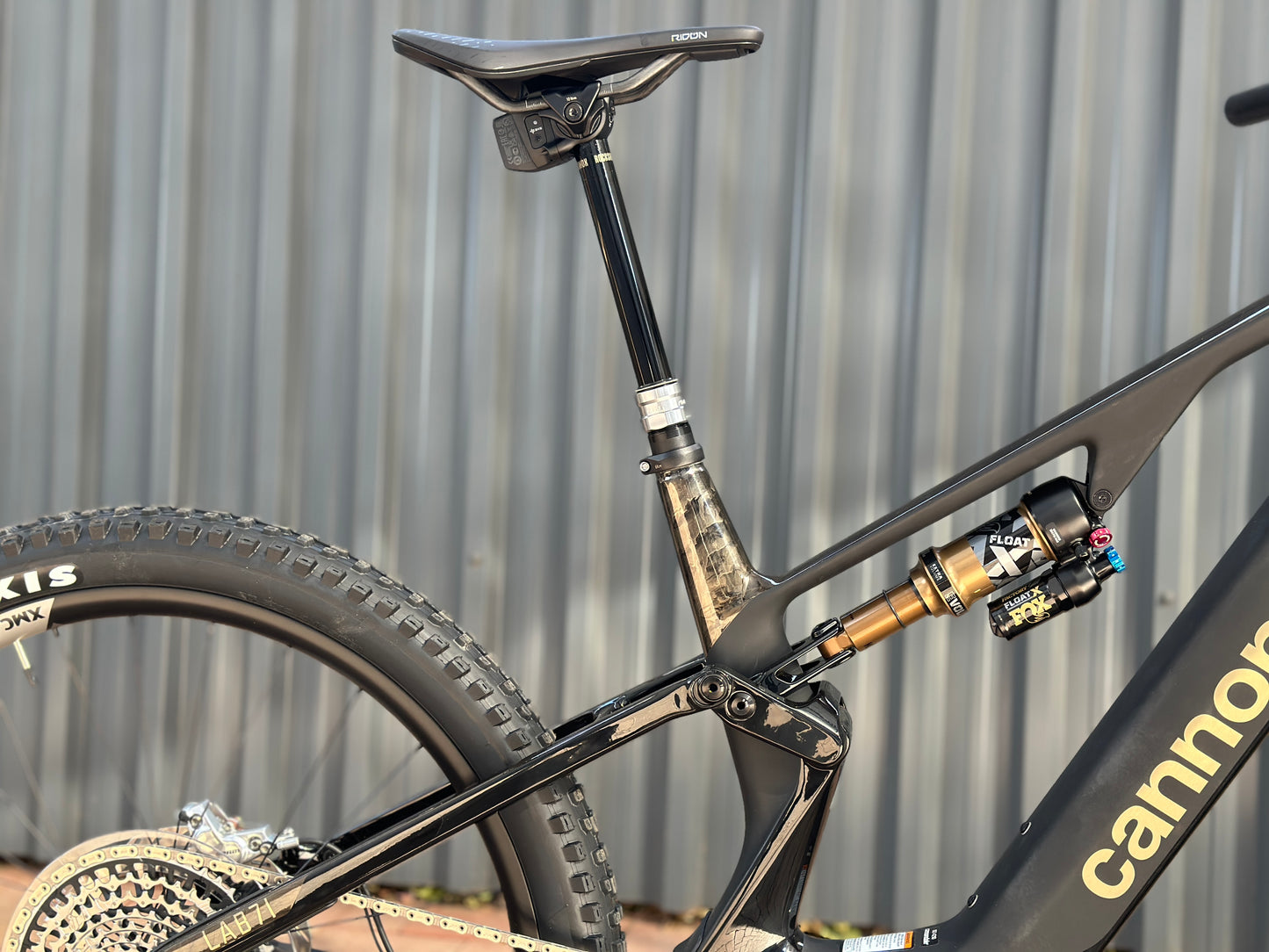

Rear Shock
Fox Float X Factory, 2 pos adj, EVOL LV, 210x55mm
Drive Unit
Shimano EP801, 85Nm, Custom Tuned, Eco, Trail 1, Trail 2, Boost Modes
Battery
Custom 601Wh battery
Charger
Custom 4A
Display
Shimano SC-EM800 Cycle Computer, Bluetooth LE Compatible
Rear Derailleur

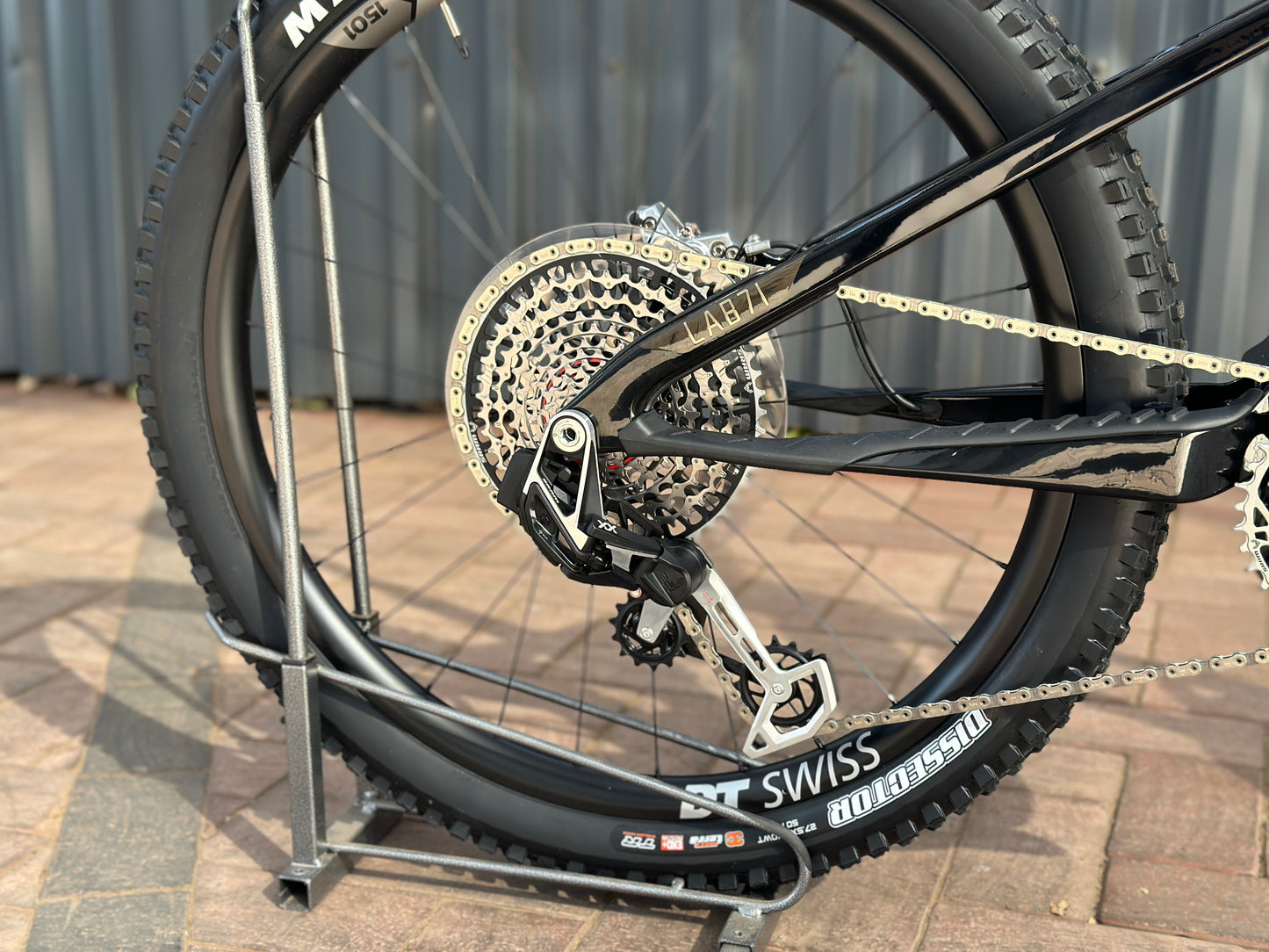

SRAM XX Eagle AXS, T-Type
Shifters
SRAM Eagle AXS T-Type Ultimate Pod Controller
Chain
SRAM XX, T-Type Flattop
Crank

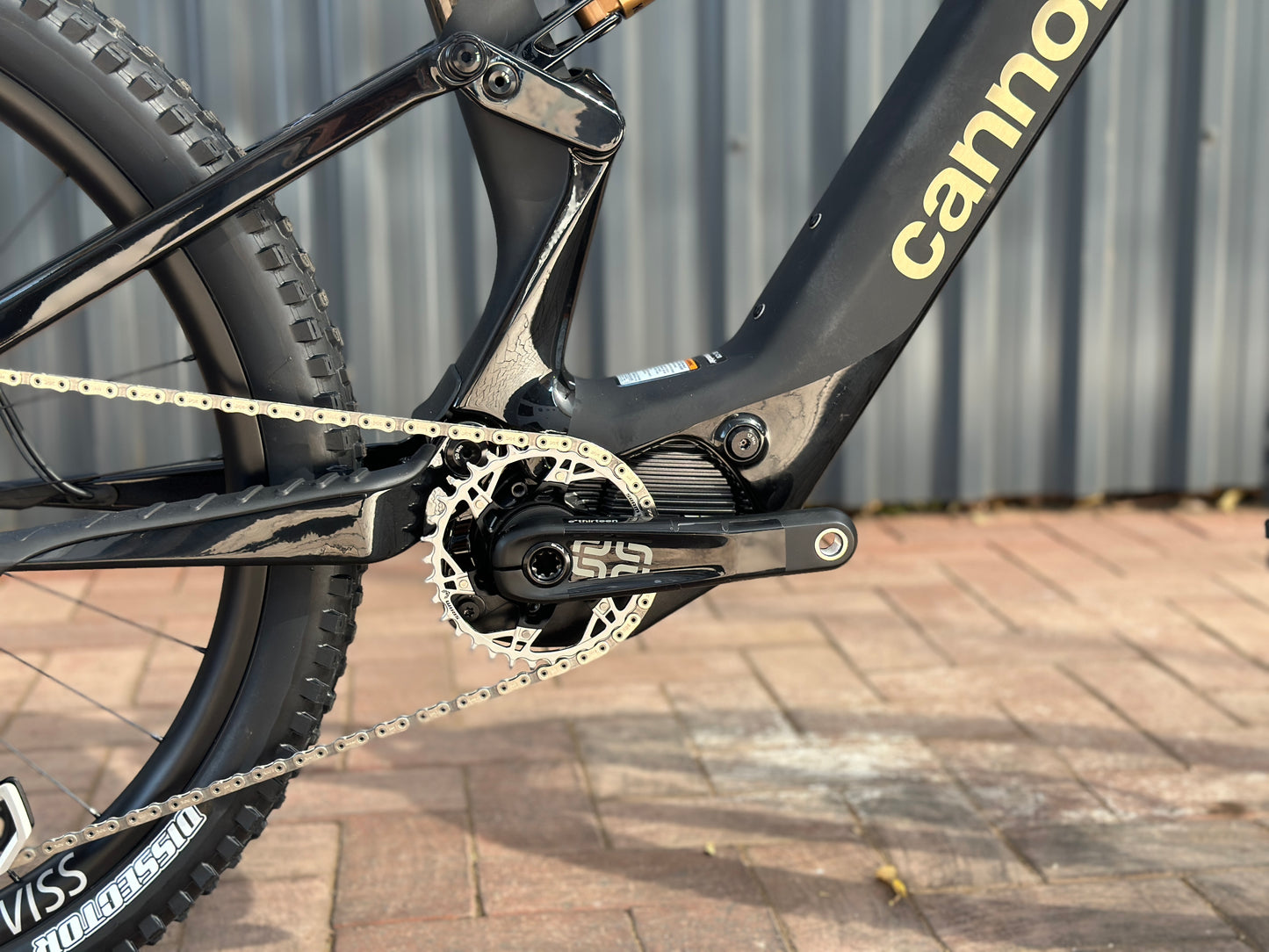

e*thirteen e*spec Race Carbon - Gen 4, 165mm, 34T
Rear Cogs
SRAM XX, T-Type, 10-52, 12-speed
Brakes
SRAM Code Ultimate Stealth, 200mm HS2 rotors
Brake Levers
SRAM Code Ultimate Stealth
Rims
DT Swiss XMC 1501, carbon, 30mm inner width, hookless, TSS tubeless ready
Spokes
DT Swiss Competition Race
Tire Size
2.5
Wheel Size
29
Hubs
(F) DT Swiss 240, 15x110mm / (R) DT Swiss 240 Ratchet EXP 36, 12x148mm
Tires
(F) Maxxis DHF, 29x2.5 ", 3C, EXO+, tubeless ready / (R) Maxxis Dissector , 27.5x2.4", 3C, EXO+, tubeless ready
Handlebar

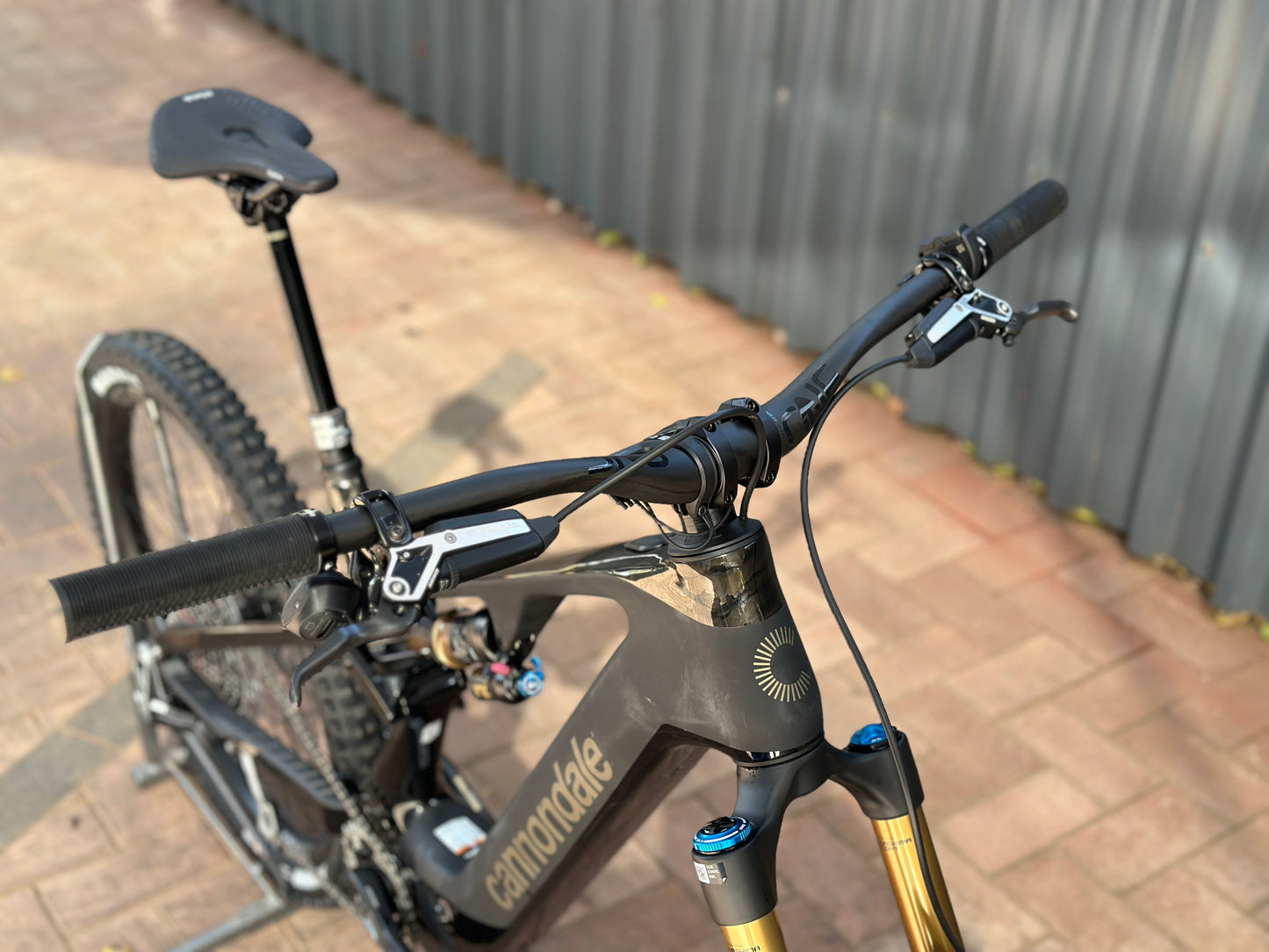

OneUp Carbon Ebar, 35mm clamp, 35mm Rise, 8° sweep, 5° rise, 780mm
Stem
OneUp Stem, 6061 Alloy, 1-1/8", 35mm, 0°
Grips
Cannondale TaperRidge

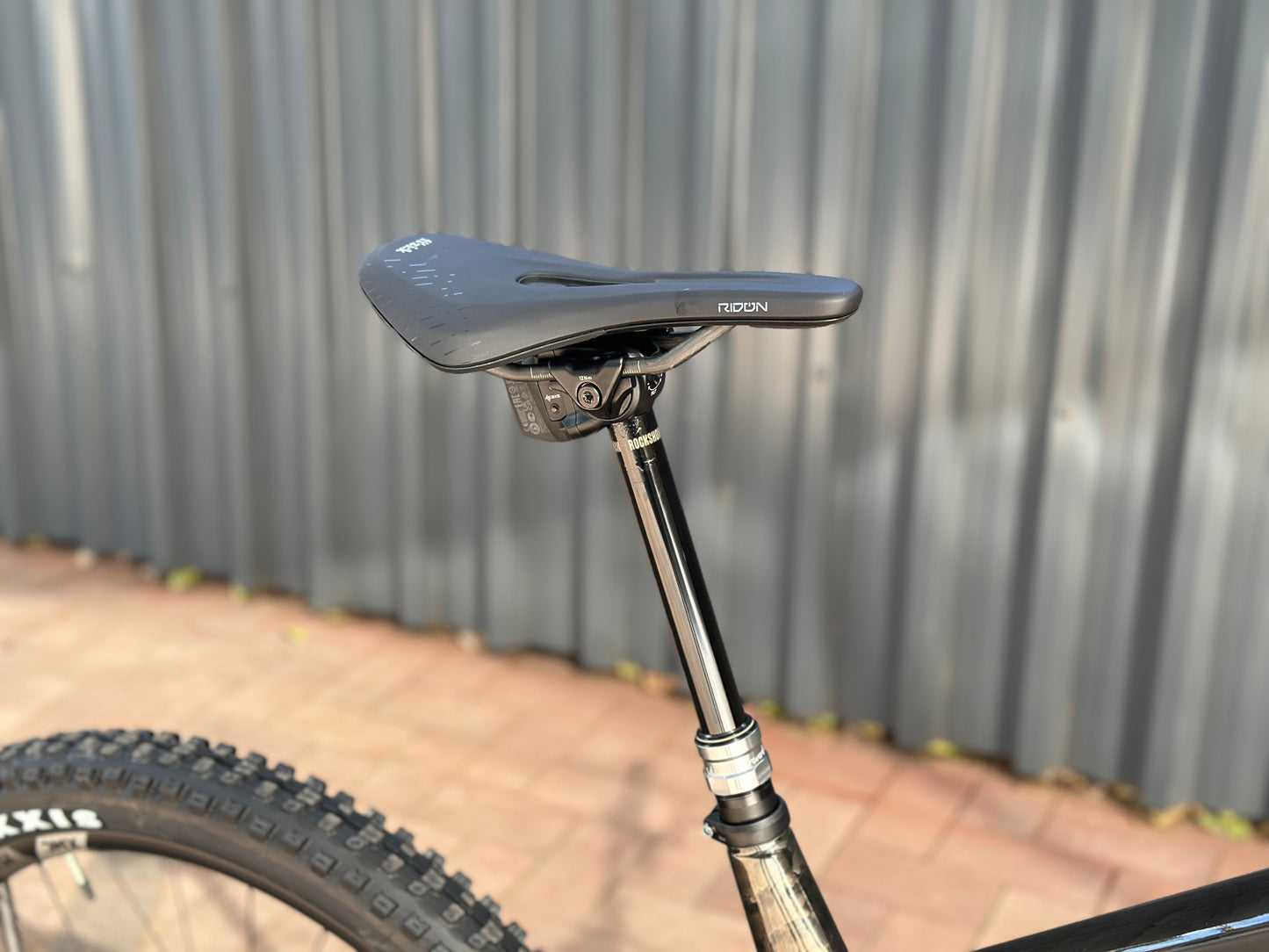

Saddle
Fizik Terra Ridon X1, 145mm, Wingflex, Carbon Mobius rail 7x10mm
Seatpost
RockShox Reverb AXS, 31.6, 150mm (S), 170mm (M-XL)
