Frame
Moterra SL, Series 1 Carbon construction, 150mm travel, Proportional Response Tuned Suspension, FlexPivot Chainstay, direct mount internal battery, engineered plastic skid plate, 55mm chainline, DirectLine internal cable routing, 29” FlipChip, 148x12mm Maxle thru-axle, UDH hanger, 200mm native post mount brake, 1-1/8” – 1.5” tapered headtube, angle adjust headset

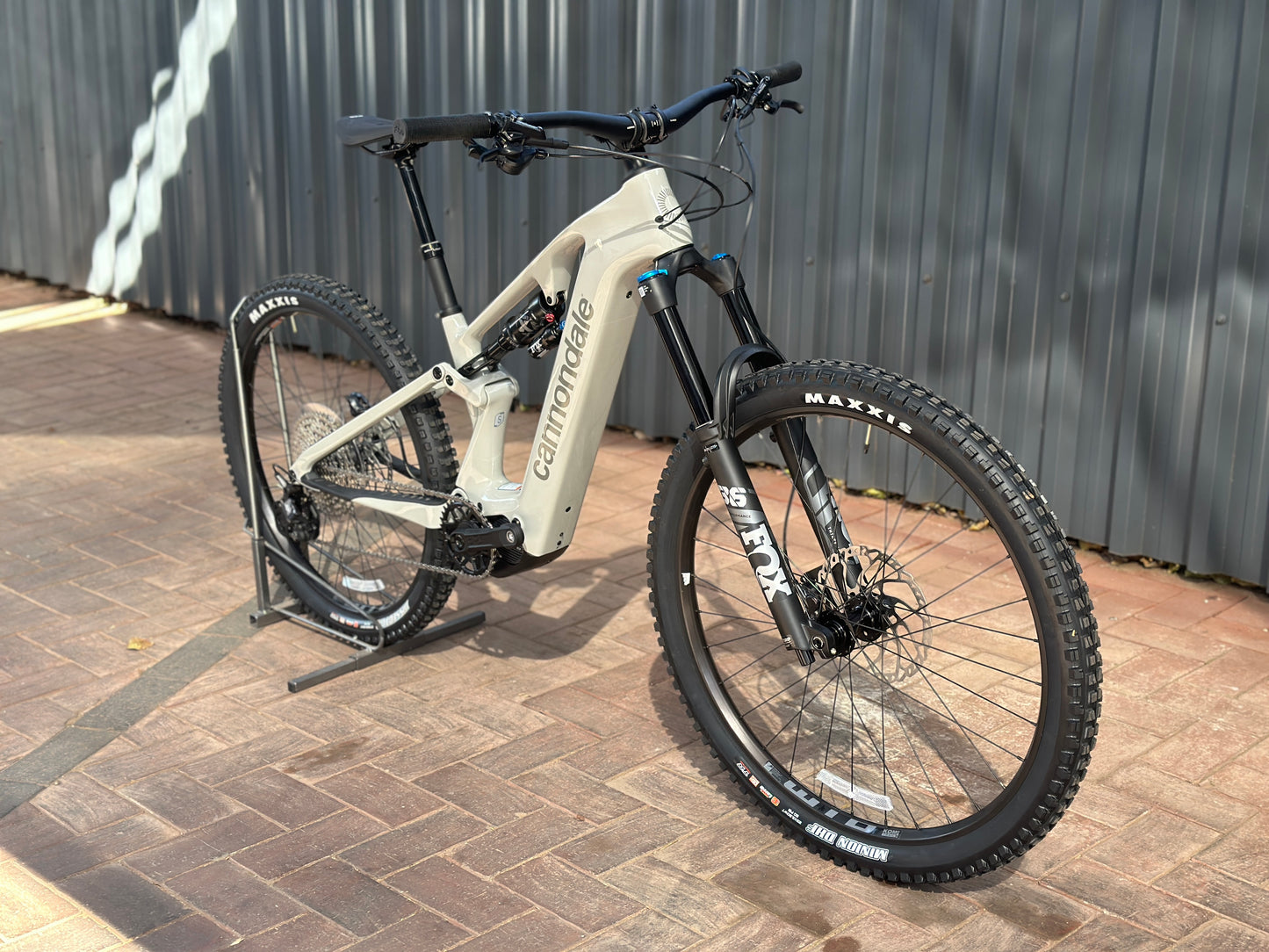

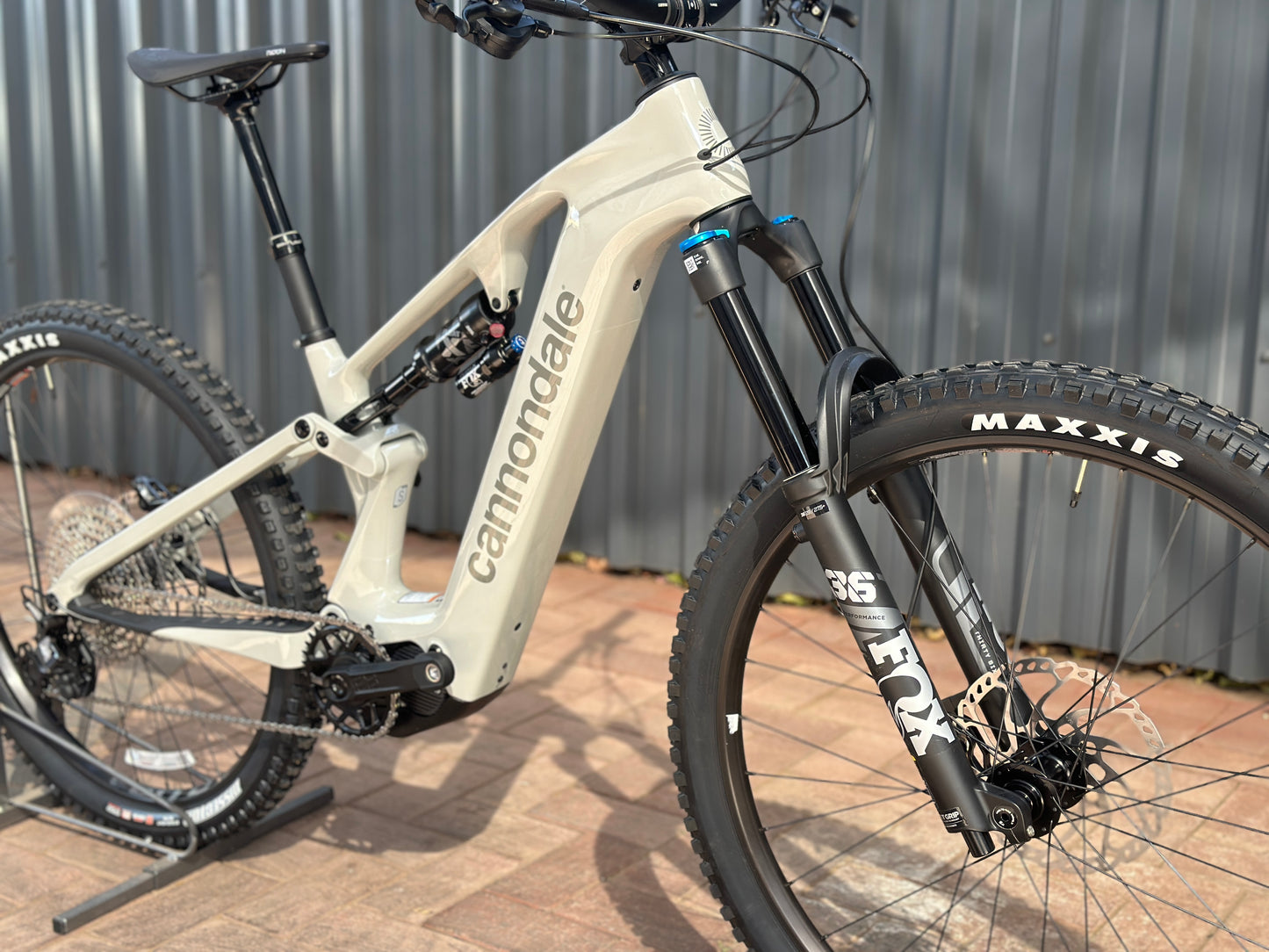

Fork
Fox Performance 36, 160mm travel, Grip Damper, 3-position adjust, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
Headset
Acros Adjustable Angle (1.2°)

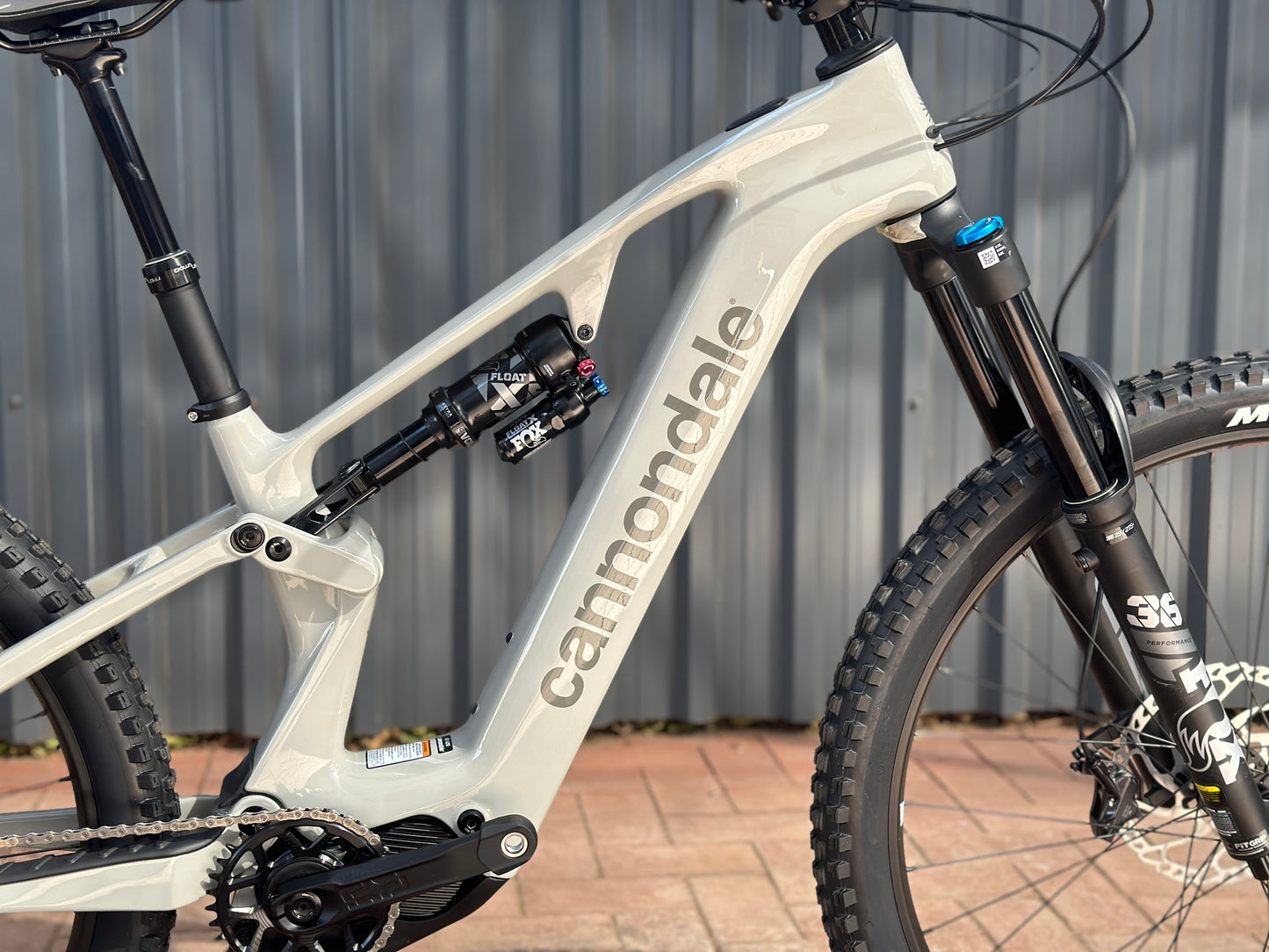

Rear Shock
Fox Float X Performance Elite, 2 pos adj, EVOL LV, 210x55mm
Drive Unit
Shimano EP801, 85Nm, Custom Tuned, Eco, Trail 1, Trail 2, Boost Modes
Battery
Custom 601Wh battery
Charger
Custom 4A
Display
Shimano SC-EM800 Cycle Computer, Bluetooth LE Compatible

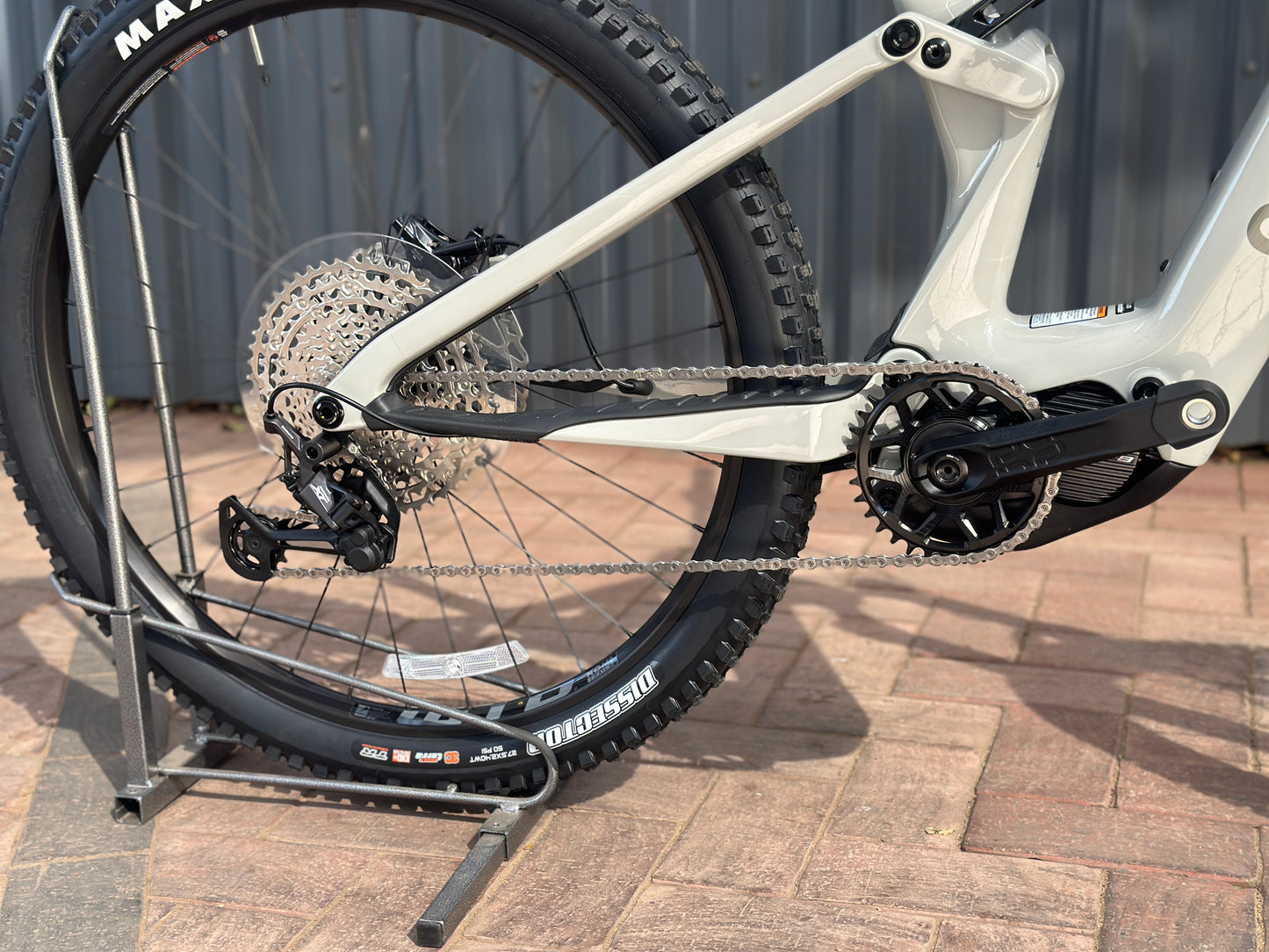

Rear Derailleur
Shimano XT
Shifters
Shimano Deore M6100, 12-speed
Chain
Shimano Deore 6100, 12-speed
Crank
e*thirteen e*spec Plus, 165mm, 34T
Rear Cogs
Shimano Deore 6100, 10-51, 12-speed
Brakes
Magura MT5 4-piston hydraulic disc w/ Storm HC 203mm, 6-bolt rotors
Brake Levers
Magura MT5 hydraulic disc
Rims
WTB KOM Tough i30, 30mm inner width, TCS tubeless ready
Spokes
DT Swiss Champion
Tire Size
2.6
Wheel Size
29
Hubs
(F) Formula DC-71132h, 15x110mm / (R) DT Swiss 370 Hybrid, 32h, 12x148mm
Tires
(F) Maxxis DHF, 29x2.5 ", 2C, EXO, tubeless ready / (R) Maxxis Dissector , 27.5x2.4", 2C, EXO, tubeless ready

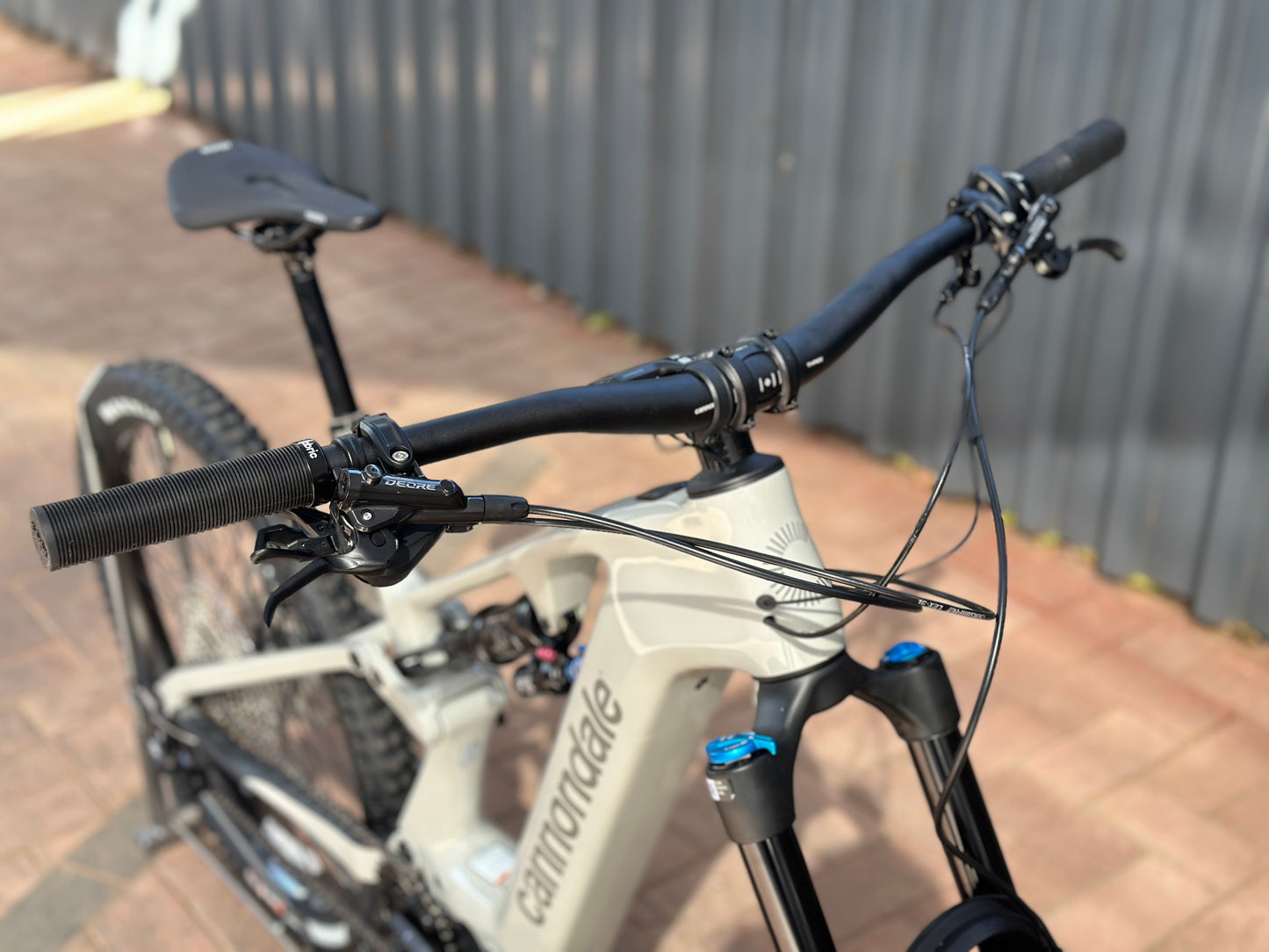

Handlebar
Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm
Stem
Cannondale 1, 7075 Alloy, 1-1/8", 35mm, 0°
Grips
Cannondale TaperRidge
Saddle
Fizik Terra Ridon X5, 145mm, Wingflex, S-Alloy Mobius rail 7x7mm
Seatpost
Cannondale DownLow Dropper, internal routing, 31.6, 150mm (S), 170mm (M-XL)
