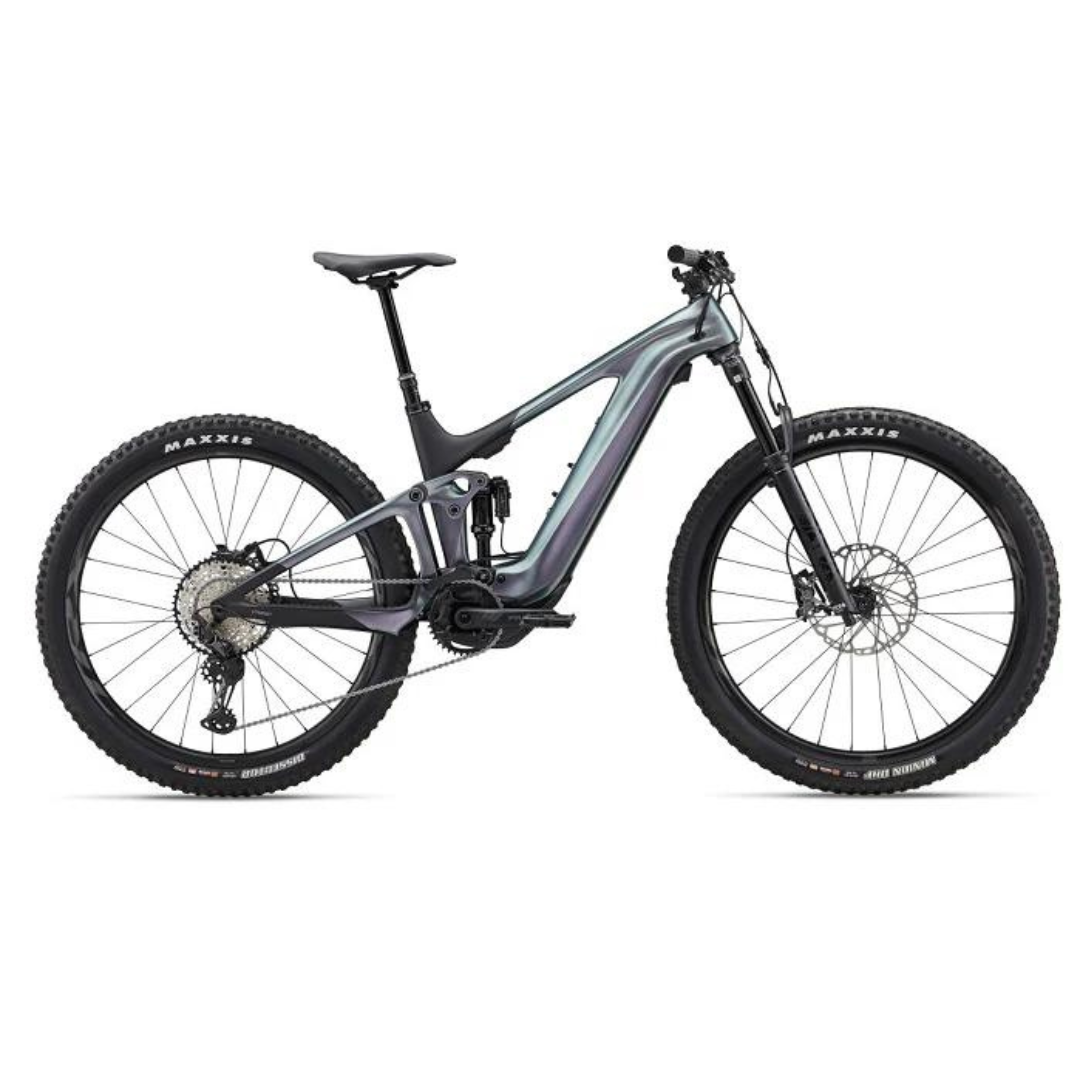

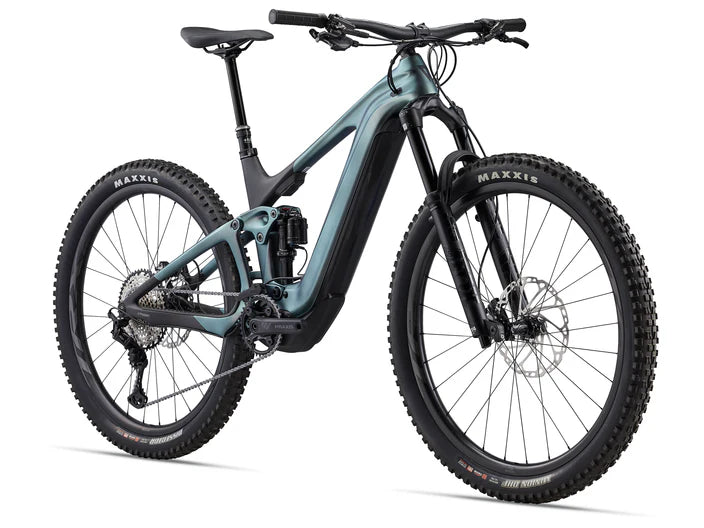

2023 Giant Trance X Advanced E+ 1

A new breed of trail bike that blends power, performance and flat-out fun. With its lightweight composite frame, plush suspension and new motor technology, you’ll never want the ride to end.

KEY PERFORMANCE FACTORS

Powerful and responsive
SyncDrive Pro motor with 85Nm of torque creates powerful pedalling assistance even at low speeds. Lightweight, stiff Advanced-grade composite frame with 140mm of Maestro rear suspension travel and 150mm up front delivers confident handling and control on rough trails.

Adaptable to the terrain
Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.

Clean cockpit
RideControl Go top tube integrated multi-function on/off button and RideControl Ergo 3 handlebar-mounted remote, which can be mounted on either grip, offer user-friendly controls and an uncluttered cockpit design.

Specifications:

Motor: SyncDrive Pro, 85Nm, powered by Yamaha
Controller: RideControl Ergo 3, grip integrated
Display: RideControl GO, frame integrated LED display ANT+ Wireless display compatible
Battery: EnergyPak Smart 800, EnergyPak Plus range extender compatible
Sizes: S, M, L, XL
Colours: Airglow
Frame: Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
Fork: Fox 36 Live Valve, 150mm travel, 44mm offset, Grip2 damper, Boost 110x15QR, electronic adaptive suspension, e-bike integrated, e-bike integrated
Shock: Fox Float X Live Valve, 185x52.5mm Trunnion mount, electronic suspension, e-bike integrated
Handlebar: Giant Contact SL 35
Grips: Giant Tactal Pro-E, single lock-on
Stem: Giant Contact SL 35
Seatpost: Tranz-X Rad+ travel adjust dropper, dropper
Saddle: Giant Romero, Neutral
Pedals: Flat pedals
Shifters: Shimano Deore XT
Front Derailleur: MRP HD2 co-moulded chain guide
Rear Derailleur: Shimano Deore XT, 12-speed, Shadow+
Brakes: Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 220mm
Brake Levers: Shimano Deore XT, I-spec EV
Cassette: Shimano CS-M7100, 10-51T, 12-speed
Chain: KMC e.12 Turbo, EcoProteq, e-bike optimized
Crankset: Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set
Bottom Bracket: N/A
Rims: e-TRX Hookless Clincher, 29", 30mm inner width
Hubs: e-TRX 6 Bolt, Shimano Micro-spline, 110 x 15 [F], 148 x 12 [R] Thru Axle
Tires: Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R]
Extras: Tubeless kit (liquid, valves, levers)
Lock: Torx 25 Battery Lock with built-in Torque limiter
