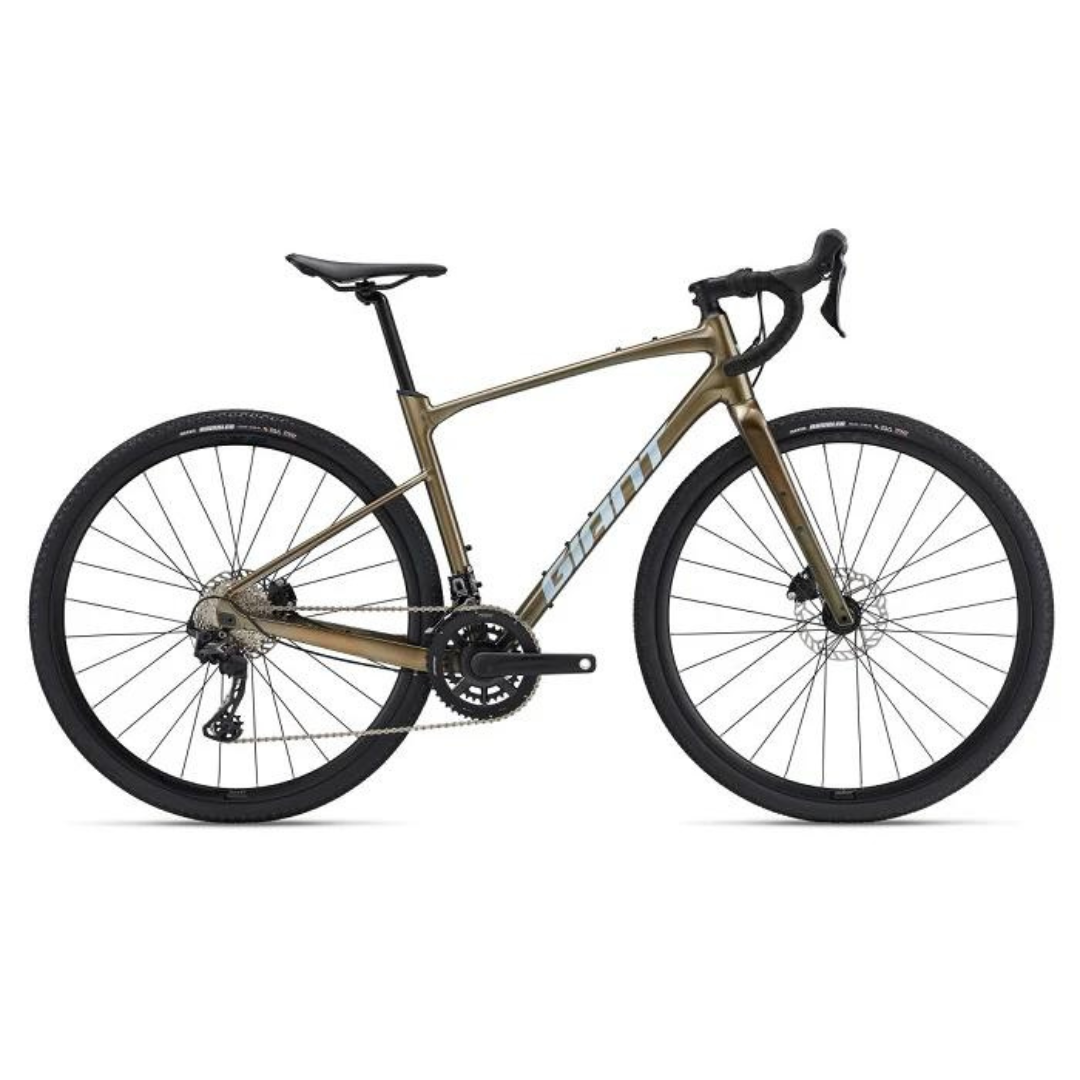

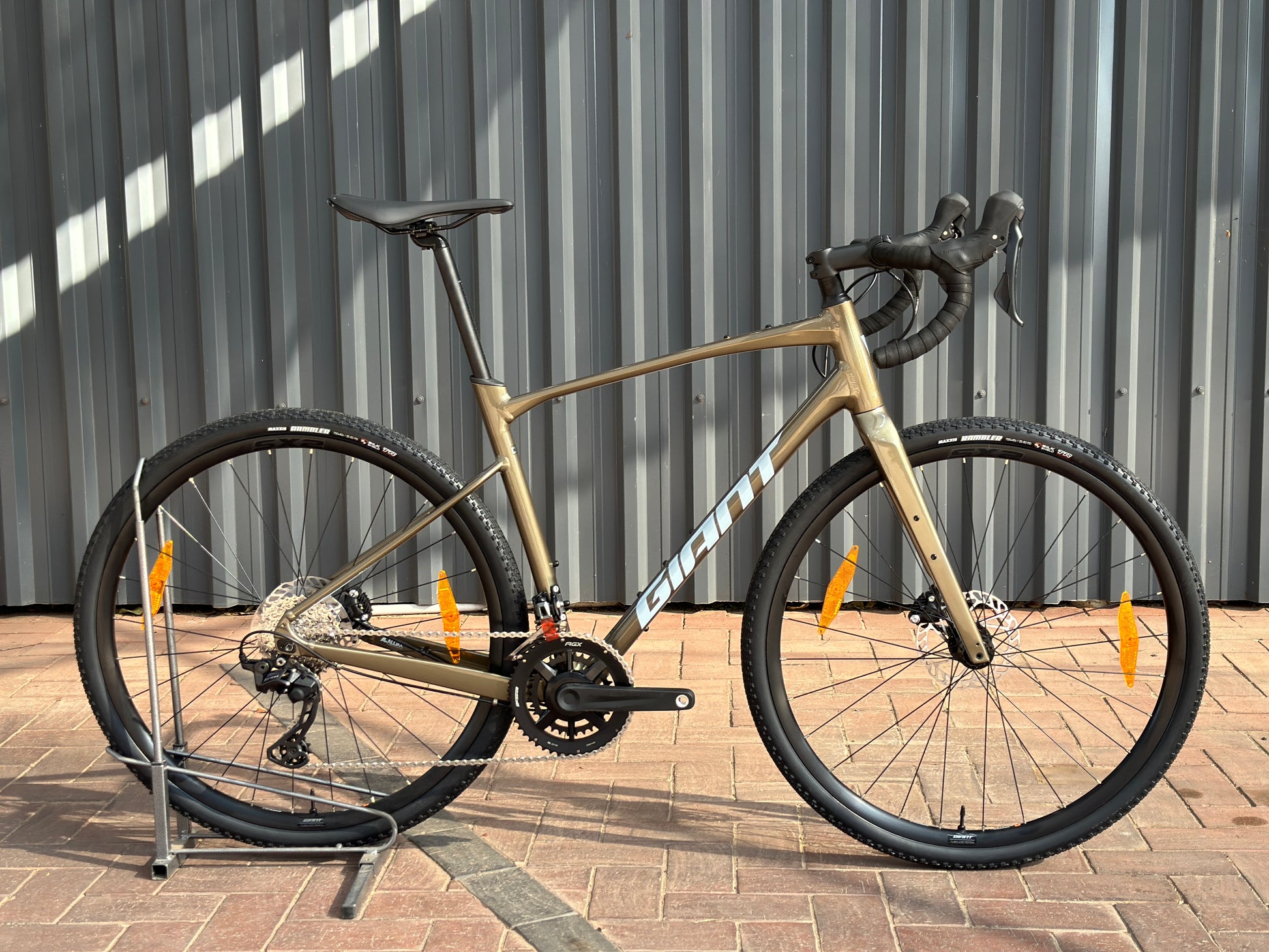

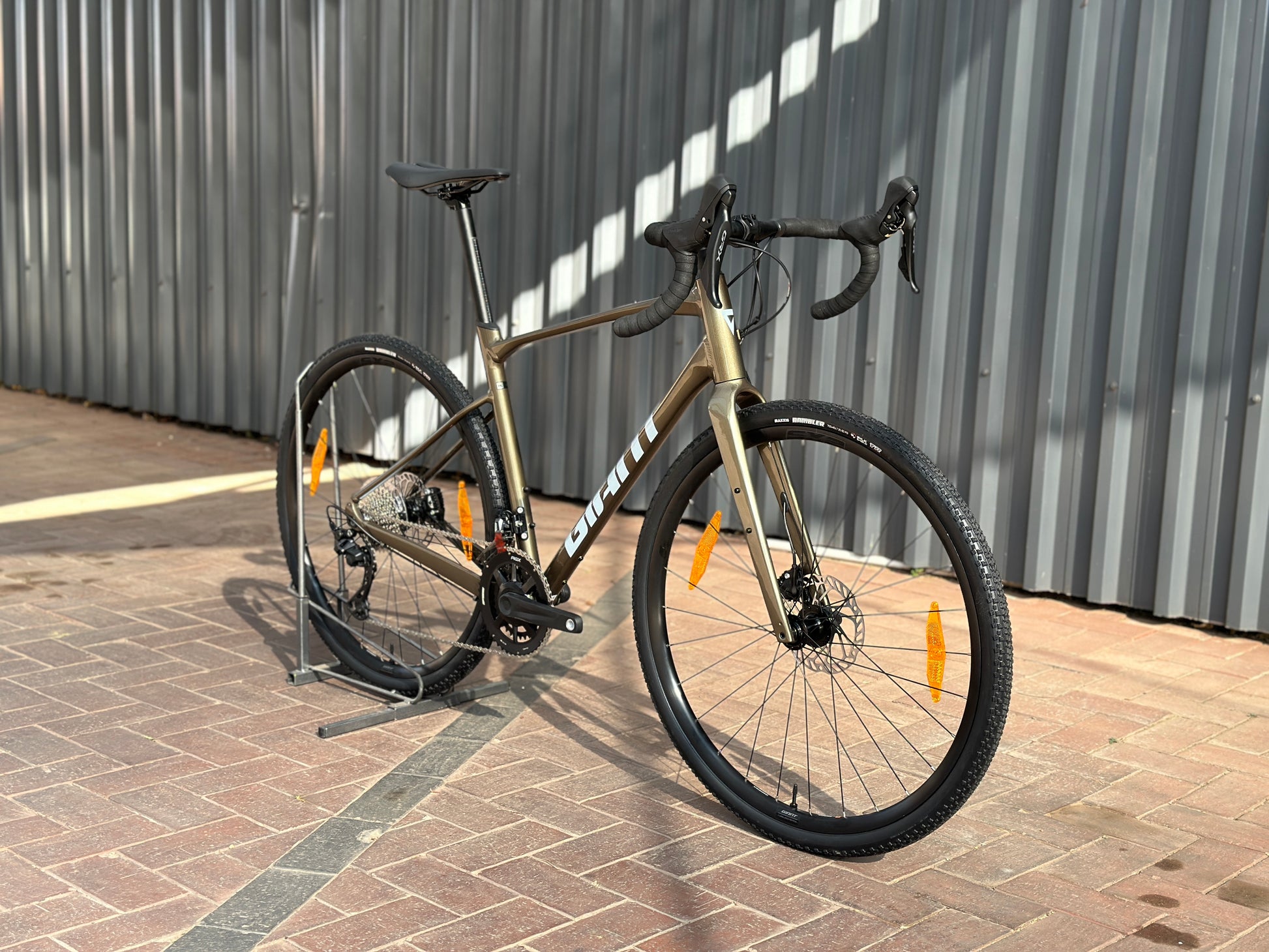

2024 Giant Revolt 0 Alloy

Confident Handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned Compliance

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable To The Terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Components:
Colors: Pyrite Brown

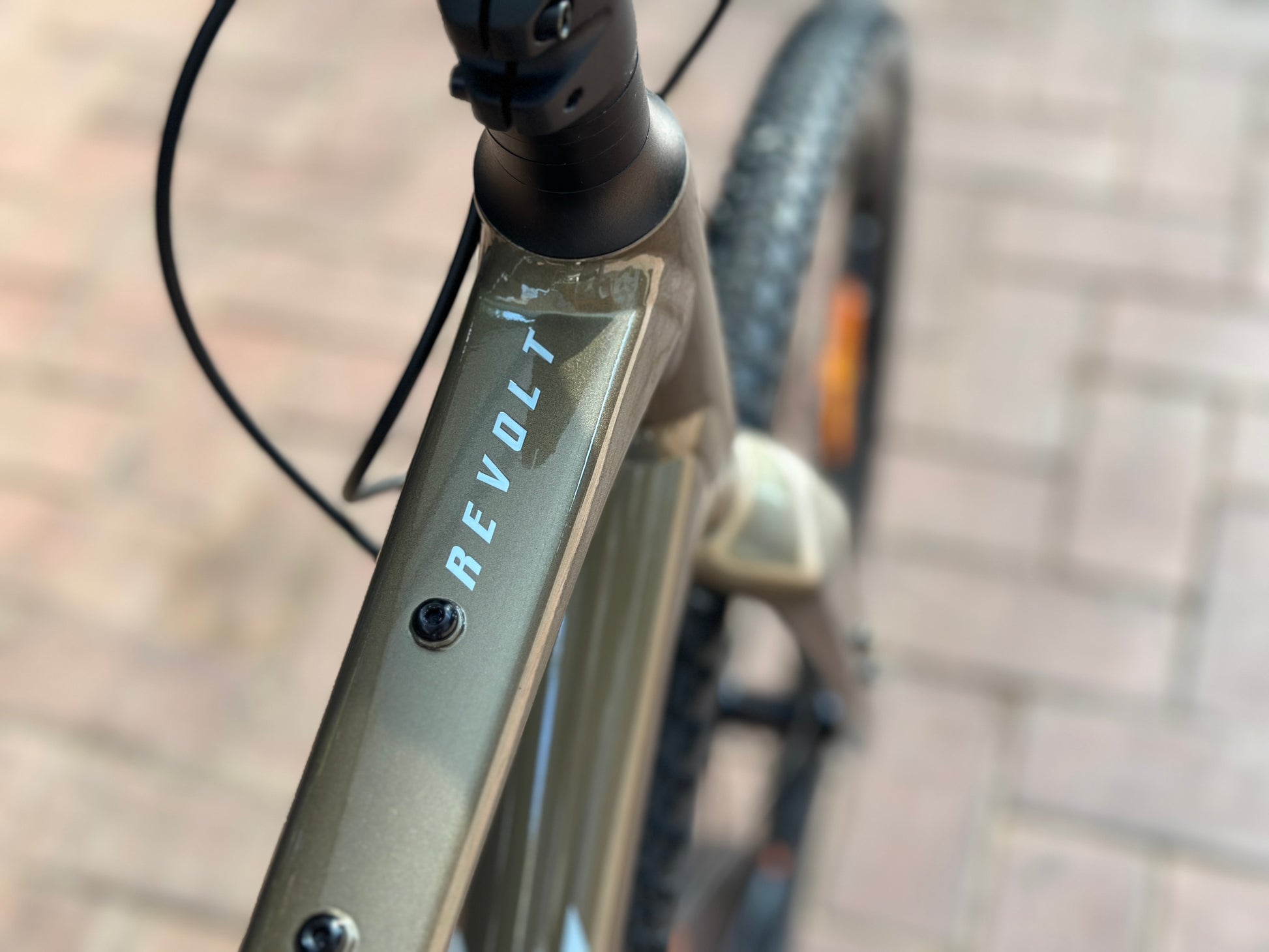

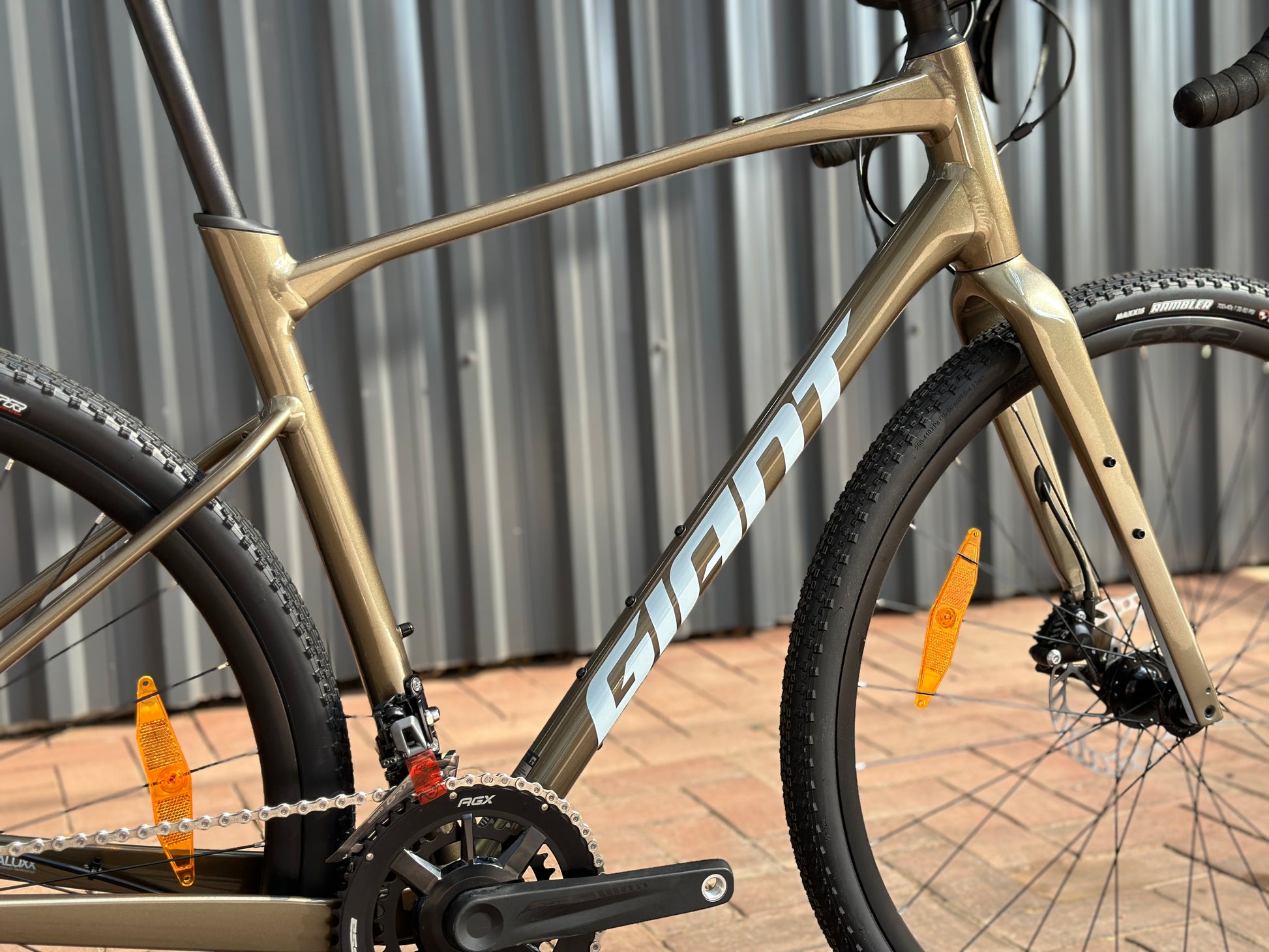

Frame: ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout
Fork: Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

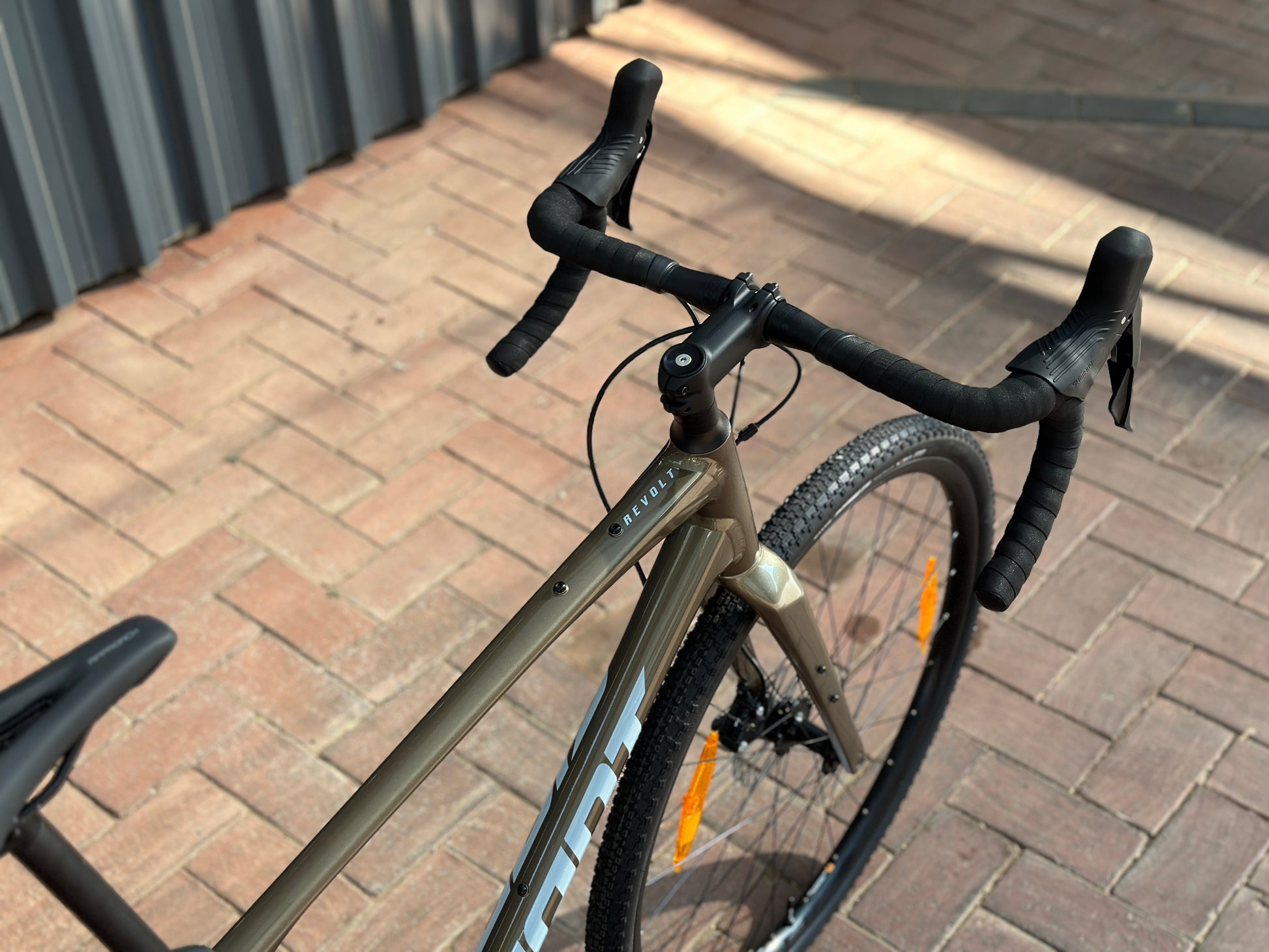

Handlebar: Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips: cork tape with gel
Stem: Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost: Giant D-Fuse, alloy, 14mm offset
Saddle: Giant Approach
Shifters: Shimano GRX RX-610, 2x12
Front Derailleur: Shimano GRX RX-820
Rear Derailleur: Shimano GRX RX-820
Brakes: Shimano BR-RX410 HRD, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers: Shimano GRX RX-610 hydraulic
Cassette: Shimano 105, 11x34
Chain: KMC X12L-1

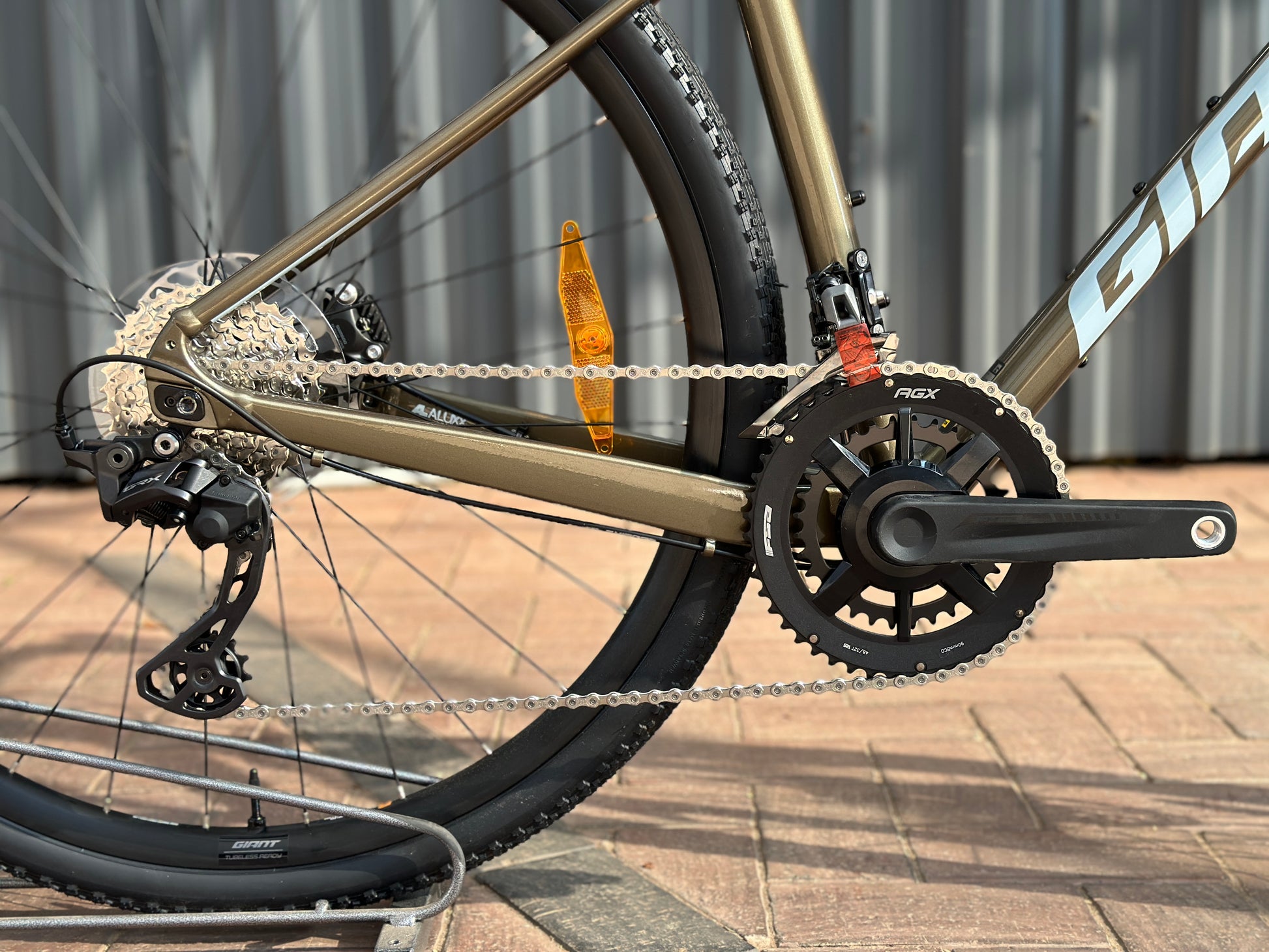

Crankset: FSA Omega Modular AGX+, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket: FSA Mega EXO
Rims: Giant S-X2 Disc wheelset, alloy

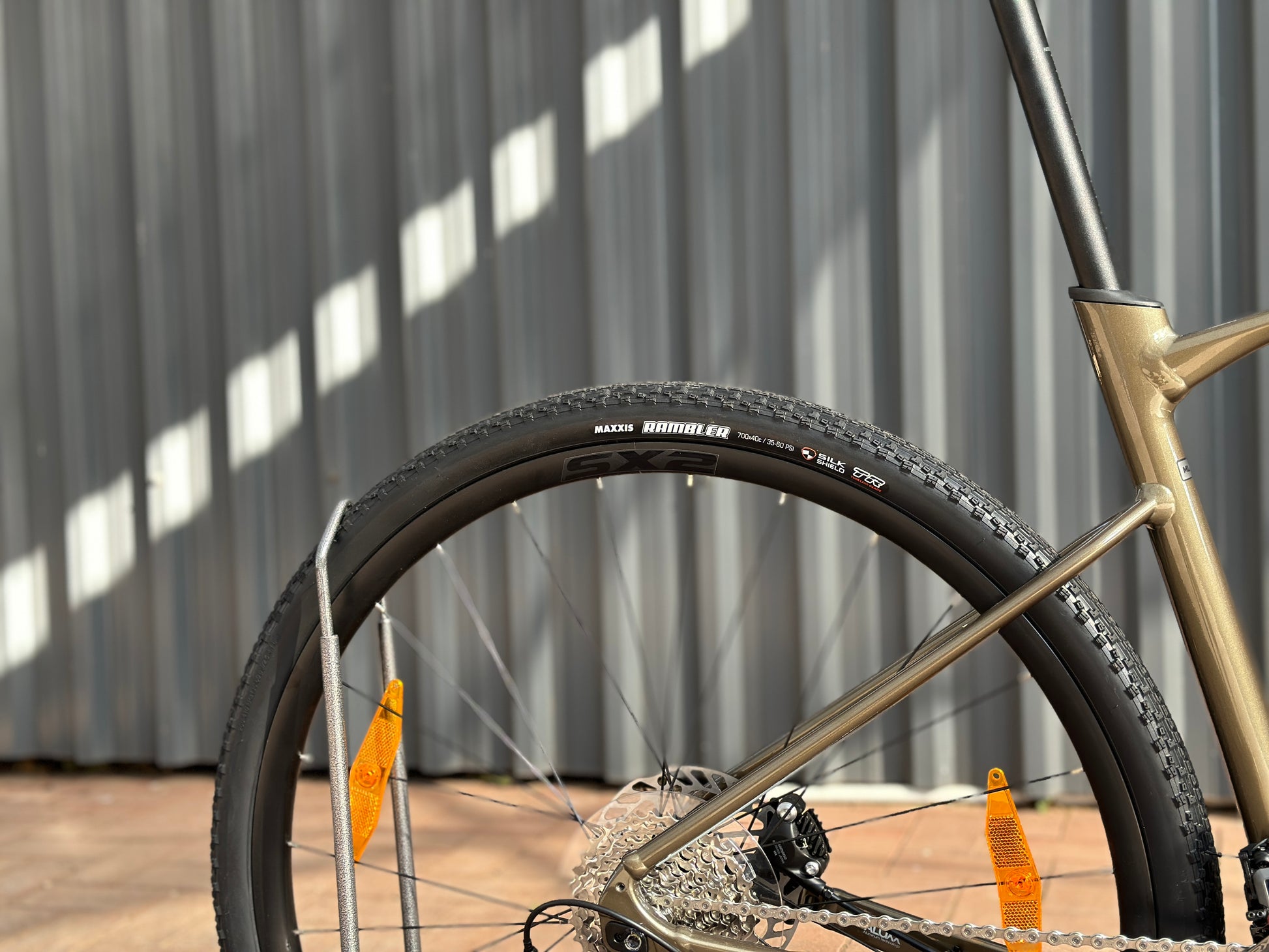

Tires: Maxxis Rambler/Ravager, 700x40c, tubeless
Extras: tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
