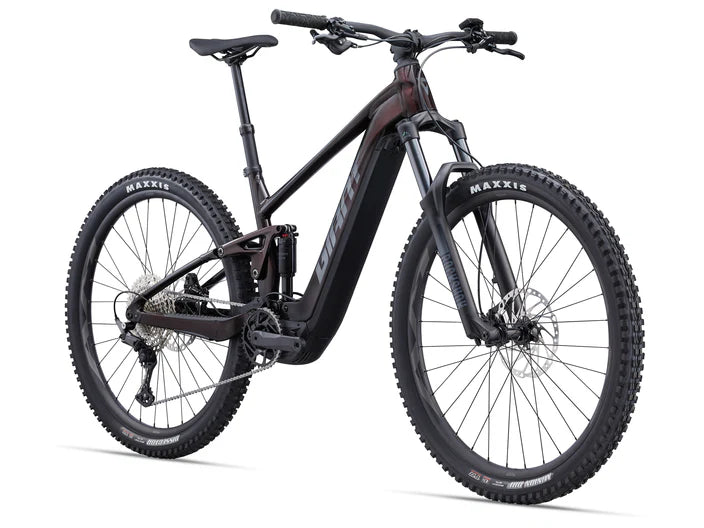

2023 Giant Stance E+ Pro 1 29er
2023 Giant Stance E+ Pro 1 29er
Size Guide:
Small: 163cm-172cm
Medium: 171cm-180cm
Large: 179cm-188cm
Extra Large: 187cm-198cm
Ride trails with confidence, control and flat-out fun. This new E-bike has a powerful motor, plush suspension, and intuitive controls that can take your trail adventures to a whole new level.
Powerful pedaling support
The SyncDrive Pro motor with 85Nm of torque and 400 percent tunable support helps riders climb steep, rugged trails with greater ease. A large 800wH battery ensures there is enough range for the longest of rides.
Confident handling
ALUXX SL aluminum frame with 125mm travel FlexPoint rear suspension and larger diameter 29-inch wheels produces a smooth, stable ride on technical trails.
Long-lasting fun
The new EnergyPak 800wH offers the longest possible range. The integrated battery pack makes charging quick and easy.
Key Specifications:
Motor: SyncDrive Pro, 85Nm, powered by Yamaha
Controller: RideControl Dash
Display: RideControl Dash, full color lcd screen
Battery: EnergyPak Smart 800, EnergyPak Plus 250Wh range extender compatible
Sizes: S, M, L, XL
Colors: Cordovan
Frame: ALUXX SL-grade aluminum, 125mm travel FlexPoint suspension system, 148x12 rear axle, Universal Derrailleur hanger, 184x44 shock, 1.5~1.8" headset
Fork: RockShox 35 Silver, 140mm, 1.8" tapered steerer, 110x15 Maxle Stealth
Shock: SR Suntour Raidon R, 190x45mm, custom tuned
Handlebar: Giant Connect TR Riser 31.8x780mm
Grips: Giant Tactal single lock-on
Stem: Giant Contact
Seatpost: Giant Contact Switch, dropper, 30,9mm (S:125/M:150/ L&XL:170)
Saddle: Giant Sport
Pedals: Flat pedal
Shifters: Shimano Deore
Rear Derailleur: Shimano Deore 12-speed
Brakes: Tektro HD-M750 Orion, 4-piston, hydraulic disc, 203mm
Brake Levers: Tektro HD-M750
Cassette: Shimano CS-M6100-12, 10-51T, 12-speed
Chain: KMC e.12 Turbo, EcoProteq, e-bike optimized
Crankset: FSA Comet E-Bike crank arm setFSA MegaTooth Direct-mount 1X steel 36T
Bottom Bracket: n/a
Rims: Giant AM 29", Tubeless ready, 30mm inner width
Hubs: Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
Spokes: Sapim E-Lite [R] Race [F], e-bike optimized
Tires: Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO, 60TPI [F]Maxxis Dissector 29X2.40" Foldable, WT, TLR, EXO, 60TPI [R]
Extras: Tubeless kit (liquid, valves, levers, manual, tool)
Lock: Torx 25 Battery Lock with built-in Torque limiter
